Connexta™ | Every Connection Counts

Built for Trucks. Trusted in Transit.

Connexta™ by Hanstens powers a new generation of truck tank connection components. It is purpose-built to handle fuel, vapors, and hydraulics with speed and certainty.

Each component is designed for durability, leak prevention, and seamless integration. Connexta™ helps operators streamline fueling, venting, and pressure control under real-world field conditions.

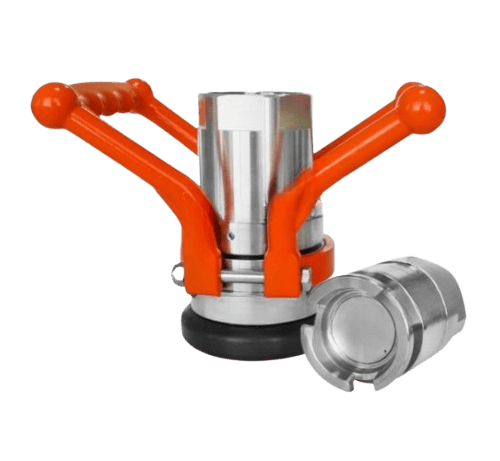

Connexta™ ZeroLeak

Rotary Dry-Break Coupler

• Application: LPG, propane, liquid gas transfer systems

• Material: SS304 Stainless Steel

• Working Pressure: Up to 25 bar

• Connection Type: BSP or NPT Thread (1" to 6")

• Sealing: FPM (Viton®)

• Features: Rotary screw-lock connection, vapor-tight sealing, designed for gas applications

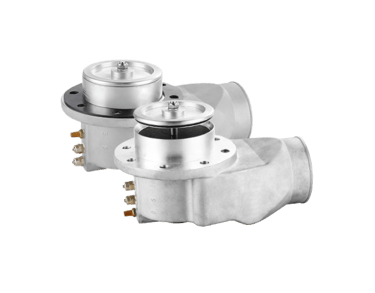

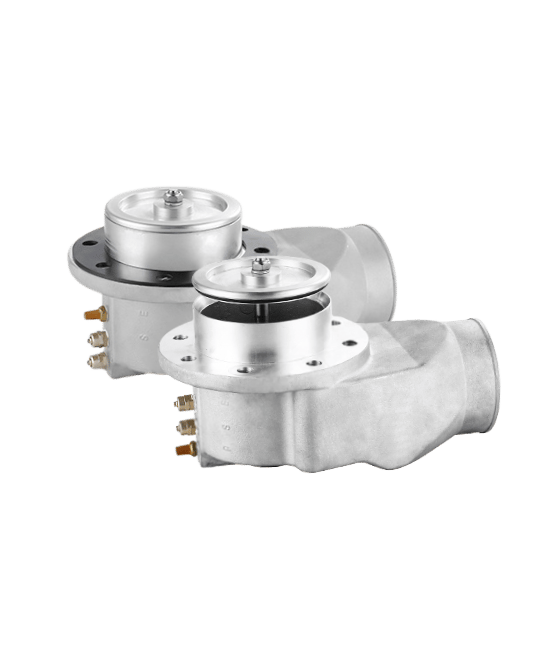

Connexta™ RecoSeal

Dry Break Vapor Recovery Valve

• Application: Designed to meet stringent environmental safety standards, RecoSeal connects to RecoMate vapor recovery adaptors, providing a vapor-tight, dry-break coupling for safe fuel vapor transfer.

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: Flanged (4")

• Sealing: FKM

• Features: Equipped with a dynamic seal system that protects the tank adaptor, limits vapor loss to under 20 PPM, and is tested over 100,000 cycles.

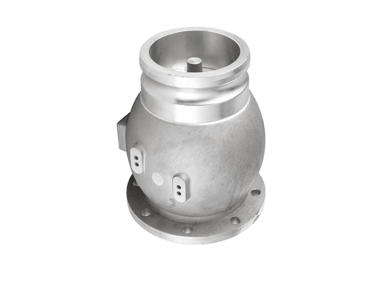

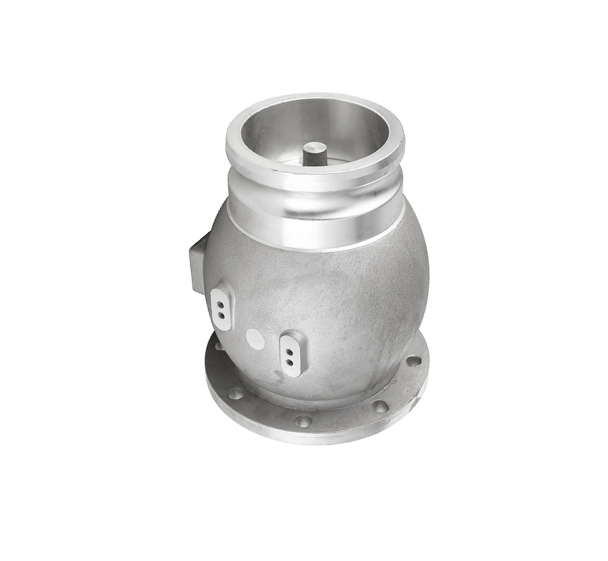

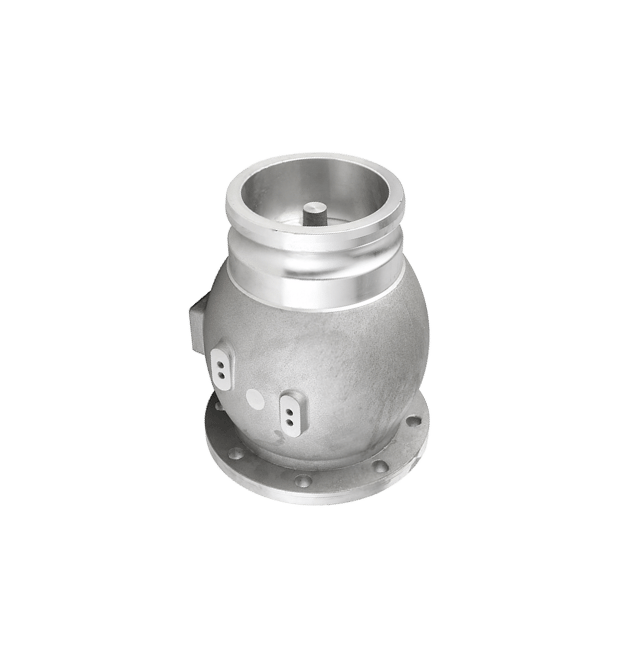

Connexta™ RecoMate

Vapor Recovery Adaptor

• Application: Quick connection with recovery hoses for bottom-mounted tanker vapor discharge systems.

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: Flanged (4")

• Features: Quick-connect design, low-resistance flow geometry, anti-static construction, and tested for over 100,000 cycles.

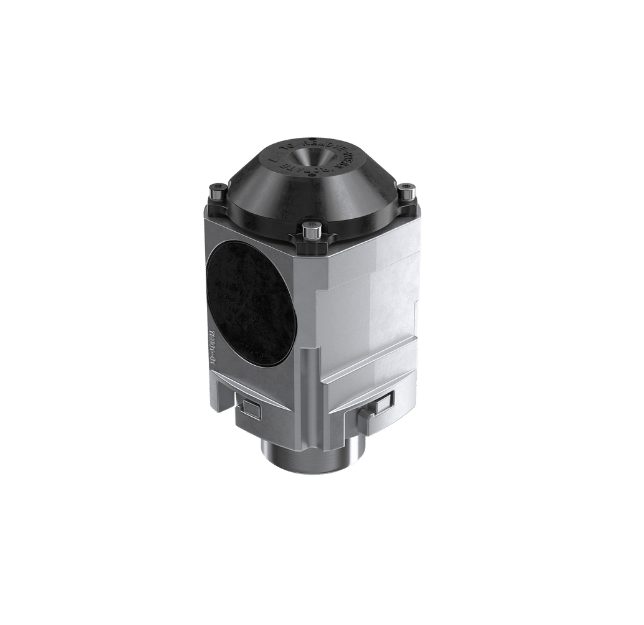

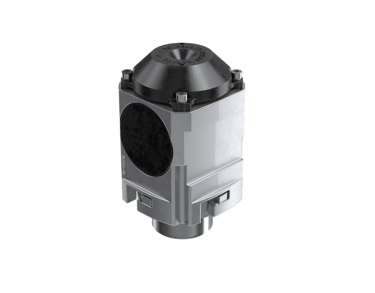

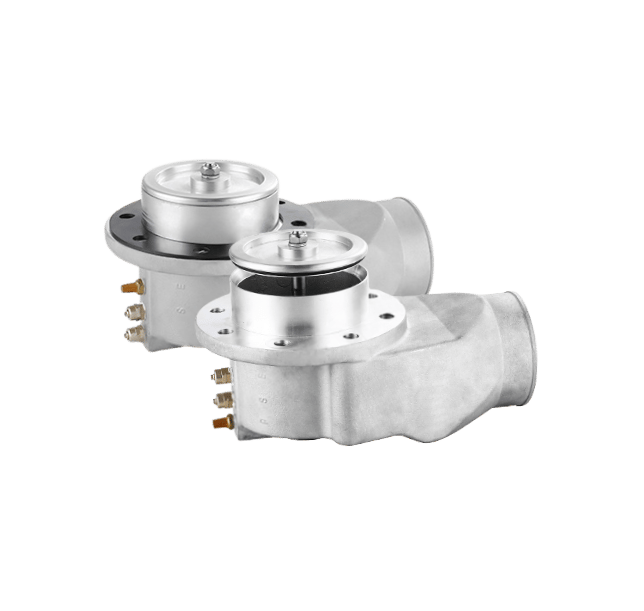

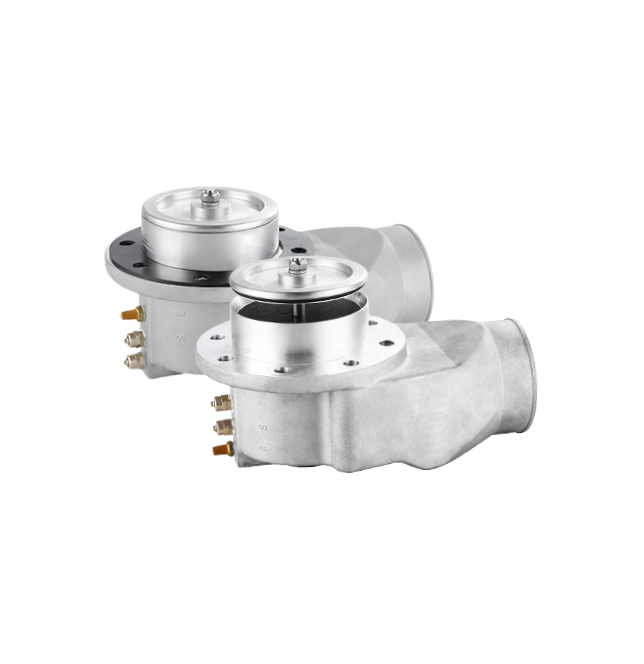

Connexta™ RecoCore

Vapor Recovery & Vent Valve for Tanker Trucks

• Application: Installed on the manhole cover (EndCover) or near the top rear end of tankers, RecoCore connects to RecoMate to safely vent or recover fuel vapor during unloading.

• Mounting Options: Manhole-mounted or rear-mounted

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: Flange (4") × Thread (4")

• Sealing: FKM

• Optional: Sensor-ready for system monitoring

• Features: Manhole-mounted models ensure vapor-tight sealing during transport and open automatically for vapor recovery. Rear-mounted models operate in a normally open state and seal when recovery activates. Both feature integrated check valves, built-in safety mechanisms, are tested over 100,000 cycles, and meet EN13002 standards.

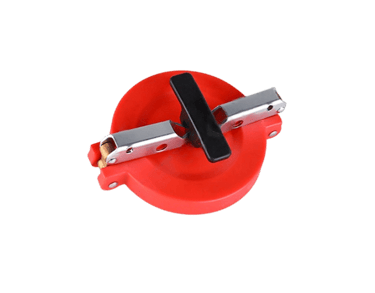

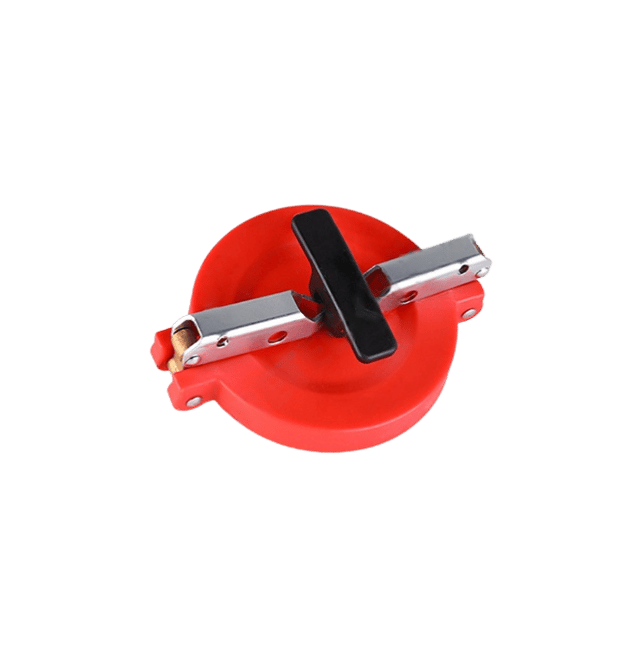

Connexta™ RecoShield

Protective Cap for Vapor Recovery Adaptor

• Application: Covers RecoMate recovery adaptors when not in use, preventing contamination and vapor leakage.

• Material: Engineering Plastic

• Size: 4"

• Features: Internal seal blocks dust, debris, and impact while minimizing vapor leaks.

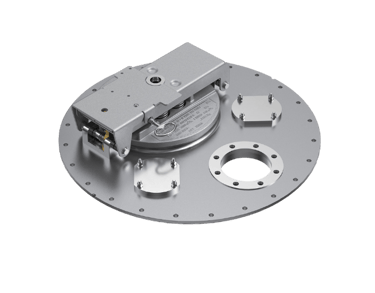

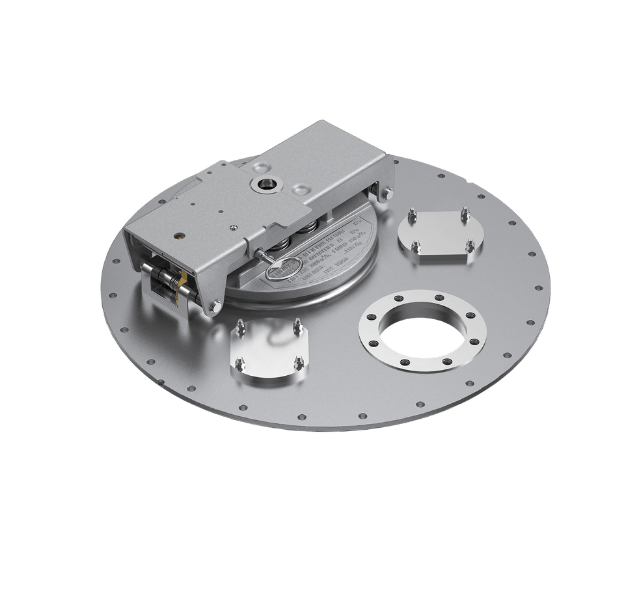

Connexta™ EndCover

Manhole Cover

• Application: Installed on the top of fuel tankers, used for venting, unloading, or as a mounting base for breather valves and vapor recovery components.

• Material: Aluminum Alloy

• Optional Sensors: Pressure, temperature, or open-lid sensors

• Features: High-flow design enhances ventilation efficiency, while the integrated flame arrester improves safety by preventing ignition. The offset-pressure breather valve protects against accidental lid ejection and enables automatic pressure relief in emergencies. Meets DOT406 and ADR standards.

Connexta™ EndRelief

Breather Valve

• Application: Installed inside the manhole cover (EndCover) of fuel tankers to balance internal pressure during loading, unloading, or temperature changes.

• Material: Aluminum Alloy

• Operating Temperature Range: –30°C to +90°C

• Connection Type: Threaded

• Sealing: FKM

• Features: Automatically opens to balance pressure during loading, unloading, or temperature changes. Features a flame arrester and precision seal to prevent leaks, even in rollovers. Meets GB and international standards.

Sizing Guide

Selecting the right Connexta™ transfer component starts with knowing the required size, connection type, and operating parameters. Each model code is clearly structured to simplify your selection process.

Model Breakdown: Connexta™ ZeroLeak T50 25-BSP

• ZeroLeak – Refers to the product family

• T – Indicates the series type: H for Hydraulic components, S for Liquid components, and T for Vapor components

• 50 – Indicates the series and nominal diameter, DN50 (2-inch) connection

• 25 – Indicates the maximum working pressure in bar

• BSP – Refers to the standard connection format

Final Assurance

Reliability Engineered. Performance Guaranteed.

At Hanstens, we believe that the strength of your operation starts at every connection point.
Connexta™ represents our commitment to delivering the most reliable, secure, and efficient coupling solutions.
