Connexta™ | Every Connection Counts

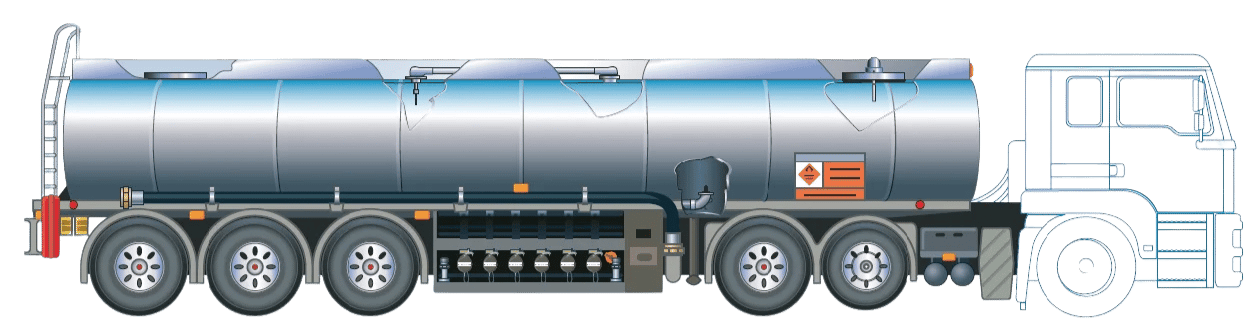

Built for Trucks. Trusted in Transit.

Connexta™ by Hanstens powers a new generation of truck tank connection components. It is purpose-built to handle fuel, vapors, and hydraulics with speed and certainty.

Each component is designed for durability, leak prevention, and seamless integration. Connexta™ helps operators streamline fueling, venting, and pressure control under real-world field conditions.

Connexta™ ZeroSpill

Rotary Dry-Break Coupler

• Application: Fuel transfer operations, chemical loading, industrial fluid handling

• Material: SS316 Stainless Steel

• Working Pressure: Up to 25 bar

• Operating Temperature Range: –20°C to +90°C

• Connection Type: Threaded or Flanged (1" to 6")

• Sealing: FKM

• Features: Snap-lock coupling system, rapid spill-free connection, meets NATO STANAG 3756 standard.

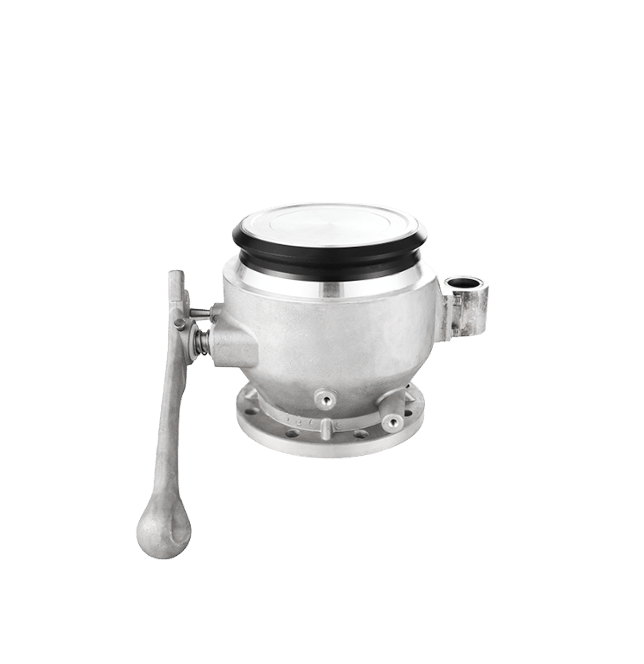

Connexta™ SafePort

Bottom Loading API Shut-Off Valve

• Application: Bottom-loading systems for tankers, optimized fluid dynamics

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: Flanged (4")

• Sealing: FKM

• Features: Compact valve body, low resistance, minimal residual volume, meets API RP1004 and EN13083 standards.

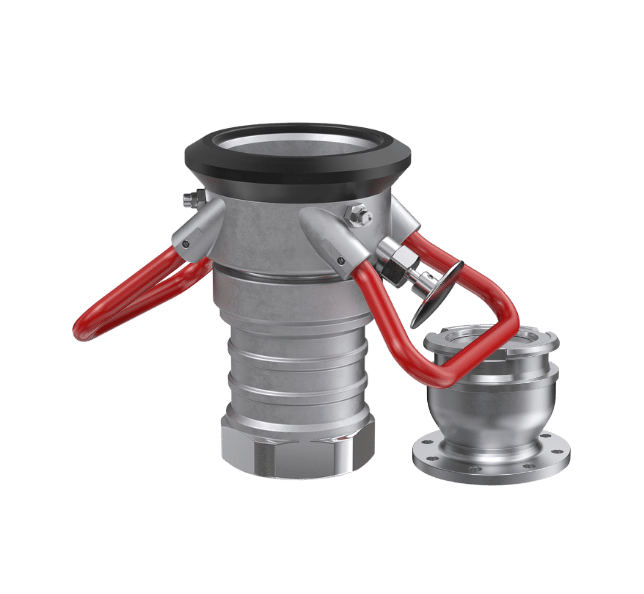

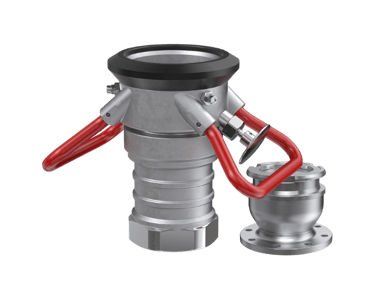

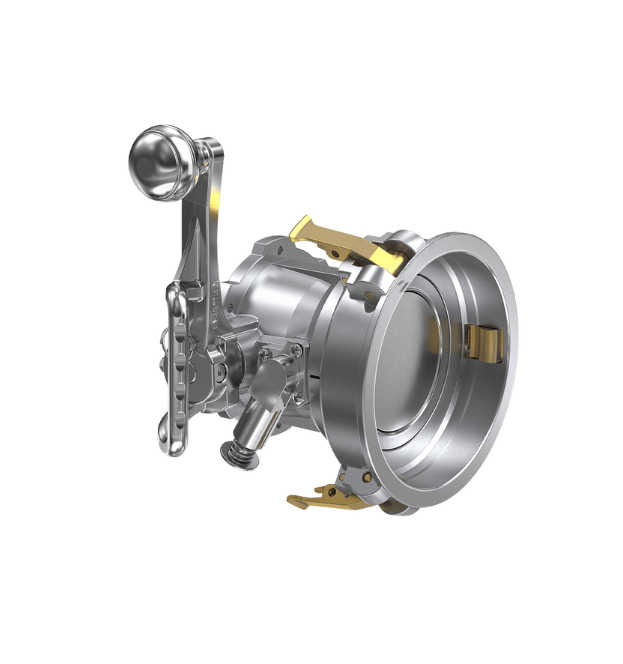

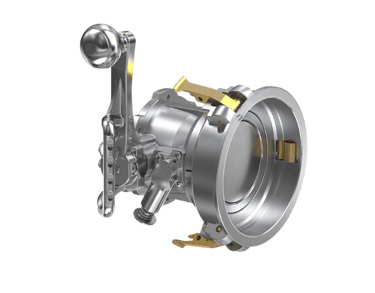

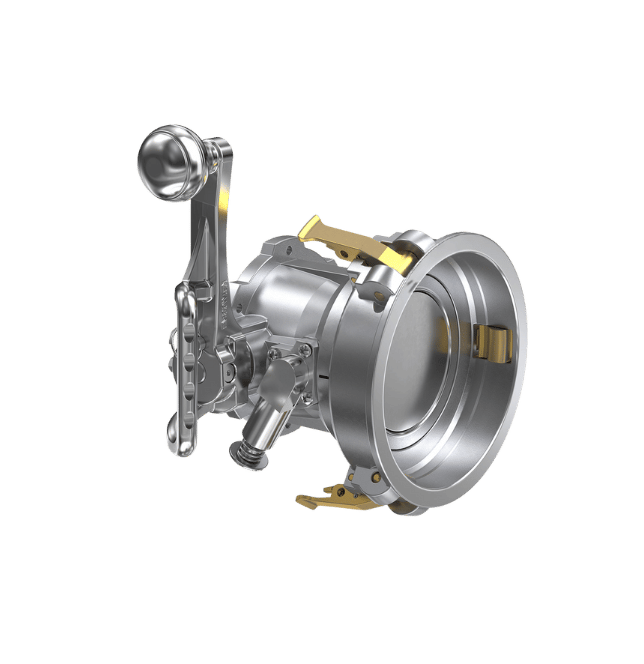

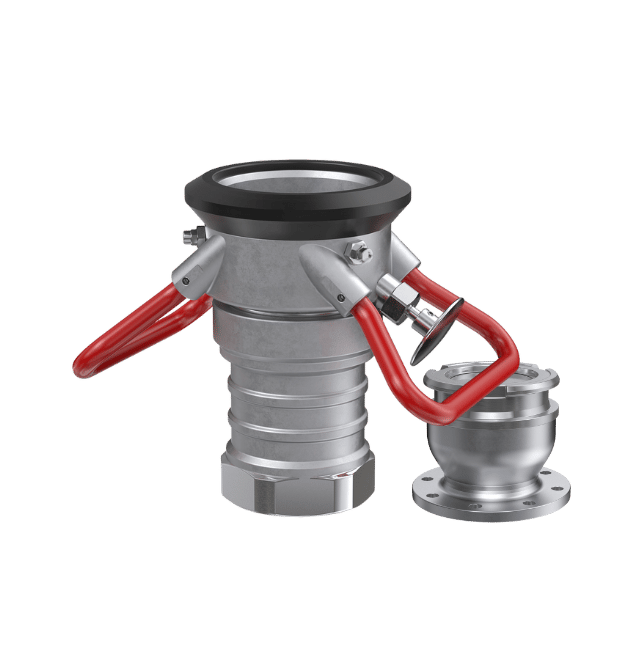

Connexta™ SafeLatch

Bottom Loading API Shut-Off Valve

• Application: Designed for petroleum depots and bottom-loading systems, SafeLatch connects securely to API valves (SafePort), ensuring fast, leak-free loading of both liquid and vapor.

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –30°C to +90°C

• Connection Type: Flanged (4")

• Sealing: FKM

• Features: Three-jaw interlock and dynamic seal compensation, minimal residual volume, meets API RP1004 standards.

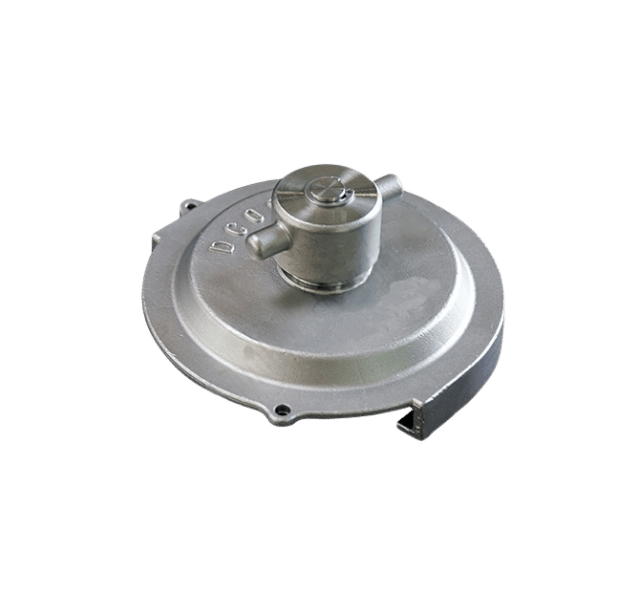

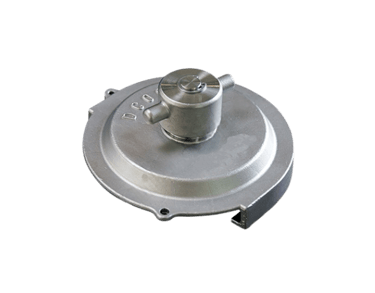

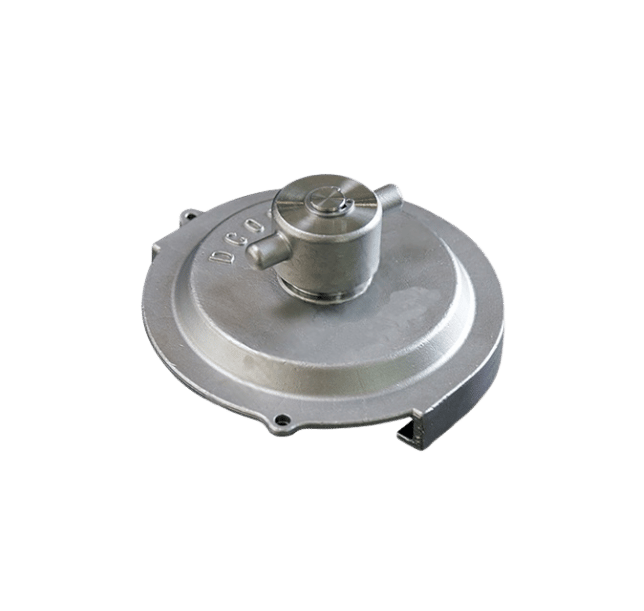

Connexta™ SafeCap

API Valve Dust Cap

• Application: Designed to protect API bottom valves (SafePort) from dust, impact, and wear during standby.

• Material: Aluminum Alloy

• Operating Temperature Range: –20°C to +60°C

• Size: 4"

• Features: Internal sealing ring prevents leakage from poorly sealed API valves. Reinforced design reduces locking damage and seat wear for longer service life.

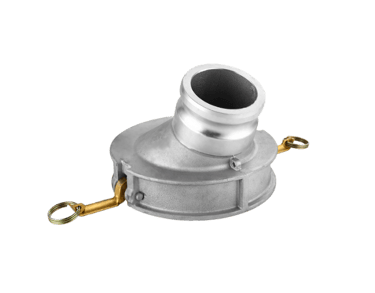

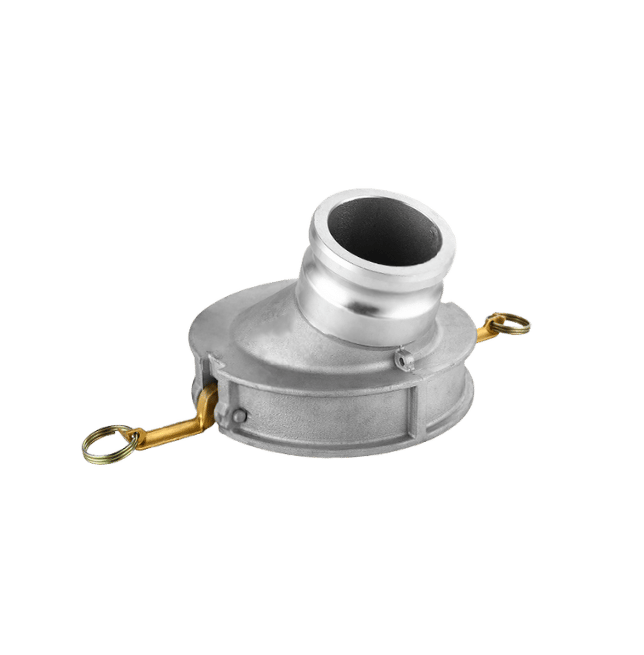

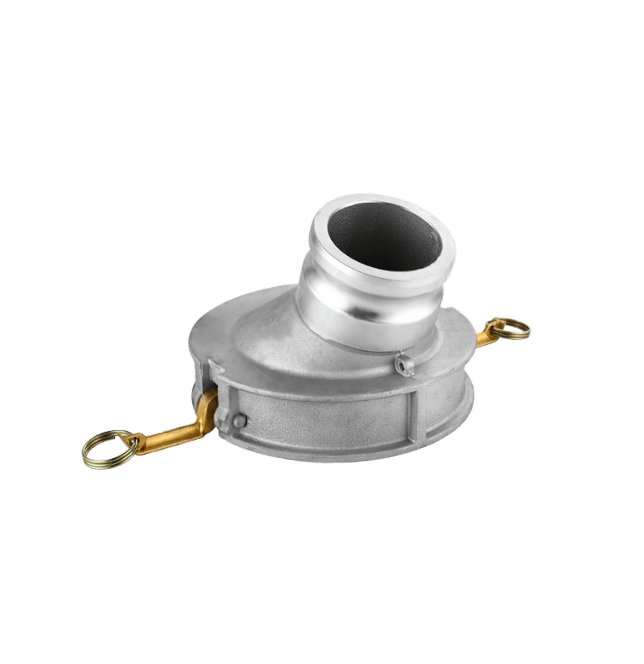

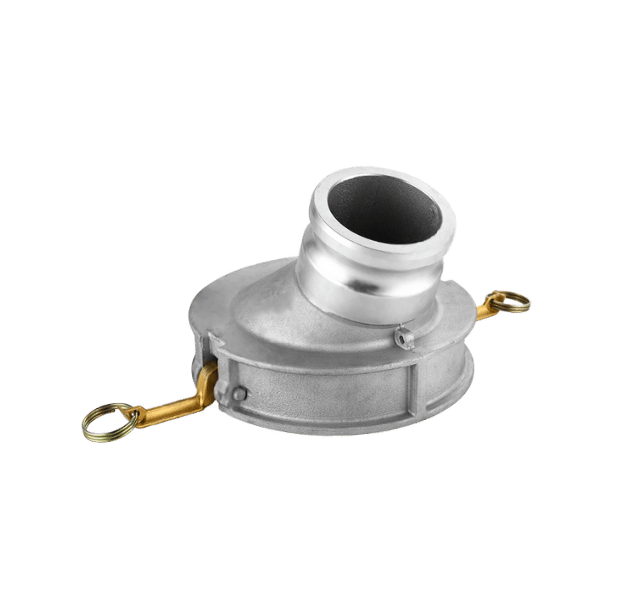

Connexta™ SafeLink

API Valve Adapter with Camlock Outlet

• Application: Enables quick connection from standard API bottom valves (SafePort) to camlock hose fittings, ideal for tanker offloading operations.

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: API (4") × Camlock (3" or 4")

• Sealing: FKM

• Features: Fast camlock compatibility, includes color-coded identification for warehouse and field use. meets API RP1004 standards.

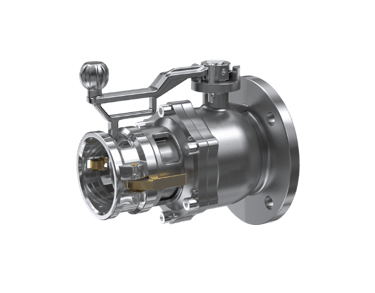

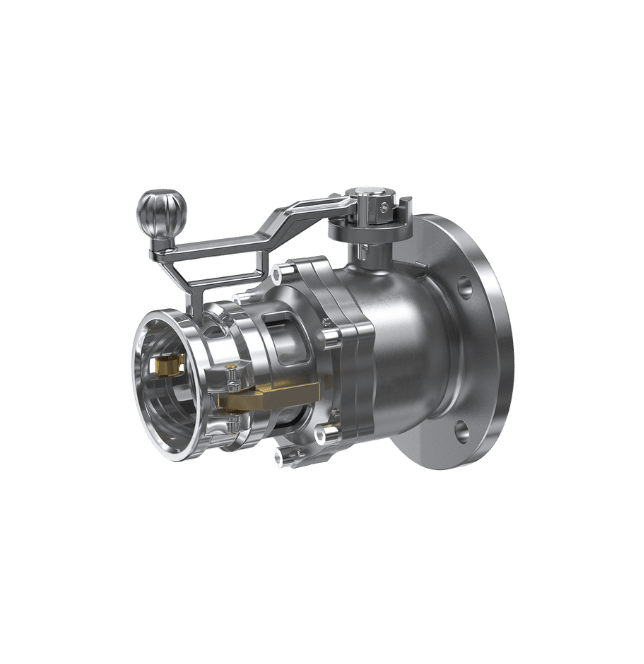

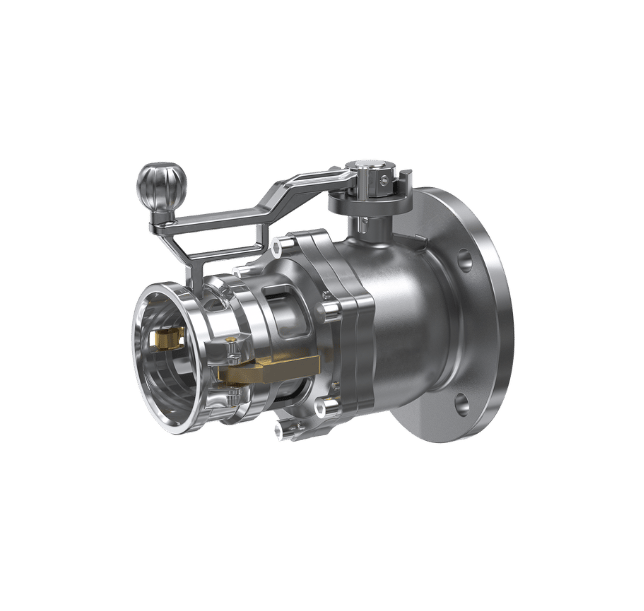

Connexta™ QuickLock

Flanged Ball Valve with Sight Glass and Camlock Outlet

• Application: Enables fluid flow control and visual inspection during transfer in production or tanker systems, thanks to its integrated sight glass.

• Material: Aluminum Alloy body with Stainless Steel ball

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: Flanged (3") / (4")

• Sealing: FKM

• Features: Anti-static design, anti-mixing function, and safety interlock that ensures the valve is closed before disconnection.

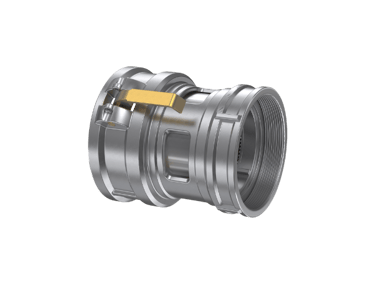

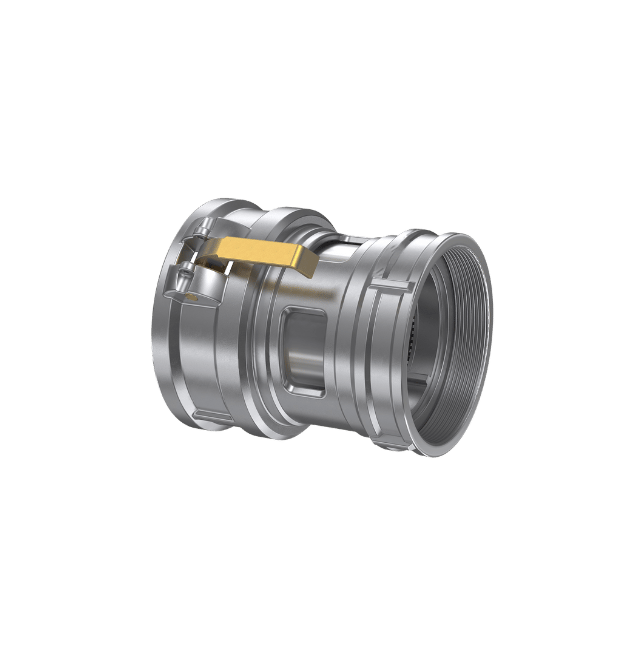

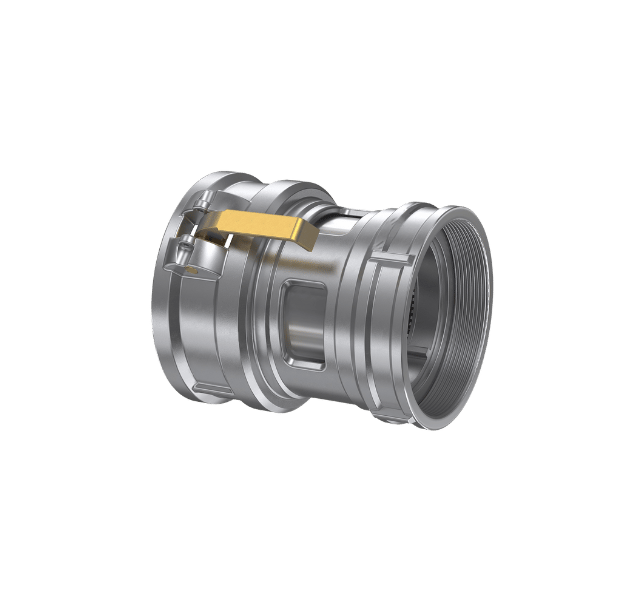

Connexta™ QuickView

Threaded Sight Glass with Camlock Outlet

• Application: Inline visual inspection for fuel, oil, and chemical transfer in camlock coupling systems

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: BSP Threaded (2.5" to 4")

• Sealing: FKM

• Features: Integrated visual window, high flow visibility.

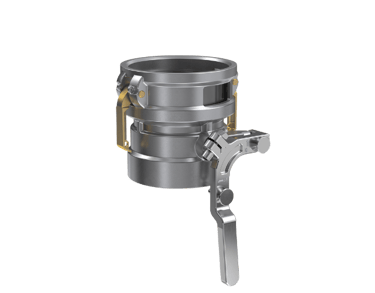

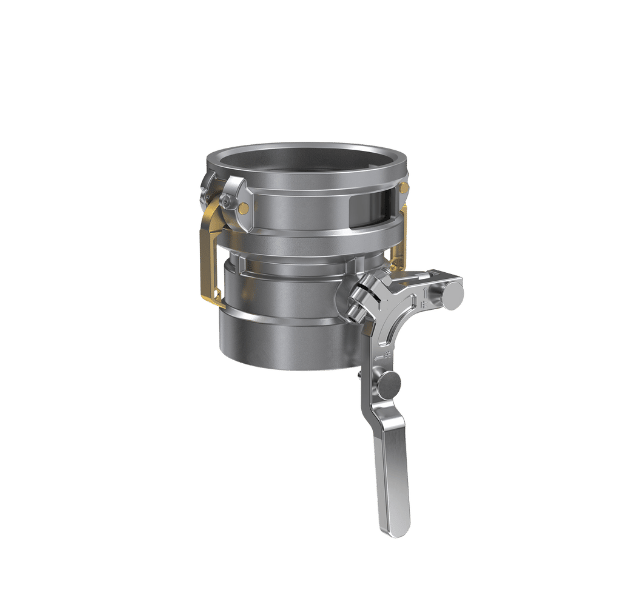

Connexta™ QuickValve

Threaded Ball Valve with Camlock Outlet

• Application: Inline shut-off for fuel, oil, and chemical transfer in camlock coupling systems

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: BSP Threaded (3")

• Sealing: FKM

• Features: Integrated quarter-turn valve for instant isolation

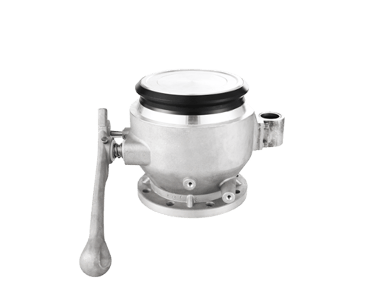

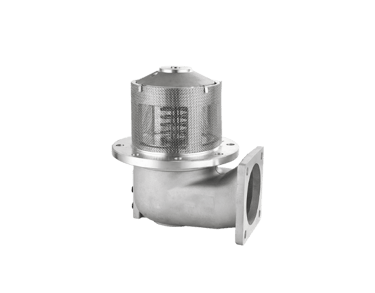

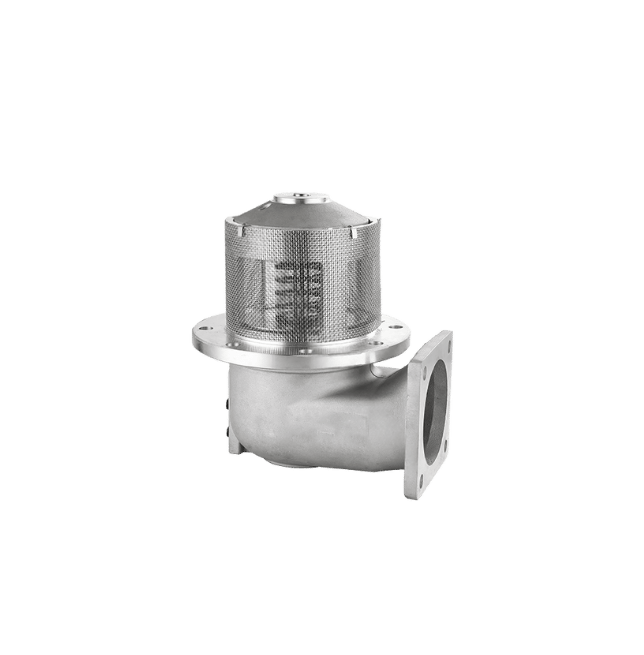

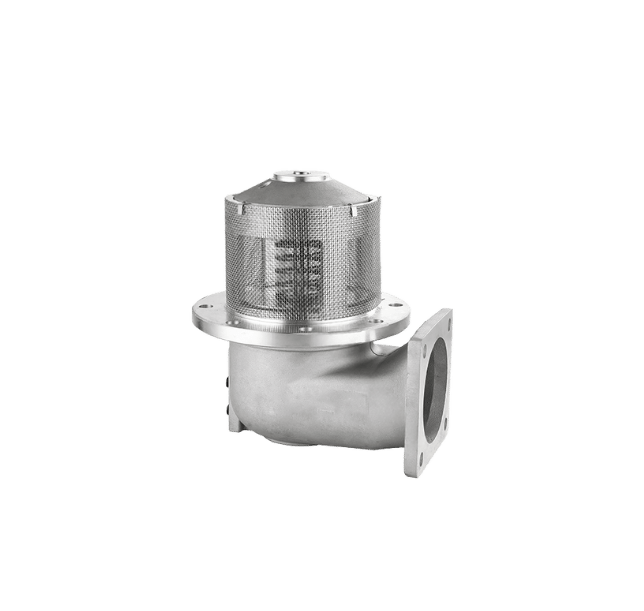

Connexta™ EndGuard

Emergency Shut-Off Valve

• Application: Installed at the tanker bottom, the valve stays closed during transit and opens for unloading. In the event of an accident, it automatically seals to prevent spillage.

• Material: Aluminum Alloy

• Operating Temperature Range: –20°C to +80°C

• Sealing: FKM

• Optional: Pneumatic actuator, temperature sensor, emergency shear-off protection

• Features: High-flow guided-core design for faster unloading. Its enhanced sealing system improves fuel compatibility and tightness. Built-in thermal protection and tested over 100,000 cycles. meets GB18564 standards.

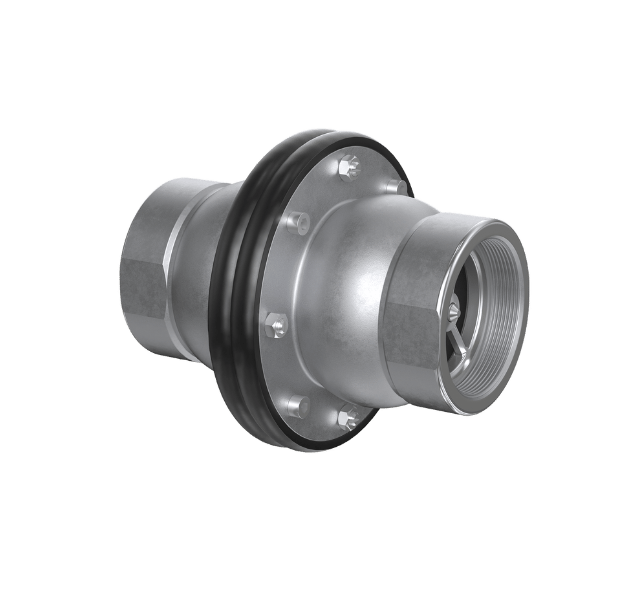

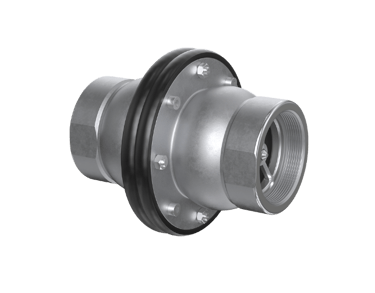

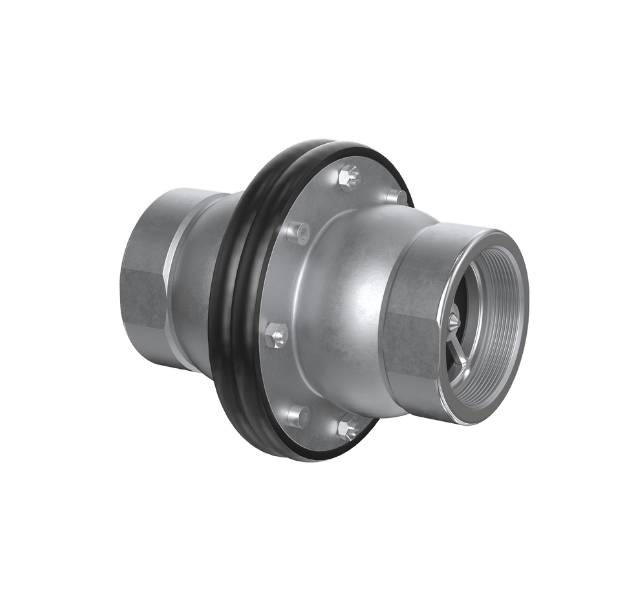

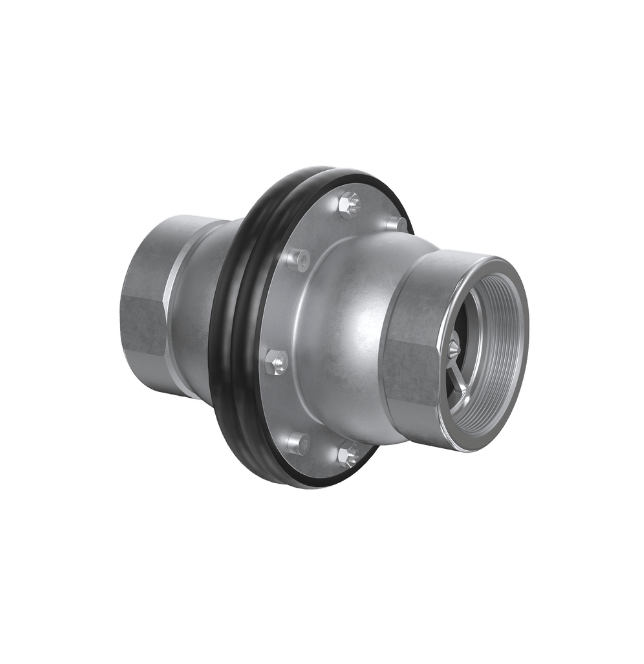

Connexta™ EndBreak

Threaded Breakaway Couplers

• Application: Emergency disconnection in fuel and chemical lines, refueling safety

• Material: SS316 Stainless Steel

• Operating Temperature Range: –40°C to +80°C

• Connection Type: Threaded or Flanged (1" to 3")

• Sealing: FKM

• Features: Automatic dual-shutoff, low torque separation, explosion-safe, DNV CCS certified.

Sizing Guide

Selecting the right Connexta™ transfer component starts with knowing the required size, connection type, and operating parameters. Each model code is clearly structured to simplify your selection process.

Model Breakdown: Connexta™ ZeroSpill S50 25-BSP

• ZeroSpill – Refers to the product family

• S – Indicates the series type: H for Hydraulic components, S for Liquid components, and T for Vapor components

• 50 – Indicates the nominal diameter, DN50 (2-inch) connection

• 25 – Indicates the maximum working pressure in bar

• BSP – Refers to the standard connection format

Final Assurance

Reliability Engineered. Performance Guaranteed.

At Hanstens, we believe that the strength of your operation starts at every connection point.
Connexta™ represents our commitment to delivering the most reliable, secure, and efficient coupling solutions.
