Connexta™ | Every Connection Counts

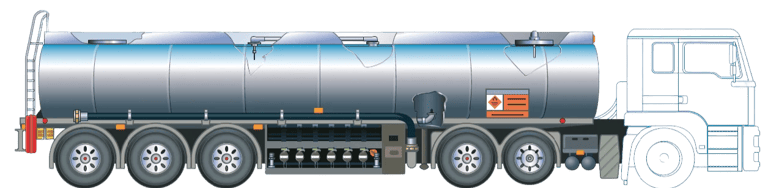

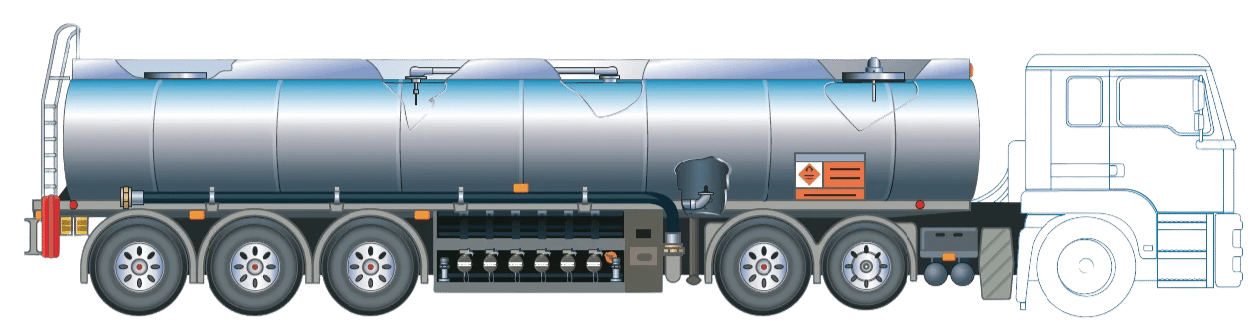

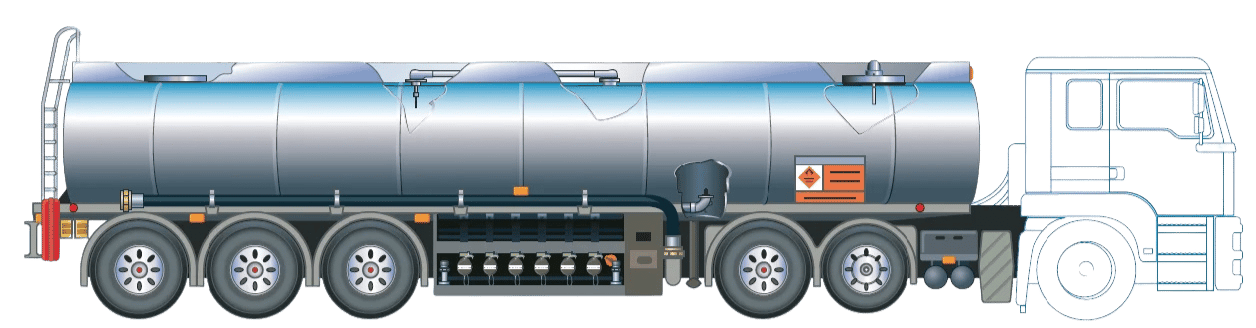

Built for Trucks. Trusted in Transit.

Connexta™ by Hanstens powers a new generation of truck tank connection components. It is purpose-built to handle fuel, vapors, and hydraulics with speed and certainty.

Each component is designed for durability, leak prevention, and seamless integration. Connexta™ helps operators streamline fueling, venting, and pressure control under real-world field conditions.

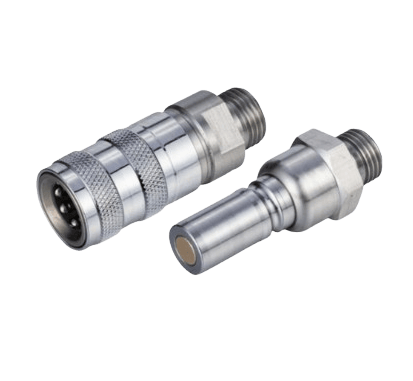

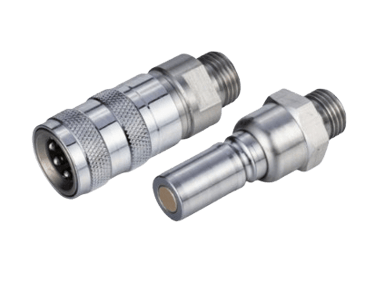

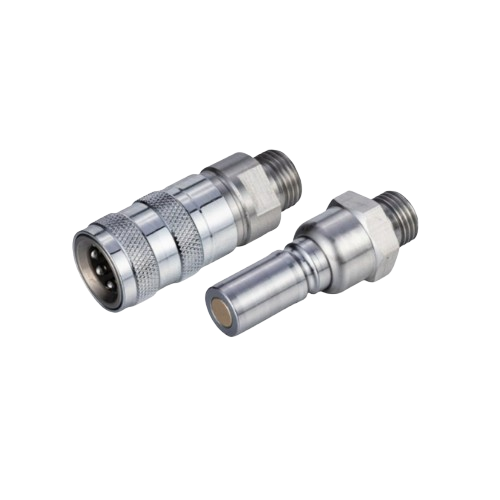

Connexta™ ZeroLoss

Precision Quick Connect Coupler

• Application: Industrial automation, compressed air, coolant, fluid handling

• Material: SUS440C Hardened Stainless Steel

• Working Pressure: Up to 80 bar

• Operating Temperature Range: –20°C to +240°C

• Connection Type: BSP or NPT Thread (1/4", 3/8", 1/2")

• Sealing: FPM (Viton®)

• Features: High-precision coupling, fast push-to-connect, extreme durability

Sizing Guide

Selecting the right Connexta™ transfer component starts with knowing the required size, connection type, and operating parameters. Each model code is clearly structured to simplify your selection process.

Model Breakdown: Connexta™ ZeroLoss H15 80-NPT

• ZeroLoss – Refers to the product family

• H – Indicates the series type: H for Hydraulic components, S for Liquid components, and T for Vapor components

• 15 – Indicates the nominal diameter, DN15 (0.5-inch) connection

• 80 – Indicates the maximum working pressure in bar

• NPT – Refers to the standard connection format

Final Assurance

Reliability Engineered. Performance Guaranteed.

At Hanstens, we believe that the strength of your operation starts at every connection point.
Connexta™ represents our commitment to delivering the most reliable, secure, and efficient coupling solutions.
