Slurrion™ | Built to Conquer Slurry

Powerful. Durable. Relentless.

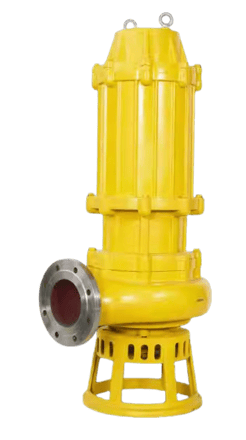

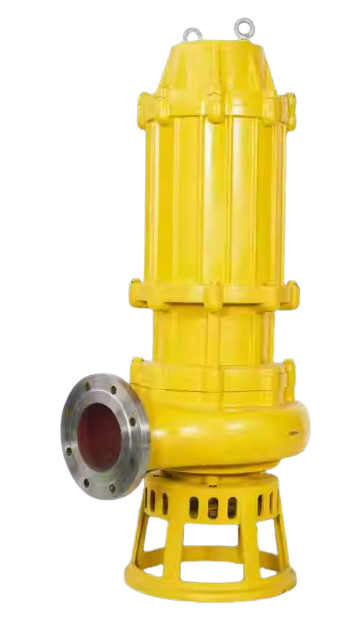

Slurrion™ by Hanstens is a high-performance submersible slurry pump designed to operate in the harshest environments. From river dredging to industrial wastewater pits. Engineered with a high-chrome alloy impeller and robust mechanical seals, it delivers exceptional abrasion resistance and pumping efficiency.

With flow rates up to 1800 m³/h and head capabilities up to 110 meters, Slurrion™ tackles heavy slurry, sediment, and sand with ease.

Agitator Options for Slurry Performance

We offer two advanced agitation systems to pair with the Slurrion™ series, each engineered for specific site conditions and slurry characteristics. Whether you need raw cutting power or broad slurry agitation, our options ensure optimized mixing and improved pump efficiency in the harshest environments.

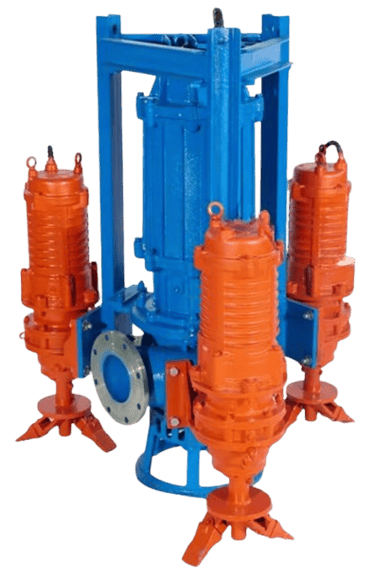

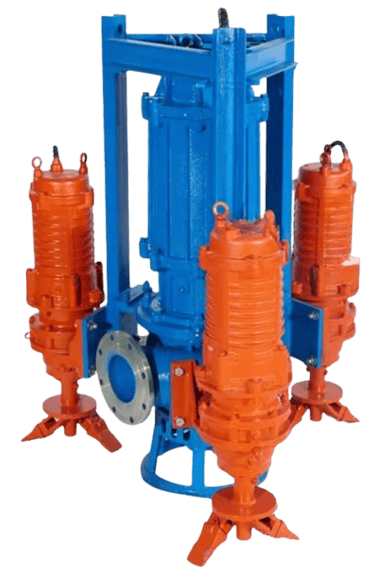

HydroForce™ Mixer Type

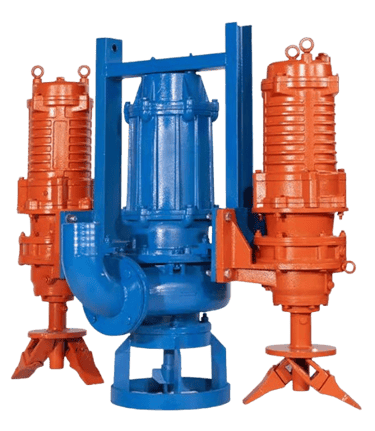

Designed with wide-flow vanes, this configuration delivers consistent mixing action to keep finer particles suspended and maintain slurry movement. Best suited for lighter, more fluid slurries, it offers uniform agitation and reliable coverage. Especially useful in applications where even dispersion matters more than aggressive cutting.

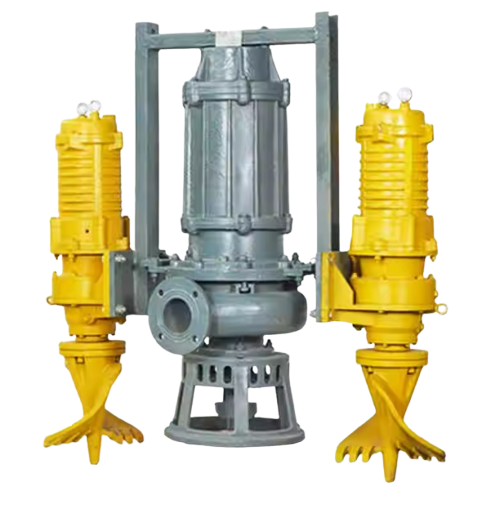

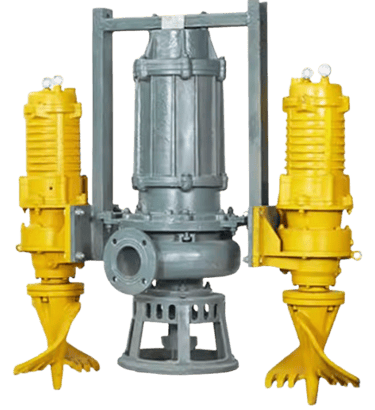

GravForce™ Mixer Type

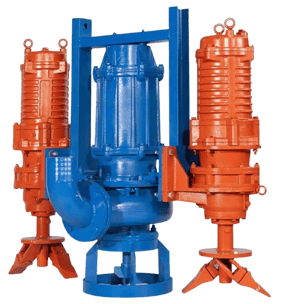

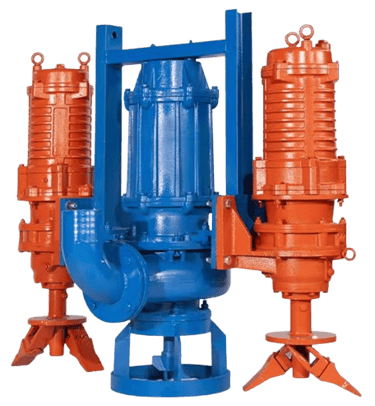

Designed for high-impact environments, this system features a powerful rotary cutter mechanism that forcefully breaks up compacted sediment and thick slurry deposits. Its aggressive excavation performance makes it ideal for dredging, mining, and other heavy-duty applications where solid penetration and extraction are required.

Key Specifications

• Wide Flow Range
  Slurrion™ offers a robust capacity with a flow up to 400 cubic meters per hour, making it highly adaptable for light sediment removal or heavy-duty dredging operations.

• High Head Capabilities
  Designed for high-lift performance, the pump supports discharge heads up to 80 meters, ideal for both shallow excavation and deep well pumping.

• Flexible Power Options
  Available in motor configurations from 11 kW to 110 kW, Slurrion™ can accommodate everything from mobile site tasks to demanding industrial throughput.

• Discharge Size Range
  Compatible with discharge diameters from 3 inches to 6 inches, accommodating different outflow systems and output volumes.

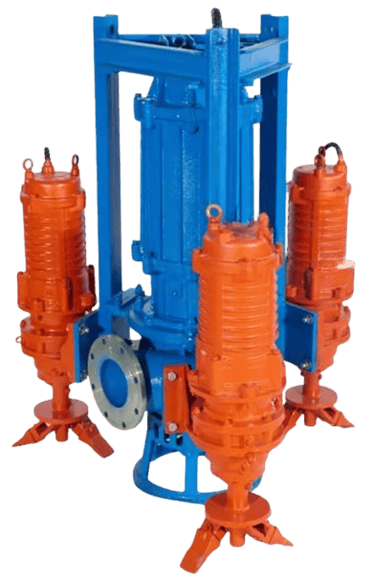

• Flexible Auxiliary Mixer Options

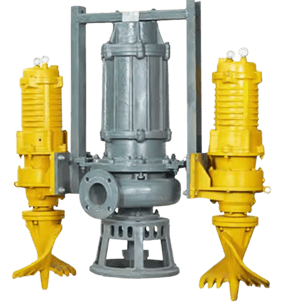

  For enhanced mixing performance, the system supports customization of side-mounted mixers, with the option to integrate 0 to 4 auxiliary agitators depending on site conditions and slurry thickness.

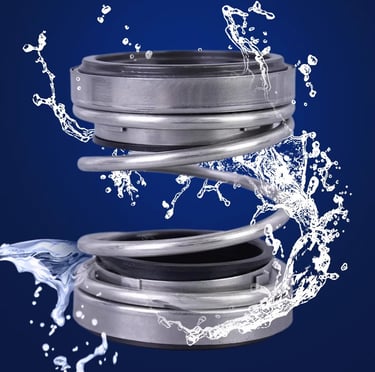

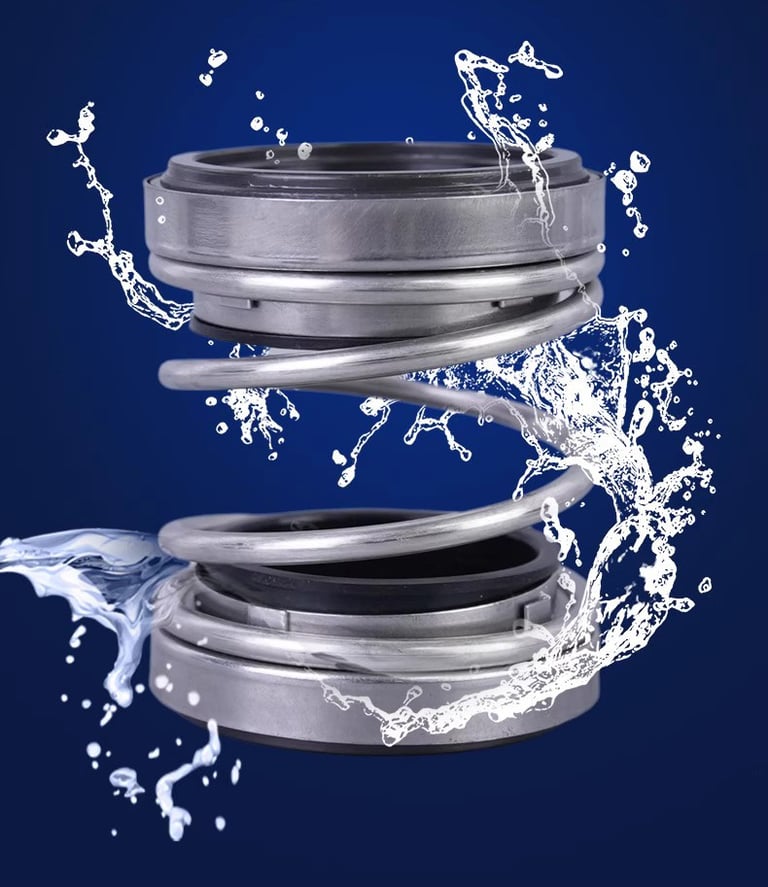

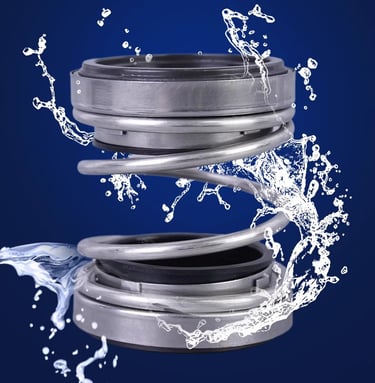

Heavy-Duty Shaft Seal
Precision mechanical seal design effectively prevents slurry ingress into the motor, improving protection and sealing strength.

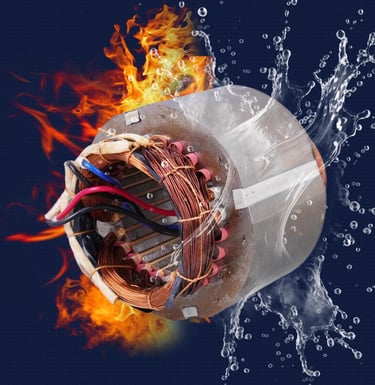

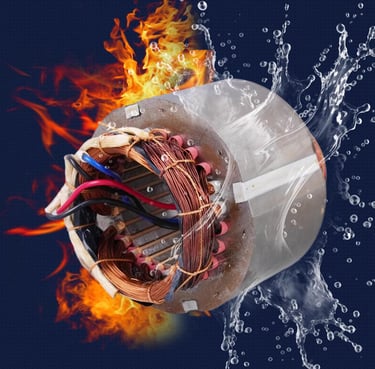

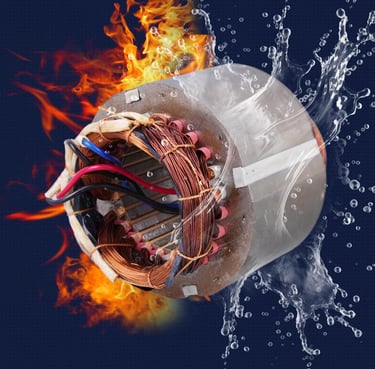

High Efficiency Motor
Equipped with a pure copper motor, triple insulation, and sealed rotor, ensuring consistent performance and long lifespan.

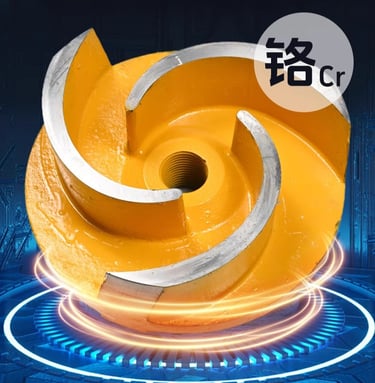

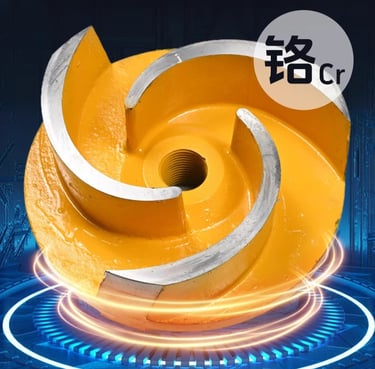

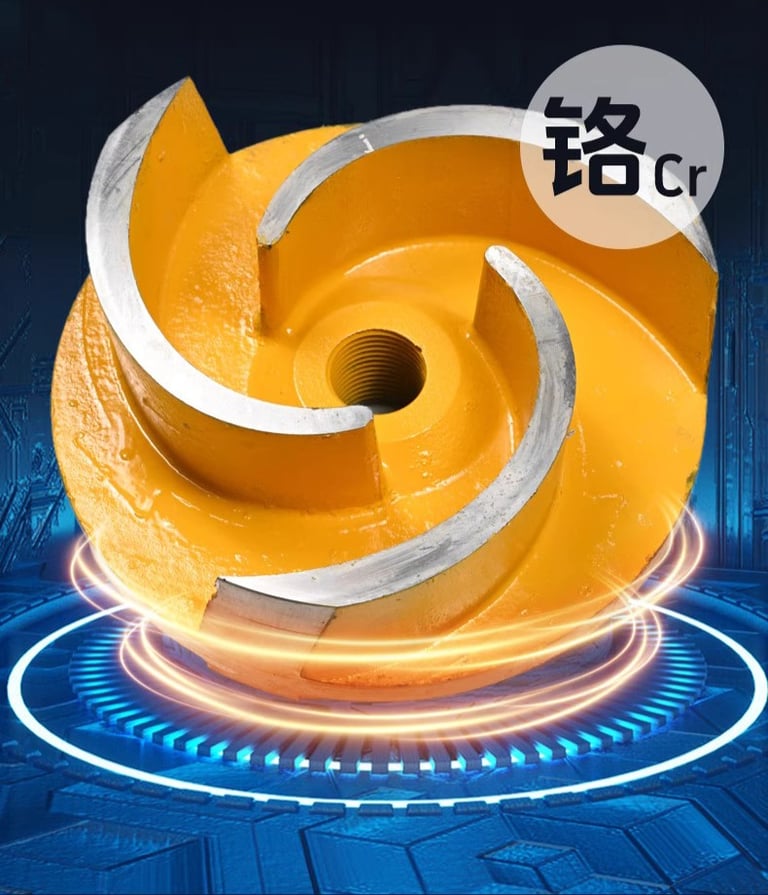

Enhanced Abrasion Resistance
Uses high-chrome alloy impellers that offer both strength and toughness, greatly increasing sand handling efficiency.

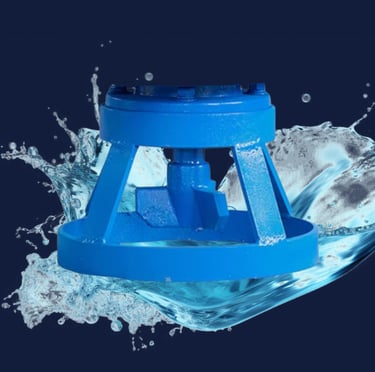

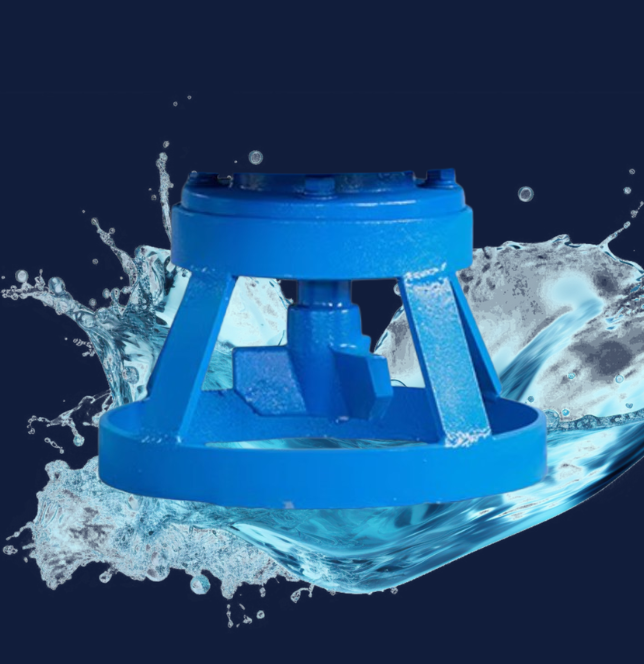

Integrated Bottom Agitator
Equipped with a bottom agitator wheel that disturbs settled sediment, helping lift and mix dense slurry before it reaches the suction inlet.

Key Feautures

Sizing Guide

Choosing the right slurry pump starts with understanding your flow, head, and power requirements. Each Slurrion™ model is clearly labeled for easy identification and fast selection.

Model Breakdown: Slurrion™ H80 50-30-11

• H80 – Indicates a DN80 (3-inch) outlet diameter, suitable for medium-capacity discharge systems.

• 50 – Refers to the nominal flow rate of 50 m³/h, ensuring stable performance in moderate-volume operations.

• 30 – Indicates the nominal head of 30 meters, ideal for sites with moderate vertical lift or pressure requirements.

• 11 – Denotes an 11 kW motor, delivering the power needed for continuous slurry handling in tough environments.

Model Overview

Explore our most commonly supplied Slurrion™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.

Model List:

• Slurrion™ H80 50-30-11
  A balanced performer for small to medium jobs, ideal for general-purpose slurry transfer with moderate head and low energy consumption.

• Slurrion™ H100 150-38-30
  A mid-size performer, delivering a balanced combination of moderate flow capacity and head height, ideal for everyday slurry applications.

• Slurrion™ H150 250-40-45
  A powerhouse standard for field operations needing consistent flow and pressure. Suitable for construction runoff and mid-depth silt movement.

• Slurrion™ H80 100-30-15
  A compact high-volume model offering double the capacity of the H80 50 series. Ideal for shallow, wide-area dewatering or slurry pooling.

• Slurrion™ H150 400-30-55
  Engineered for high-volume discharge, this model handles large-scale slurry transport, often used in mining basins and flood control.

• Slurrion™ H100 160-80-90
  A high-head unit built for steep lift applications, perfect for transferring slurry vertically or across long pipeline distances.

• Slurrion™ H150 200-80-110
  Combines a large motor and elevated head capability, this high-head variant is suitable for high-pressure output systems.

Pump Selection

To determine the most suitable Slurrion™ pump for your application, consider the following factors:

• Required Flow Rate: Assess the volume of slurry that needs to be moved per hour.

• Head Requirements: Determine the vertical distance the slurry must be lifted.

• Slurry Characteristics: Analyze the density, viscosity, and abrasiveness of the slurry.

• Power Availability: Ensure compatibility with available power sources and motor capacities.

For personalized assistance in selecting the ideal pump model, please contact our technical support team.
