Slurrion™ | Built to Conquer Slurry

Powerful. Durable. Relentless.

Slurrion™ by Hanstens is a high-performance submersible slurry pump designed to operate in the harshest environments. From river dredging to industrial wastewater pits. Engineered with a high-chrome alloy impeller and robust mechanical seals, it delivers exceptional abrasion resistance and pumping efficiency.

With flow rates up to 1800 m³/h and head capabilities up to 110 meters, Slurrion™ tackles heavy slurry, sediment, and sand with ease.

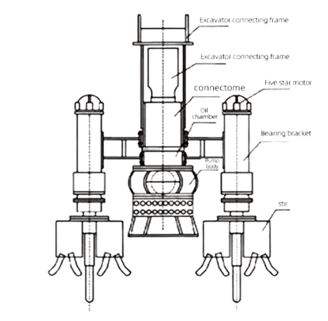

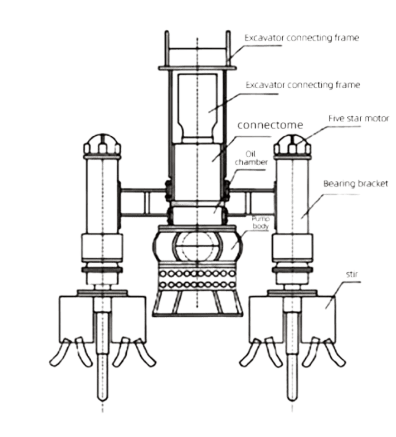

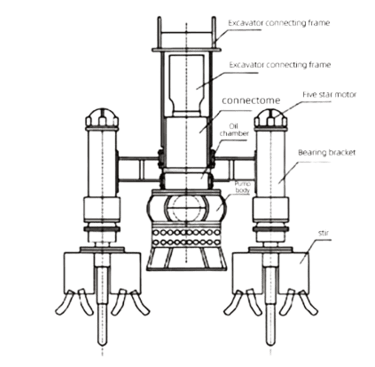

Built-In Excavation for Peak Slurry Performance

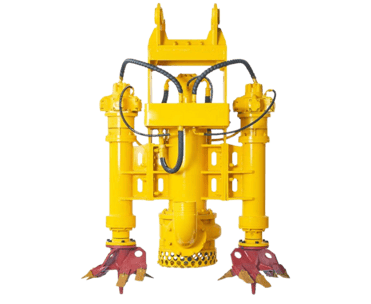

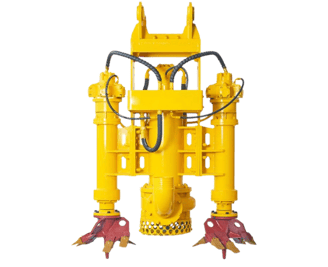

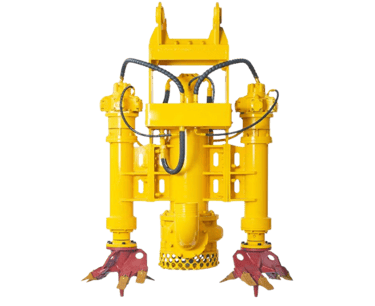

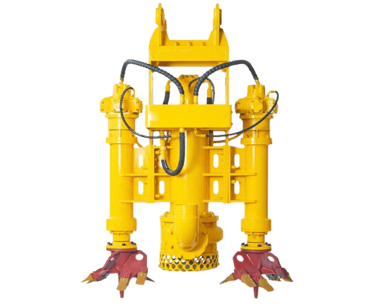

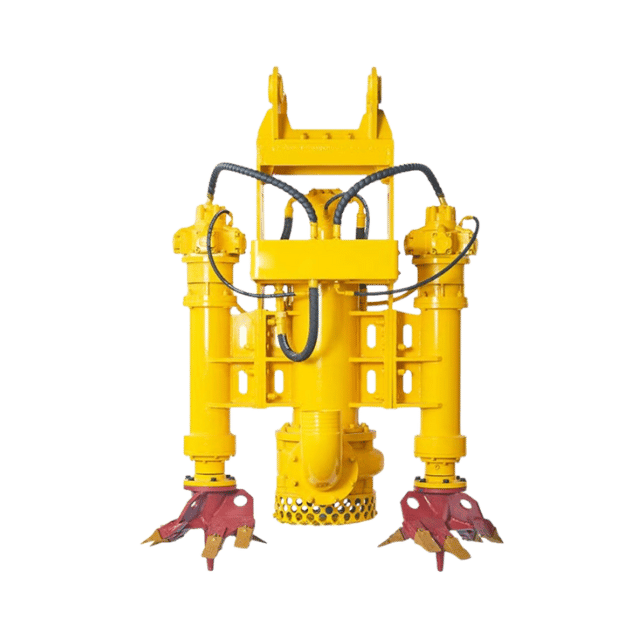

Slurrion™ with RotoForce™ is purpose-built for demanding slurry applications where excavation and solids handling are critical. Outfitted with a high-torque hydraulic cutter system, it delivers efficient sediment breakup and reliable slurry flow

RotoForce™ Cutter Type

Designed for aggressive excavation, RotoForce™ uses hydraulic cutter heads to dislodge compacted sediments, gravel, and fibrous materials. Its high-torque system ensures faster intake, smoother slurry transport, and superior performance in high-solids and heavy-duty conditions. ideal for dredging, mining, and dewatering.

• Wide Flow Range
  Slurrion™ offers a robust capacity with a flow up to 400 cubic meters per hour, making it highly adaptable for light sediment removal or heavy-duty dredging operations.

• High Head Capabilities
  Designed for high-lift performance, the pump supports discharge heads up to 80 meters, ideal for both shallow excavation and deep well pumping.

• Flexible Power Options
  Driven by hydraulic systems with rated input from 11 to 1110 kW, compatible with standard excavators or hydraulic stations.

• Discharge Size Range
  Compatible with discharge diameters from 3 inches to 6 inches, accommodating different outflow systems and output volumes.

• Flexible Auxiliary Mixer Options
  For enhanced mixing performance, the system supports customization of side-mounted mixers, with the option to integrate 0 to 4 auxiliary agitators depending on site conditions and slurry thickness.

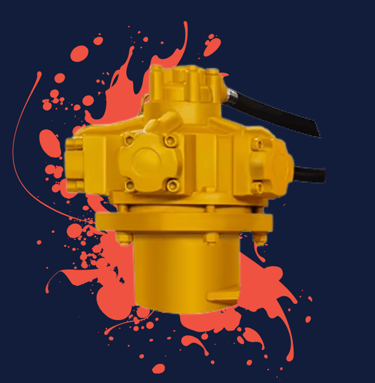

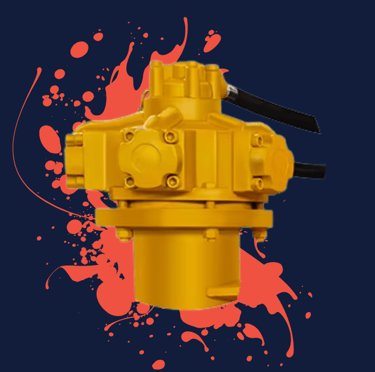

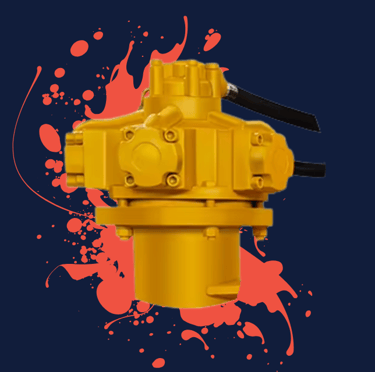

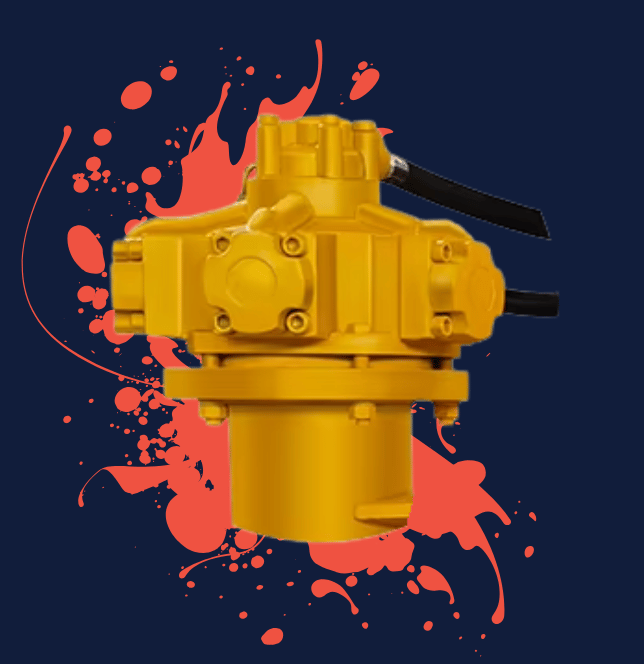

Hydraulic Power Drive
Powered by a dedicated hydraulic system, the cutter's delivers high torque output essential for penetrating compacted sediment and slurry beds.

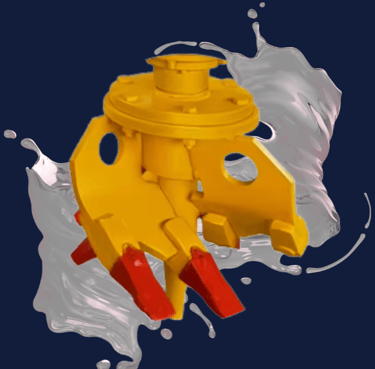

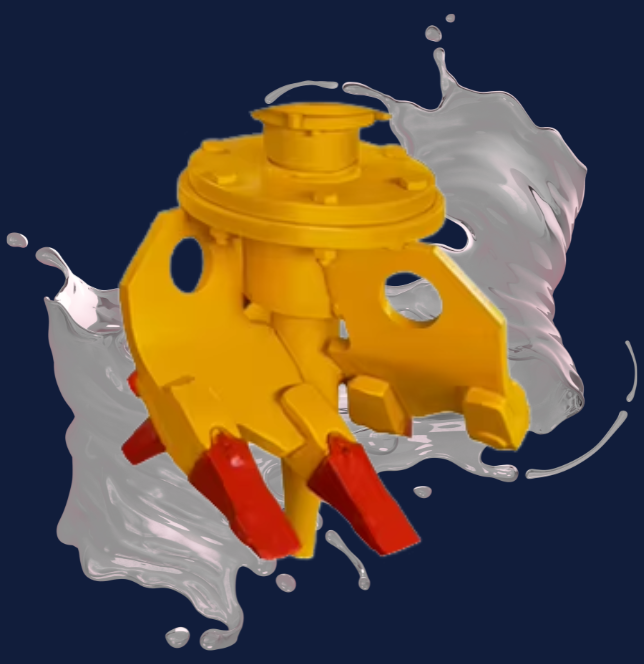

Reinforced Cutter Heads
Equipped with high-strength alloy cutter tips, engineered for dislodging dense materials like gravel, sludge, and fibrous waste.

Enhanced Abrasion Resistance
Uses high-chrome alloy impellers that offer both strength and toughness, greatly increasing sand handling efficiency.

Integrated Bottom Agitator
Equipped with a bottom agitator wheel that disturbs settled sediment, helping lift and mix dense slurry before it reaches the suction inlet.

Key Feautures

Sizing Guide

Choosing the right slurry pump starts with understanding your flow, head, and power requirements. Each Slurrion™ model is clearly labeled for easy identification and fast selection.

Model Breakdown: Slurrion™ Y80 50-30-11

• Y80 – Indicates a DN80 (3-inch) outlet diameter, suitable for medium-capacity discharge systems.

• 50 – Refers to the nominal flow rate of 50 m³/h, ensuring stable performance in moderate-volume operations.

• 30 – Indicates the nominal head of 30 meters, ideal for sites with moderate vertical lift or pressure requirements.

• 11 – Represents the required hydraulic power input of 11 kW, specifying the energy needed from the excavator or hydraulic station to drive the pump effectively.

Model Overview

Explore our most commonly supplied Slurrion™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.

Model List:

• Slurrion™ Y80 50-30-11
  A balanced performer for small to medium jobs, ideal for general-purpose slurry transfer with moderate head and low energy consumption.

• Slurrion™ Y100 150-38-30
  A mid-size performer, delivering a balanced combination of moderate flow capacity and head height, ideal for everyday slurry applications.

• Slurrion™ Y150 250-40-45
  A powerhouse standard for field operations needing consistent flow and pressure. Suitable for construction runoff and mid-depth silt movement.

• Slurrion™ Y80 100-30-15
  A compact high-volume model offering double the capacity of the Y80 50 series. Ideal for shallow, wide-area dewatering or slurry pooling.

• Slurrion™ Y150 400-30-55
  Engineered for high-volume discharge, this model handles large-scale slurry transport, often used in mining basins and flood control.

• Slurrion™ Y100 160-80-90
  A high-head unit built for steep lift applications, perfect for transferring slurry vertically or across long pipeline distances.

• Slurrion™ Y150 200-80-110
  Combines a large motor and elevated head capability, this high-head variant is suitable for high-pressure output systems.

Pump Selection

To determine the most suitable Slurrion™ pump for your application, consider the following factors:

• Required Flow Rate: Assess the volume of slurry that needs to be moved per hour.

• Head Requirements: Determine the vertical distance the slurry must be lifted.

• Slurry Characteristics: Analyze the density, viscosity, and abrasiveness of the slurry.

• Power Availability: Ensure compatibility with available power sources and motor capacities.

For personalized assistance in selecting the ideal pump model, please contact our technical support team.
