QuantaPulse™ | Precision in Every Drop

Dose Smarter, Flow Better.

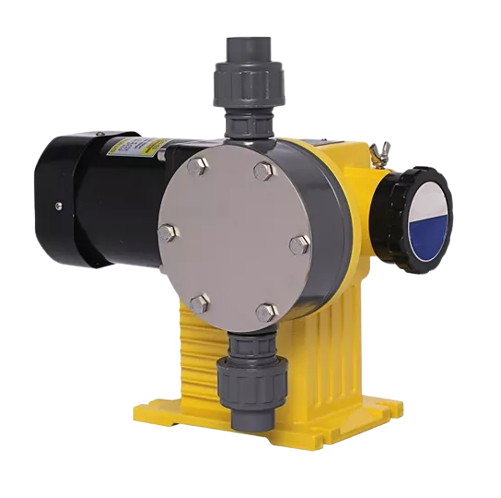

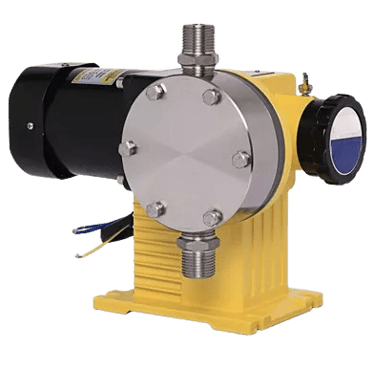

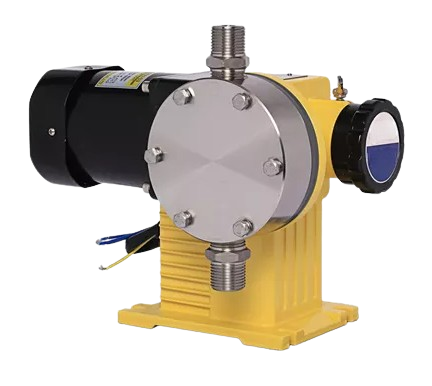

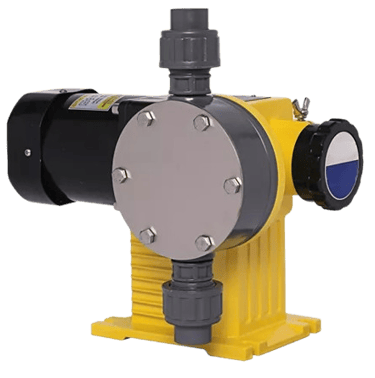

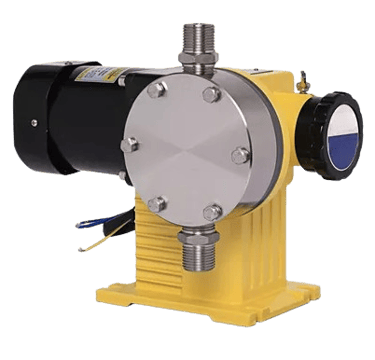

QuantaPulse™ by Hanstens is a high-performance mechanical diaphragm metering pump designed for precise and consistent fluid dosing.

Engineered for chemical compatibility and long-term durability, QuantaPulse™ ensures accurate delivery across a wide range of industrial and water treatment applications.

With adjustable stroke control, rugged construction, and flexible installation options, QuantaPulse™ offers reliable performance you can count on drop after drop.

Key Specifications

  • Flow Rate

    Adjustable flow capacity ranging from 15 to 150 L/h, catering to various dosing requirements.

  • Pressure Range

    Operates efficiently up to 10 bars, suitable for demanding applications.

  • Stroke Frequency

    Manual or automatic adjustment for precise control over dosing volumes.

  • Power Supply

    Standard 60 Watts, 380V three-phase, ensuring compatibility with industrial power sources.

Materials of Constructions

  • Pump Head Options
    Available in PVC, PVDF, and SS316, providing excellent chemical compatibility and long-term durability for a wide range of dosing applications.

  • Diaphragm
    Equipped with a composite PTFE diaphragm, specifically reinforced for extended service life and resistance to aggressive chemicals.

  • Check Valve
    Constructed from the same materials as the pump head to ensure full system compatibility and reliable performance.

  • Valve Ball
    Available in Ceramic for maximum efficiency and durability.

Sizing Guide

Choosing the right dosing pump starts with understanding your flow rate, pressure, and motor requirements. Each QuantaPulse™ model is clearly labeled to simplify the selection process.

Model Breakdown: QuantaPulse™ T15 80-5-6

  • T15 – Indicates a DN15 connection size, suitable for small capacity chemical dosing or water treatment applications.

  • 80 – Indicates the rated flow of 80 liters per hour (LPH), ensuring steady delivery for small-scale applications.

  • 5 – Represents the maximum operating pressure of 5 Bar, suitable for handling fluids in moderately pressurized systems.

  • 6 – Denotes a 60-watt motor, providing the power needed for continuous, reliable dosing operations.

Models Overview

Explore our most commonly supplied Quantapulse™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.

Model List:

  • QuantaPulse T15 80-5-6

  • QuantaPulse T15 100-5-6

  • QuantaPulse T15 130-4-6

  • QuantaPulse T15 150-3-6

  • QuantaPulse T6 10-10-6

  • QuantaPulse T6 20-10-6

  • QuantaPulse T6 40-7-6

  • QuantaPulse T10 60-6-6

Power Supply

  • Standard Configuration
    The QuantaPulse™ T-Series is powered by a 380V three-phase motor, with available motor capacities up to 0.06 kW. Other voltage configurations, including single-phase, are available upon request.
