QuantaPulse™ | Precision in Every Drop

Dose Smarter, Flow Better.

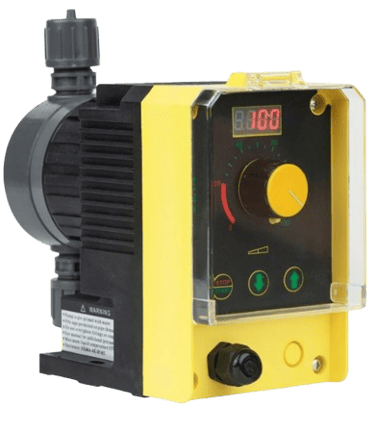

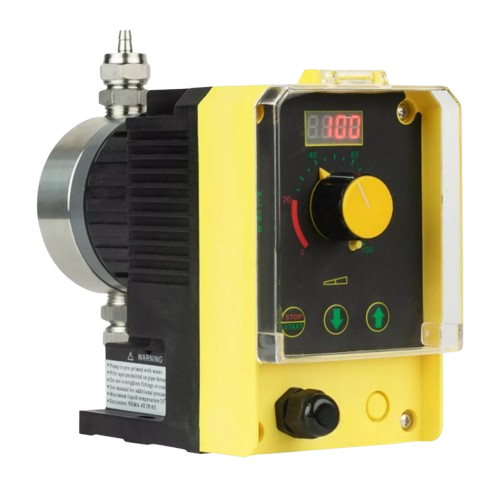

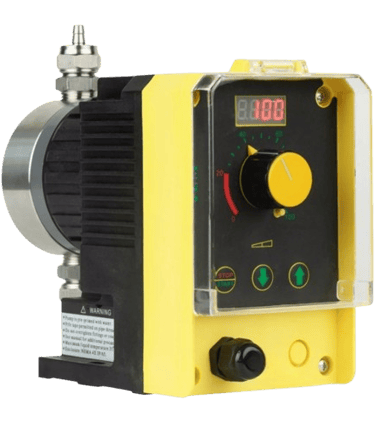

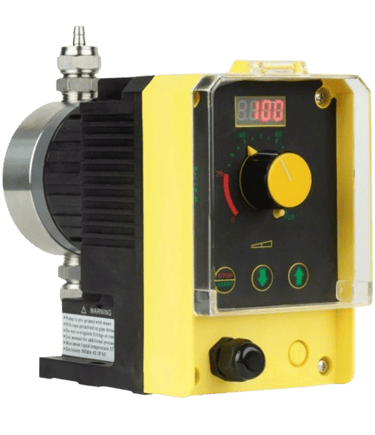

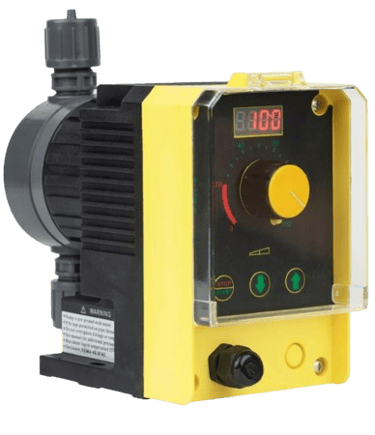

QuantaPulse™ by Hanstens is a high-performance mechanical diaphragm metering pump designed for precise and consistent fluid dosing.

Engineered for chemical compatibility and long-term durability, QuantaPulse™ ensures accurate delivery across a wide range of industrial and water treatment applications.

With adjustable stroke control, rugged construction, and flexible installation options, QuantaPulse™ offers reliable performance you can count on drop after drop.

Key Specifications

• Flow Rate

  Adjustable flow capacity ranging from 1 to 20 L/h, catering to various dosing requirements.

• Pressure Range

  Operates efficiently up to 10 bars, suitable for various light-duty applications.

• Stroke Frequency

  Manually adjustable to match specific dosing needs.

• Power Supply

  Standard 30 Watts, 220V single-phase, ensuring compatibility with common power sources.

Materials of Constructions

• Pump Head Options
  Available in PVC, PVDF, and SS316, providing excellent chemical compatibility and long-term durability for a wide range of dosing applications.

• Diaphragm
  Equipped with a composite PTFE diaphragm, specifically reinforced for extended service life and resistance to aggressive chemicals.

• Check Valve
  Constructed from the same materials as the pump head to ensure full system compatibility and reliable performance.

• Valve Ball
  Available in Ceramic for maximum efficiency and durability.

Sizing Guide

Choosing the right dosing pump starts with understanding your flow rate, pressure, and motor requirements. Each QuantaPulse™ model is clearly labeled to simplify the selection process.

Model Breakdown: QuantaPulse™ N5 10-3-3

• N5 – Indicates a 5x8 mm hose connection, ideal for small capacity chemical dosing or water treatment applications.

• 10 – Indicates the rated flow of 10 liters per hour (LPH), ensuring steady delivery for small-scale applications.

• 3 – Represents the maximum operating pressure of 3 Bar, suitable for handling fluids in moderately pressurized systems.

• 3 – Denotes a 30-watt motor, providing the power needed for continuous, reliable dosing operations.

Models Overview

Explore our most commonly supplied Quantapulse™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.

Model List:

• QuantaPulse N5 10-3-3

• QuantaPulse N5 12-2-3

• QuantaPulse N5 15-2-3

• QuantaPulse N5 20-1-3

• QuantaPulse N5 1-10-3

• QuantaPulse N5 4-8-3

• QuantaPulse N5 5-5-3

• QuantaPulse N5 8-4-3

Power Supply

• Standard Configuration
  The QuantaPulse™ N-Series is powered by a 220V Single-phase motor, with available motor capacities up to 0.03 kW.
