Exiflion™ | Best for Drain water

Consistent.
Unyielding.

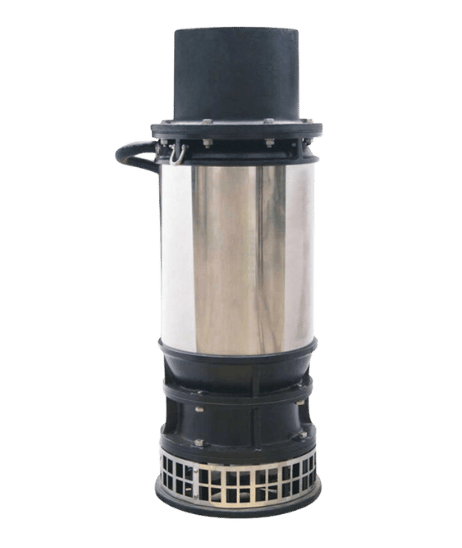

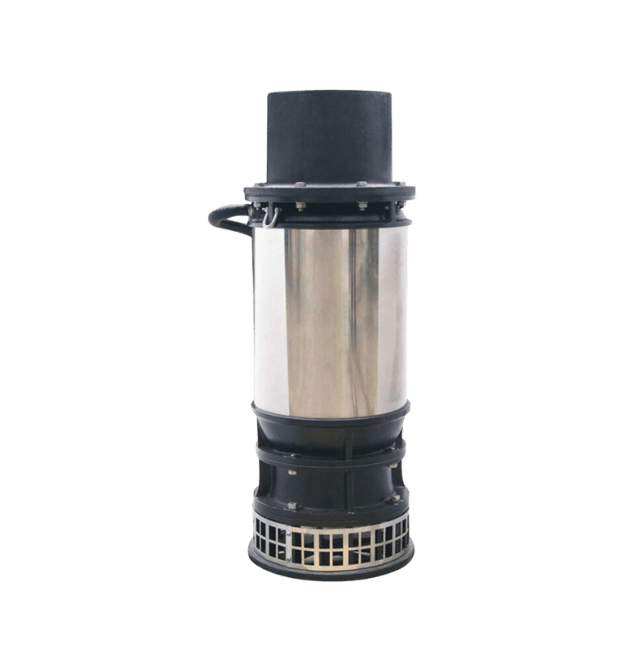

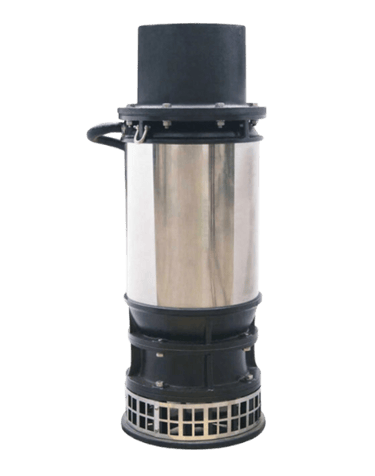

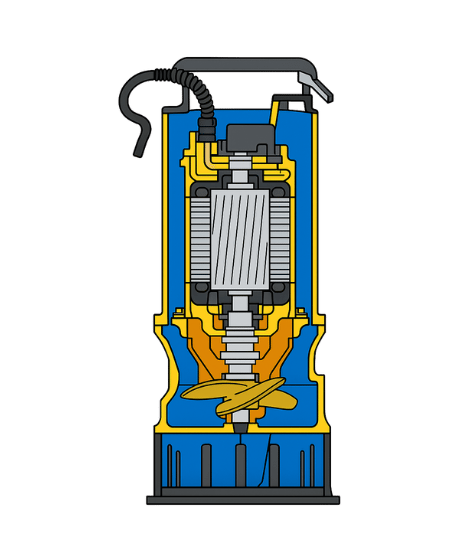

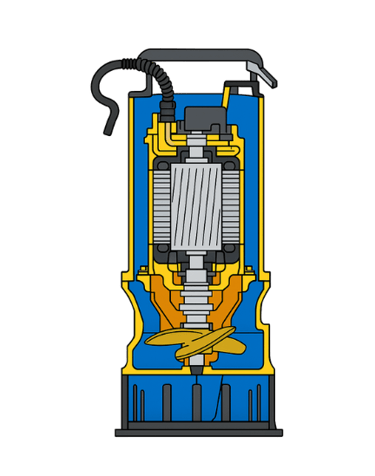

Exiflion™ by Hanstens is a Lightweight yet robust submersible drainage pump designed for agriculture, construction, and industrial water management. Engineered to handle large water volumes, soft solids, and mild slurry, it delivers continuous, efficient performance even in harsh conditions.

Key Specifications

• Flow Capacity
  Handles flow rates up to 420 m³/h, meeting a wide range of wastewater and stormwater system needs.

• Head Range
  Delivers heads up to 10 meters, suited for low lift requirements and backpressure conditions.

• Motor Power Options
  Available in 3.7 kW to 11 kW configurations for medium duty drainage systems.

• Solids Handling
  Equipped with a semi-open impeller capable of passing fibrous and particulate matter, reducing clogging risks.

Materials of Construction

• Pump Casing & Base
  Built with a SUS304 stainless steel body and FC200 cast iron base, this robust structure ensures superior corrosion resistance, mechanical strength, and vibration stability during continuous submersion and operation.

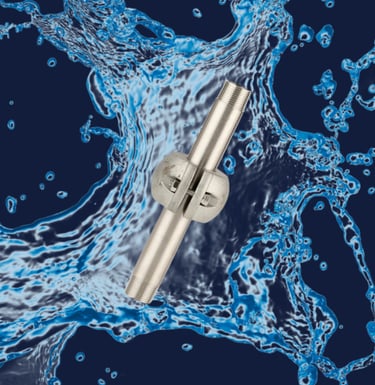

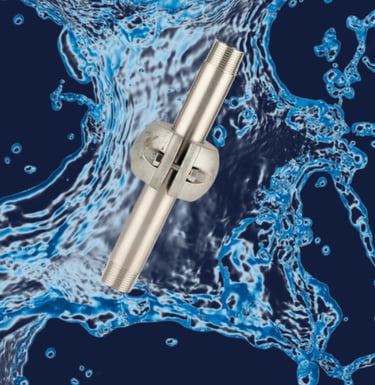

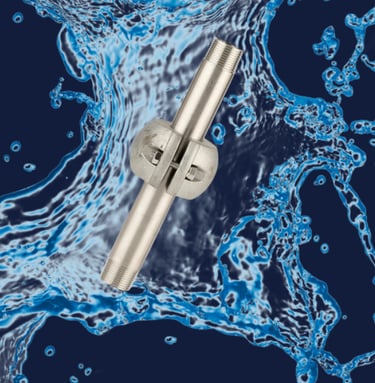

• Main Shaft
  Precision-engineered SUS304 shaft for durability, alignment accuracy, and extended service life.

• Motor Casing
  Constructed with a SUS304 stainless steel frame and bronze upper cover with bearing bracket, the assembly provides exceptional structural strength, corrosion resistance, and vibration stability. The combination of stainless steel rigidity and bronze’s anti-friction properties ensures smooth, reliable motor alignment even under continuous operation.

Premium Mechanical Seal
Dual mechanical seals (Carbon-Ceramic + SiC/SiC) ensure leak-free operation and excellent heat resistance in demanding applications.

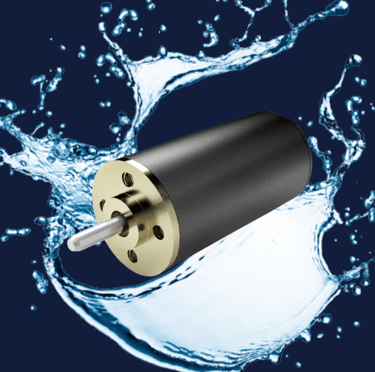

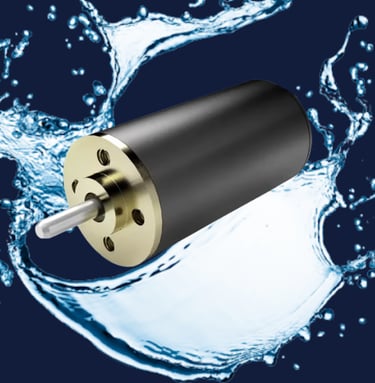

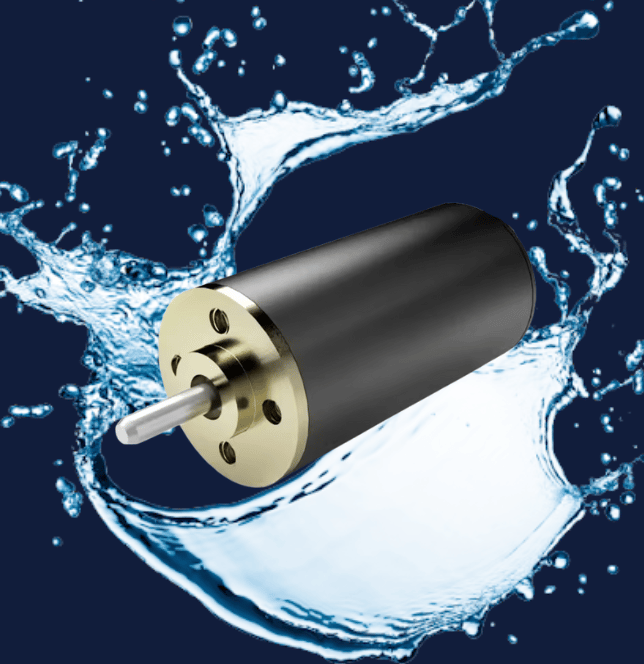

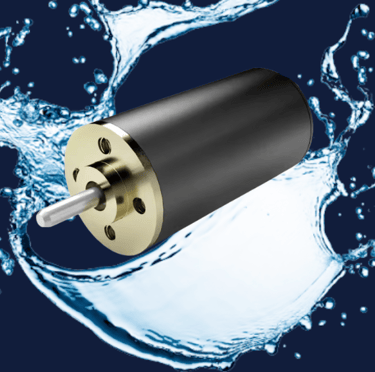

High Efficiency Motor
Dry-type motor (oil-free) design minimizes maintenance and prevents contamination risks.

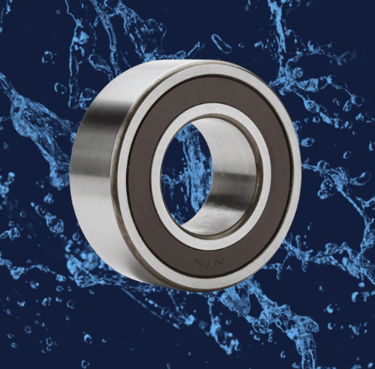

Precision Bearing
Fitted with premium NSK/SKF C3 ball bearings, offering low noise, high precision, and extended operational reliability.

Premium Motor Cover
Manufactured from bronze, combining strength and anti-friction properties to stabilize motor alignment and minimize vibration.

Key Feautures

Anode Protection
Equipped with two aluminum anodes to protect metallic components from electrochemical corrosion, extending the pump’s lifespan.

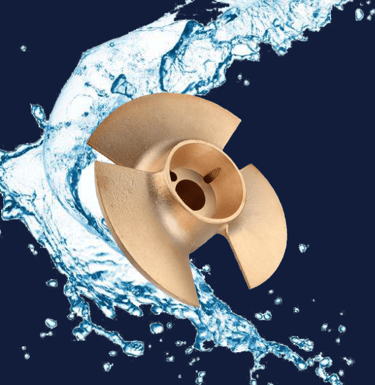

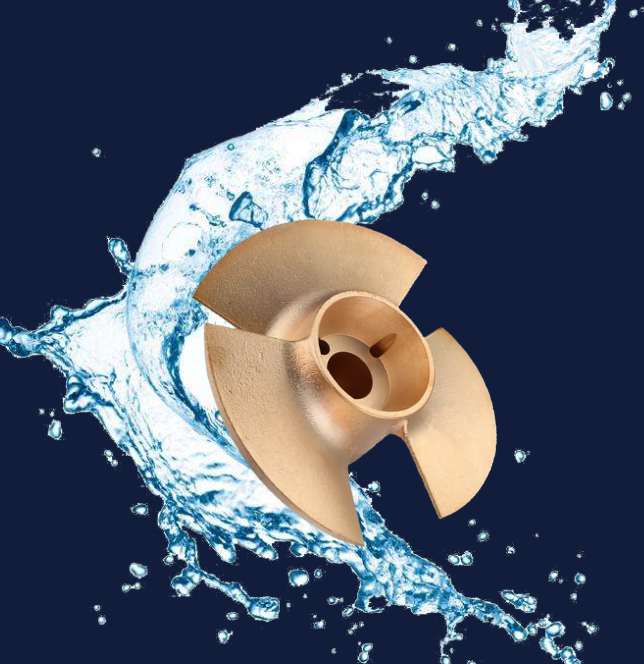

Premium Impeller
High-efficiency bronze impeller designed for smooth fluid flow, abrasion resistance, and improved hydraulic performance.

Sizing Guide

Choosing the right Exiflion™ pump starts with understanding your required flow rate, system head, and motor capacity. Each model is clearly labeled for fast selection.

Model Breakdown: Exiflion T150 120-5-3.7

• T150 – Indicates a DN150 (6-inch) outlet diameter, suitable for medium-capacity discharge systems.

• 120 – Refers to the nominal flow rate of 120 m³/h, ensuring stable performance in medium-volume operations.

• 5 – Indicates the nominal head of 5 meters, ideal for sites with low vertical lift or pressure requirements.

• 3.7 – Denotes a 3.7 kW motor, delivering the power needed for continuous medium wastewater handling in tough environments.

Model Overview

Explore our most commonly supplied Exiflion™ T-Series submersible drainage pump configurations. Each model is engineered for efficient dewatering, water transfer, and solids-handling performance across a wide range of industrial and agricultural applications.

Model List:

• Exiflion™ T150 120-5-3.7
  Compact and efficient for light-duty dewatering and low-head drainage applications, passing particles up to 20 mm.

• Exiflion™ T200 210-4-5.5
  Ideal for mid-range water transfer and general construction site drainage, passing particles up to 22 mm.

• Exiflion™ T250 330-4-7.5
  Designed for consistent performance in sediment-heavy conditions, passing particles up to 23 mm.

• Exiflion™ T300 420-5-11
  A high-capacity unit built for large-scale dewatering, flood control, and municipal systems. Passing particles up to 23 mm.
