Exiflion™ | Best for Drain water

Consistent.
Unyielding.

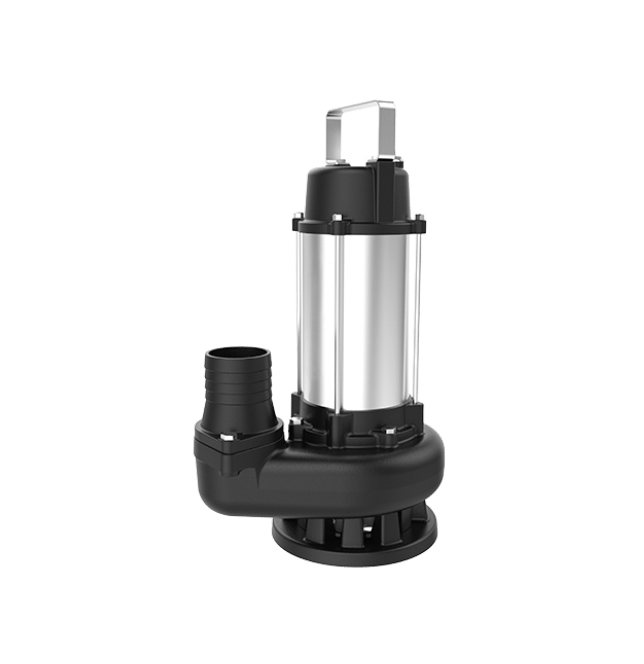

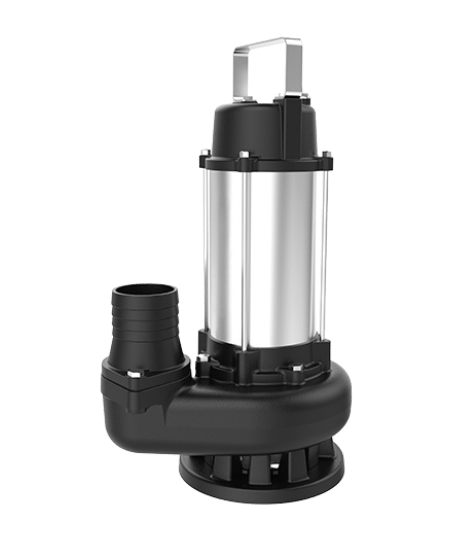

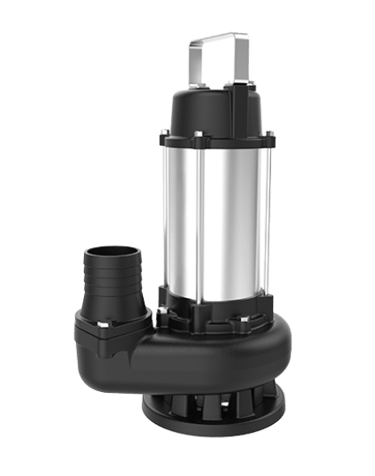

Exiflion™ by Hanstens is a Lightweight yet robust submersible drainage pump designed for agriculture, construction, and industrial water management. Engineered to handle large water volumes, soft solids, and mild slurry, it delivers continuous, efficient performance even in harsh conditions.

Key Specifications

• Flow Capacity
  Handles flow rates up to 45 m³/h, meeting a wide range of wastewater and stormwater system needs.

• Head Range
  Delivers heads up to 13 meters, suited for low lift requirements and backpressure conditions.

• Motor Power Options
  Available in 0.18 kW to 2.2 kW configurations for small single-phase drainage systems.

• Solids Handling
  Fitted with a semi-vortex impeller capable of passing fibrous and particulate matter, minimizing the risk of clogging and maintaining smooth operation.

• Thermal Protection
  Integrated motor thermal protector prevents overheating and ensures safe, continuous operation. Maintaining motor lifespan and reliability.

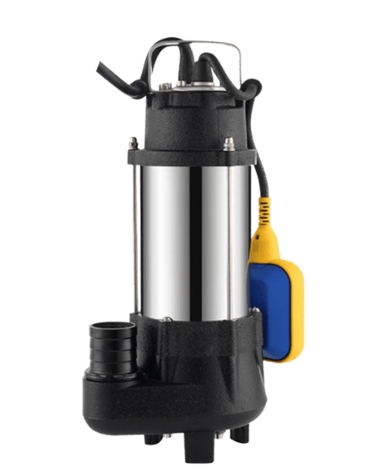

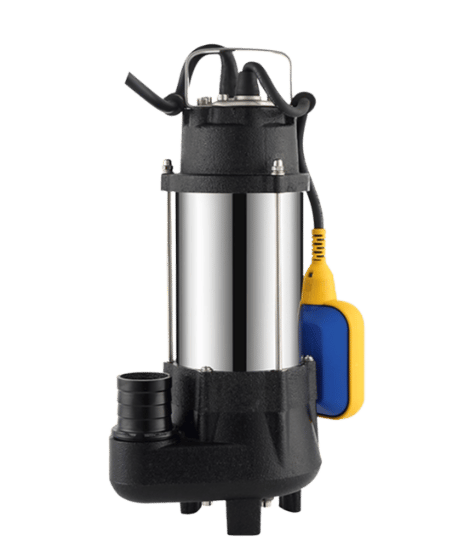

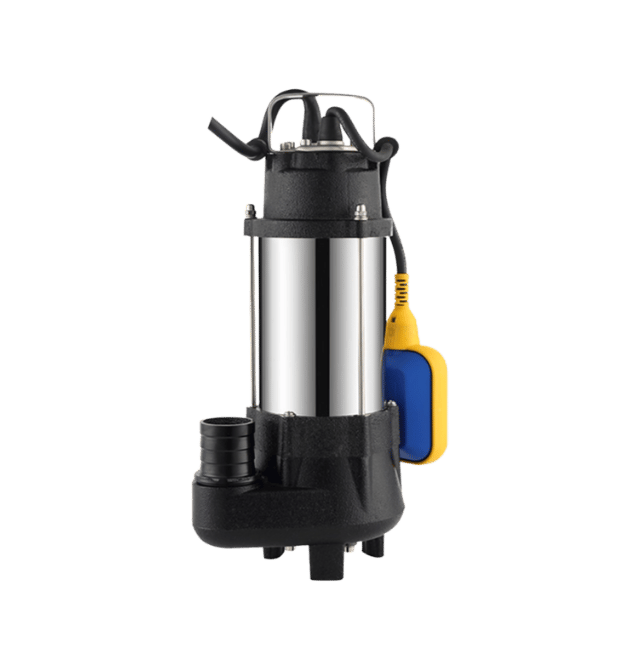

• Float Switch
  Available on selected models, the automatic float switch enables level-based control for unattended water level management.

Materials of Construction

• Pump Casing & Base
  Constructed with a stainless-steel casing and cast-iron base, providing excellent corrosion resistance, mechanical stability, and vibration control during continuous submersion and operation.

• Impeller
  Made from cast iron, the impeller delivers outstanding wear resistance and impact strength, ensuring reliable performance in sediment-laden or high-solids water conditions.

• Main Shaft
  Fitted with a ceramic main shaft, offering high precision, exceptional durability, and extended service life while maintaining alignment accuracy under load.

Sizing Guide

Choosing the right Exiflion™ pump starts with understanding your required flow rate, system head, and motor capacity. Each model is clearly labeled for fast selection.

Model Breakdown: Exiflion™ N80 35-13-1.1 A

• N80 – Indicates a DN80 (3-inch) outlet diameter, suitable for small-capacity discharge systems.

• 35– Refers to the maximum flow rate of 35 m³/h, ensuring stable performance in small-volume operations.

• 13 – Indicates the maximum head of 13 meters, ideal for sites with low vertical lift or pressure requirements.

• 1.1 – Denotes a 1.1 kW single-phase motor, delivering the power needed for continuous small wastewater handling.

Model Overview

The Exiflion™ N-Series represents Hansten's compact and economical range of submersible drainage pumps. Designed for versatility and easy handling, each model offers dependable water transfer performance with minimal maintenance requirements — ideal for small-scale construction, residential, and agricultural use

Model List:

• Exiflion™ N25 7-7-0.18 A
  Lightweight and efficient, suitable for general-purpose drainage and clean water transfer.

• Exiflion™ N25 9-8-0.25 A
  Combining compact design with higher flow output for small ponds, basins, and household applications.

• Exiflion™ N50 18-9-0.55 A
  Offering a reliable mid-range option for continuous-duty drainage and irrigation systems.

• Exiflion™ N50 21-11-0.75 A
  Designed for more demanding environments that require stable output and consistent lifting power.

• Exiflion™ N80 35-13-1.1 A
  Built with enhanced durability, it serves well in light industrial and agricultural water management.

• Exiflion™ N80 40-12-1.5
  Providing higher throughput and solid reliability for construction drainage and tank emptying operations.

• Exiflion™ N100 45-10-2.2
  Engineered for extended duty and larger flow requirements while maintaining quiet, efficient performance.
