QuantaFlow™ | The Flow That Holds

Reliable Pressure. Lasting Power.

QuantaFlow™ by Hanstens represents a premium line of centrifugal pumps, available in both single-stage and multistage designs, engineered to deliver consistent pressure and flow in demanding applications. Whether for water supply, industrial processes, or HVAC systems, QuantaFlow™ ensures efficient and reliable operation.

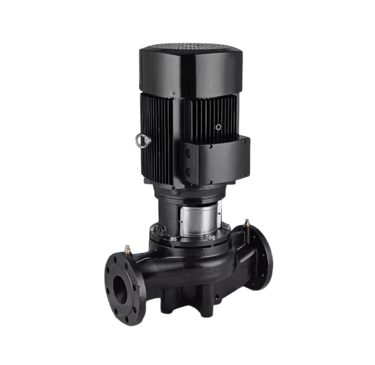

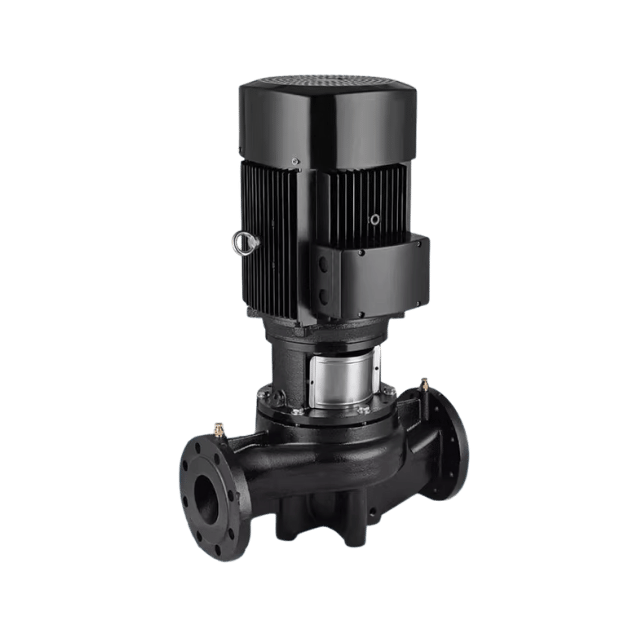

QuantaFlow™ T-Series

Vertical Single-Stage Pumps

The T-Series features a space-saving vertical design, making it ideal for installations with limited floor space. Built with a durable cast iron pump body, a stainless-steel impeller, and high-efficiency motors, these pumps are designed for applications requiring high pressure and reliable flow rates.

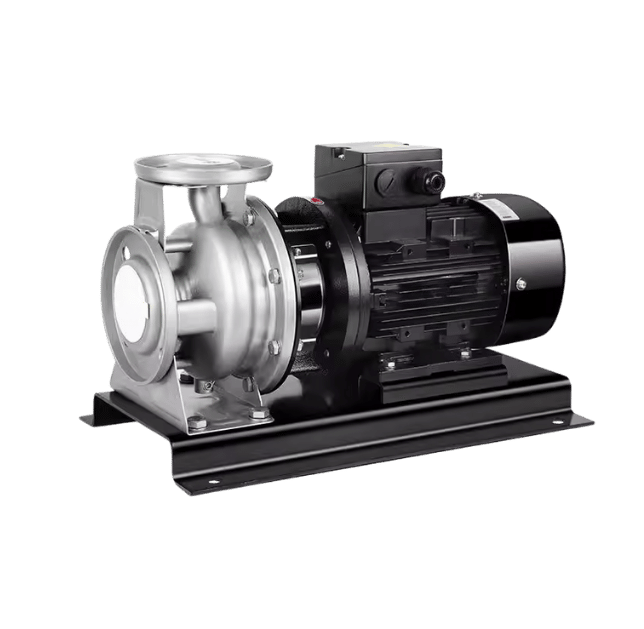

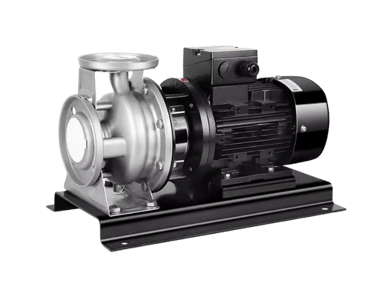

QuantaFlow™ S-Series

Horizontal Single-Stage Pumps

The S-Series features a horizontal single-stage design, ideal for applications requiring straightforward installation and easy maintenance. Built with robust construction and efficient motors, these pumps are well suited for industrial applications requiring reliable performance and consistent flow.

Key Specifications

• Centrifugal design available in vertical (T-Series) and horizontal (S-Series) configurations

• Stainless steel impeller (T-Series) for enhanced corrosion resistance and durability, with stainless steel wetted components (S-Series).

• Compact form factor ideal for both space-saving vertical setups and inline horizontal installations

• Powered by Hanstens IE3 high-efficiency motors for reliable, energy-saving performance

• Operating temperature range: –20°C to +120°C

• Maximum working pressure: up to 16 bar

• DIN flange Connection standards for easy system integration

Sizing Guide

Choosing the right pump starts with understanding your flow rate, pressure, and motor requirements. Each QuantaFlow™ model is clearly labeled to simplify the selection process.

Model Breakdown: QuantaFlow™ S40 25-30-4

• T/S – Indicates a vertical (T) or horizontal (S) Configurations

• 40 - Indicates a DN40 (1.5-inch) outlet diameter

• 25 – Refers to the nominal flow rate of 25 m³/h

• 30 – Represents the nominal head of 30 meters

• 4 – Denotes the motor power of 4 kW

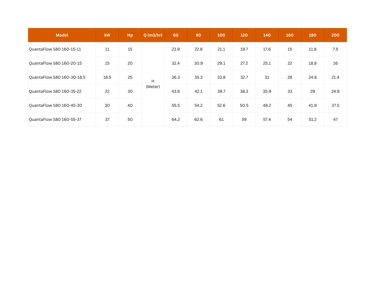

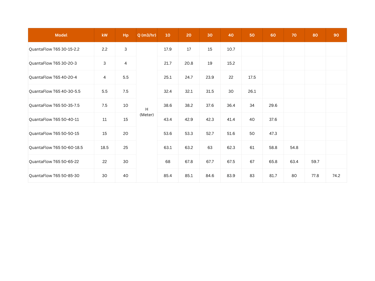

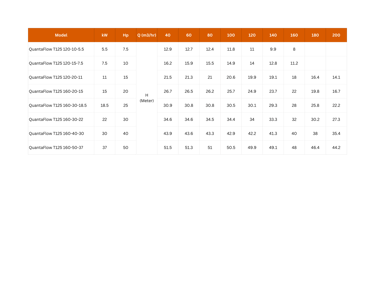

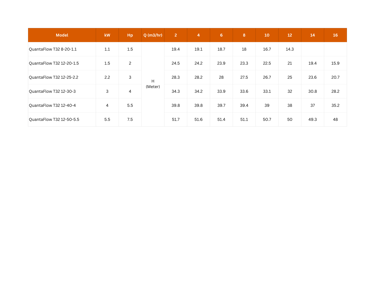

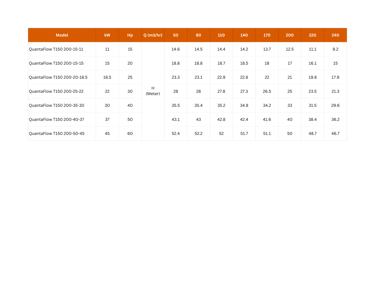

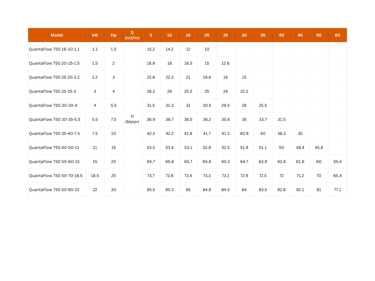

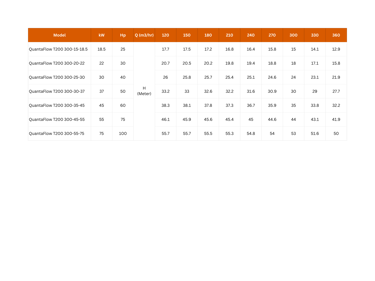

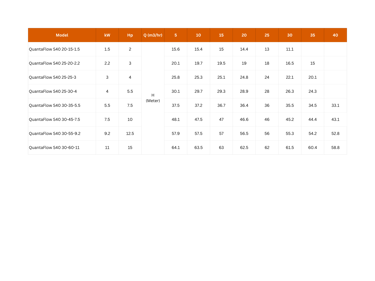

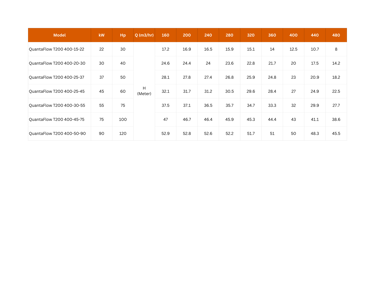

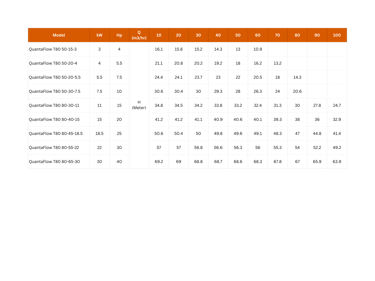

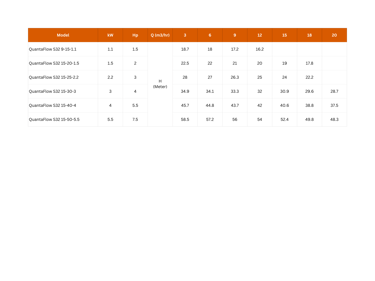

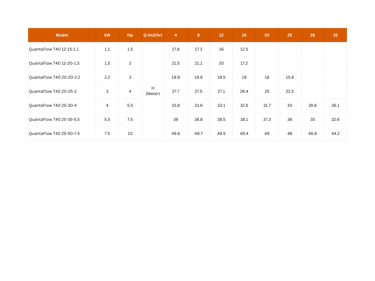

Models Overview

Explore our most commonly supplied QuantaFlow™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.
