PiventaThreada™ | Pipe Threading

Efficient. Precise. Reliable.

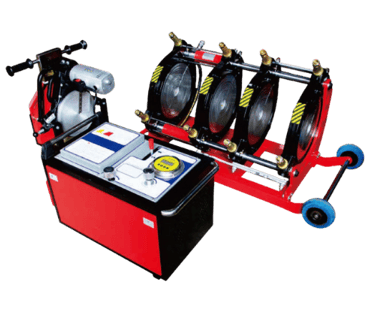

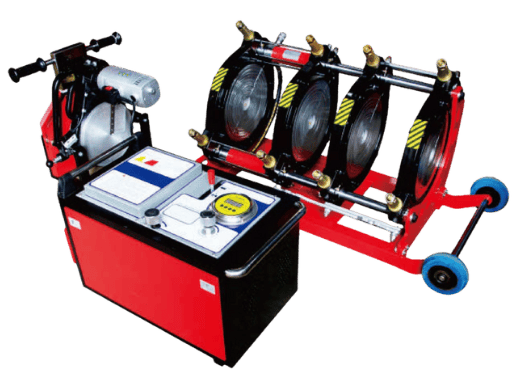

PiventaFusiona™ is a professional-grade butt fusion welding machine designed for joining plastic pipes with exceptional strength and accuracy.

Built with a hydraulic frame, digital temperature-controlled heating plate, and electric planning tool, it ensures reliable fusion across a wide range of pipe diameters.

Key Specifications

• Welding Range: 40 – 1600 mm, suitable for both small and large diameter pipes.

• Hydraulic System: Powerful and responsive, available in 6 MPa and 10 MPa configurations for efficient operation and precise control.

• Clamping Frame: Rigid 4-clamp design ensures secure holding and accurate pipe alignment.

• Heating Plate: PTFE-coated with digital temperature control, reaching a maximum temperature of 270 °C for consistent fusion results.

• Planning Tool: Electrically driven with integrated safety switch, delivering smooth and reliable pipe end preparation.

• Premium Tool Box included

Model Overview

Choosing the right PiventaFusion™ hydraulic butt fusion machine is simple. Each model is engineered to match your welding capacity and pipe size range.

• PiventaFusion™ H160 – Hydraulic Butt Fusion Machine (40–160 mm)
  Compact and reliable, ideal for small-diameter welding in light-to-medium duty projects. Operates on 220V power with a total output of 4.45 kW and delivers up to 6.3 MPa hydraulic pressure.

• PiventaFusion™ H200 – Hydraulic Butt Fusion Machine (50–200 mm)
  A versatile choice for small-to-mid size pipelines, providing stable performance and easy operation. Runs on 220V with 4.65 kW power and a maximum hydraulic pressure of 6.3 MPa.

• PiventaFusion™ H250 – Hydraulic Butt Fusion Machine (63–250 mm)
  Balanced for utility works and site projects, handling mid-range diameters with consistency. Uses 220V power with 5.35 kW capacity and a hydraulic pressure of 6.3 MPa.

• PiventaFusion™ H315 – Hydraulic Butt Fusion Machine (75–315 mm)
  Suited for contractors requiring dependable welding across medium-size pipes. Powered at 220V with 6.55 kW and reaching a maximum hydraulic pressure of 6.3 MPa.

• PiventaFusion™ H355 – Hydraulic Butt Fusion Machine (90–355 mm)
  Designed for heavier workloads, ensuring solid performance in extended site operations. Operates at 220V with 8.35 kW output and 6.3 MPa hydraulic pressure.

• PiventaFusion™ H450 – Hydraulic Butt Fusion Machine (180–450 mm)
  Steps into larger pipeline welding with higher strength, perfect for municipal or industrial use. Runs on 380V with 10.35 kW power and 10 MPa hydraulic pressure.

• PiventaFusion™ H630 – Hydraulic Butt Fusion Machine (315–630 mm)
  Heavy-duty unit offering strength and durability for large-scale pipeline systems. Powered by 380V supply, delivering 12.85 kW with up to 10 MPa hydraulic pressure.

• PiventaFusion™ H800 – Hydraulic Butt Fusion Machine (450–800 mm)
  Industrial-grade machine designed for demanding pipeline installations in waterworks and infrastructure. Operates on 380V with 18.45 kW total power and 10 MPa hydraulic pressure.

• PiventaFusion™ H1000 – Hydraulic Butt Fusion Machine (630–1000 mm)
  Delivers robust welding capability for high-volume, wide-diameter projects. Runs on 380V with 24.5 kW output and hydraulic pressure of 10 MPa.

• PiventaFusion™ H1200 – Hydraulic Butt Fusion Machine (630–1200 mm)
  Engineered for heavy infrastructure welding, providing maximum efficiency and precision. Uses 380V power with 27.5 kW total output and 10 MPa hydraulic pressure.

• PiventaFusion™ H1400 – Hydraulic Butt Fusion Machine (1000–1400 mm)
  A large-diameter specialist, built for industrial and utility pipelines at scale. Operates at 380V with 33 kW power output and 10 MPa hydraulic pressure.

• PiventaFusion™ H1600 – Hydraulic Butt Fusion Machine (1200–1600 mm)
  The flagship model, built to handle the biggest challenges in pipeline welding with unmatched power. Runs on 380V with 41 kW output and 10 MPa hydraulic pressure.
