HyperFluid™ | Flow Without Compromise

Unstoppable Pressure.
Unmatched Versatility.

HyperFluid™ by Hanstens delivers next-generation diaphragm pump technology, engineered for tough, high-viscosity, and chemically aggressive applications. With options in both air-operated and electric-operated configurations.

HyperFluid™ offers flexible, pulse-stable fluid transfer across industries. Designed for reliability, dry-run capability, and reduced maintenance, HyperFluid™ keeps your operation flowing, no matter the challenge.

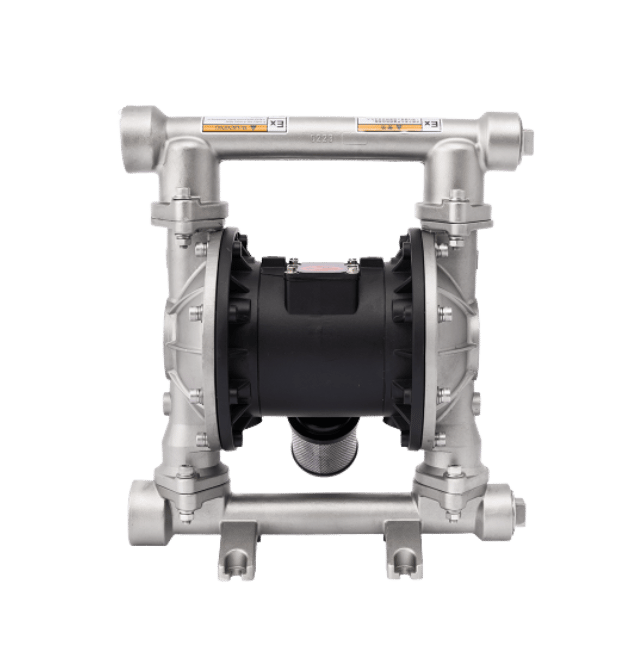

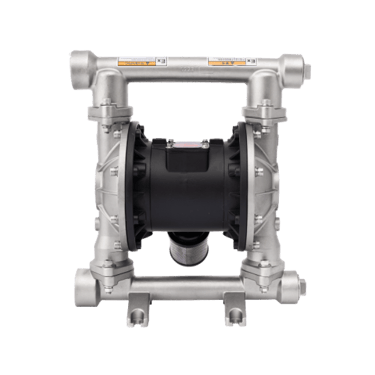

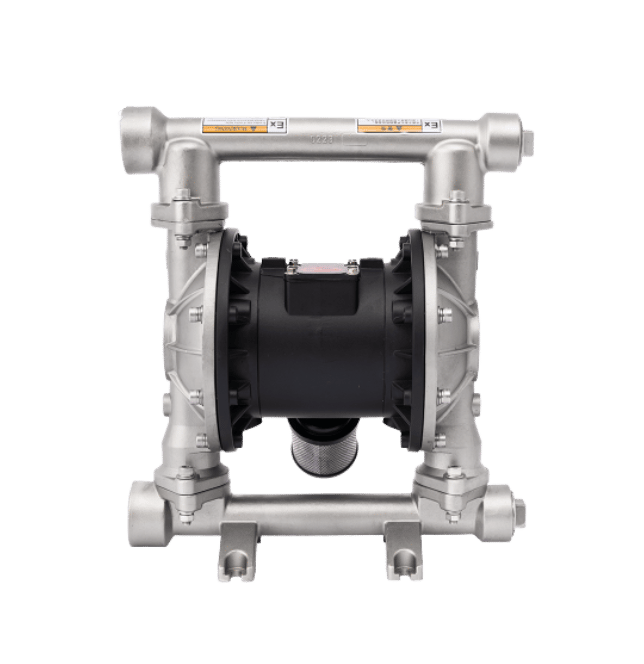

HyperFluid™ LLFF

Built for Food, Backed by Stainless Strength

From sauces to syrups, HyperFluid™ LLFF is designed to meet the stringent demands of food-grade applications. With a full stainless steel 316 body and wetted components, this pump offers robust resistance to corrosion and ensures hygienic fluid transfer in sensitive environments.

Material Construction

• Pump Body: Stainless Steel 316 (L316)

• Valve Seat: Stainless Steel 316 (L316)

• Ball & Diaphragm: PTFE (Food-grade)

• Center Block: PP (for ≤0.5″), Aluminum (for ≥1″)

Technical Highlights

• Inlet/Outlet Sizes: 0.5” to 3″

• Connection Types: BSP Thread, DIN Flange (3")

• Maximum Pressure: 100–120 psi (7–8.4 bar)

• Solid Handling Capability: Up to 9.4 mm (0.37 inch)

Ideal For:
Food processing, beverage production, syrups, sauces, edible oils, and other sanitary fluid transfer needs.

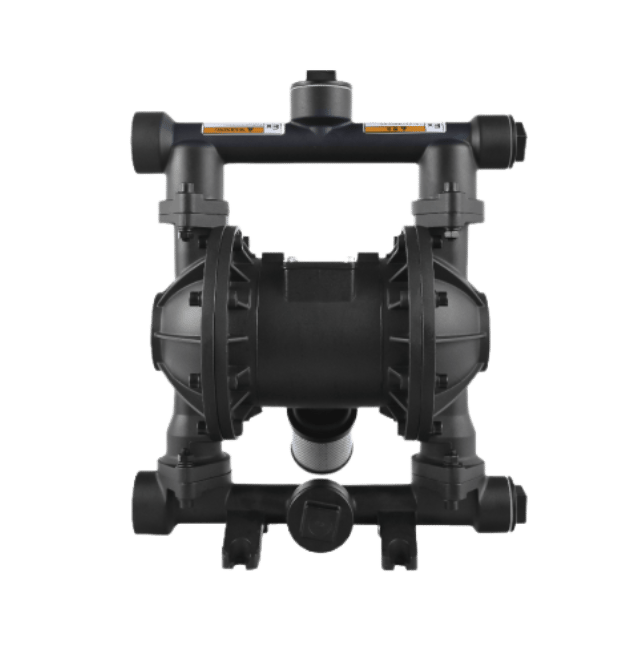

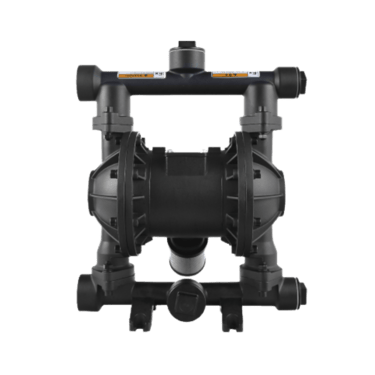

HyperFluid™ ASFF

Built for Oils. Balanced for Performance.

From synthetic lubricants to mineral-based fluids, HyperFluid™ ASFF is engineered to deliver consistent and efficient transfer of petroleum derivatives. Constructed with an aluminum body and stainless-steel valve seat, and lined with PTFE for internal contact surfaces, it’s the go-to solution for non-corrosive yet sensitive applications.

Material Construction

• Pump Body: Aluminum Alloy

• Valve Seat: Stainless Steel 304

• Ball & Diaphragm: PTFE

• Center Block: PP (for ≤0.5″), Aluminum (for ≥1″)

Technical Highlights

• Inlet/Outlet Sizes: 0.5” to 3″

• Connection Types: BSP Thread, 3″ DIN Flange

• Maximum Pressure: 100–120 psi (7–8.4 bar)

• Solid Handling Capability: Up to 9.4 mm (0.37 inch)

Ideal For:
Mineral oils, synthetic lubricants, non-corrosive petrochemicals, and light industrial fluids.

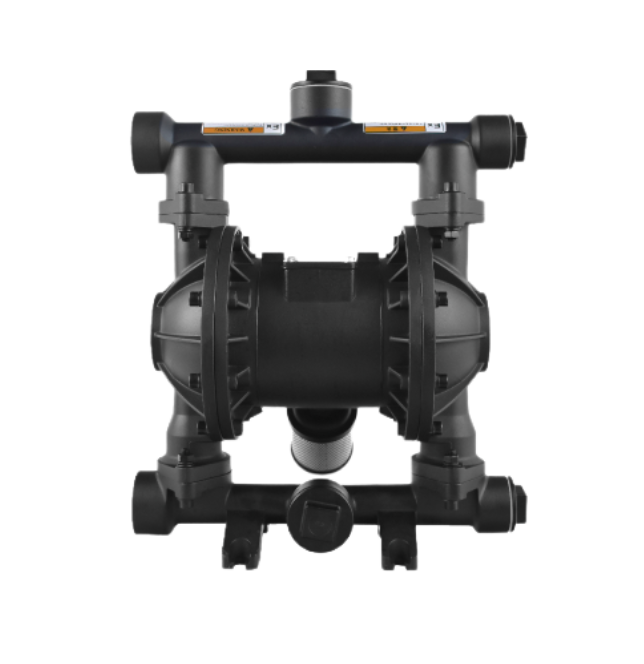

HyperFluid™ ASBB

Built to Work. Ready for the Rough.

Designed for rugged environments and everyday reliability, HyperFluid™ ASBB handles non-aggressive fluids like diesel, light oils, and coolant mixtures with ease. Featuring an aluminum body, stainless steel valve seat, and NBR (nitrile rubber) internals, it offers a cost-effective solution without compromising performance.

Material Construction

• Pump Body: Aluminum Alloy

• Valve Seat: Stainless Steel 304

• Ball & Diaphragm: NBR (Nitrile Rubber)

• Center Block: PP (for ≤0.5″), Aluminum (for ≥1″)

Technical Highlights

• Inlet/Outlet Sizes: 0.5” to 3″

• Connection Types: BSP Thread, 3″ DIN Flange

• Maximum Pressure: 100–120 psi (7–8.4 bar)

• Solid Handling Capability: Up to 9.4 mm (0.37 inch)

Ideal For:
Diesel fuel, light oils, coolant fluids, and general-purpose industrial transfer applications.

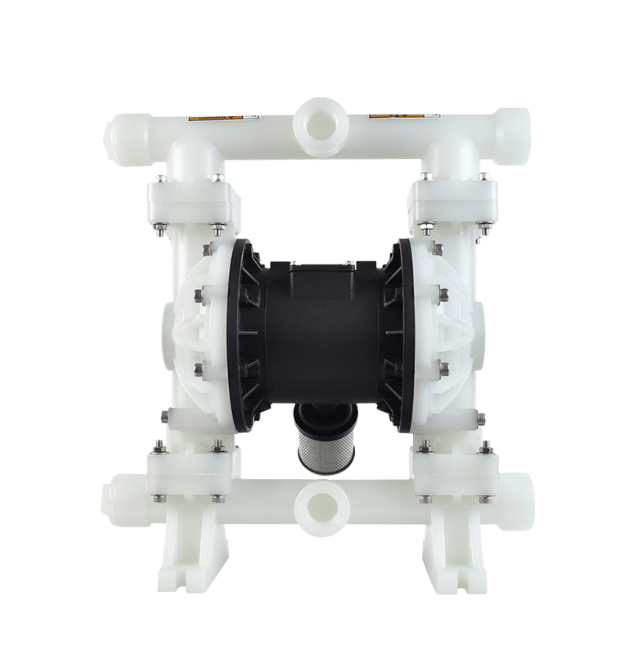

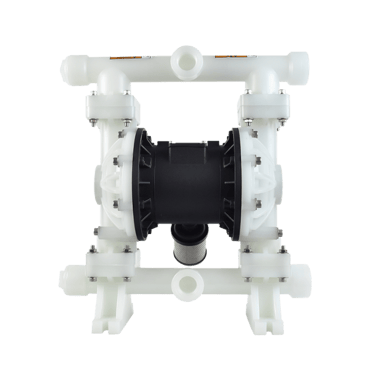

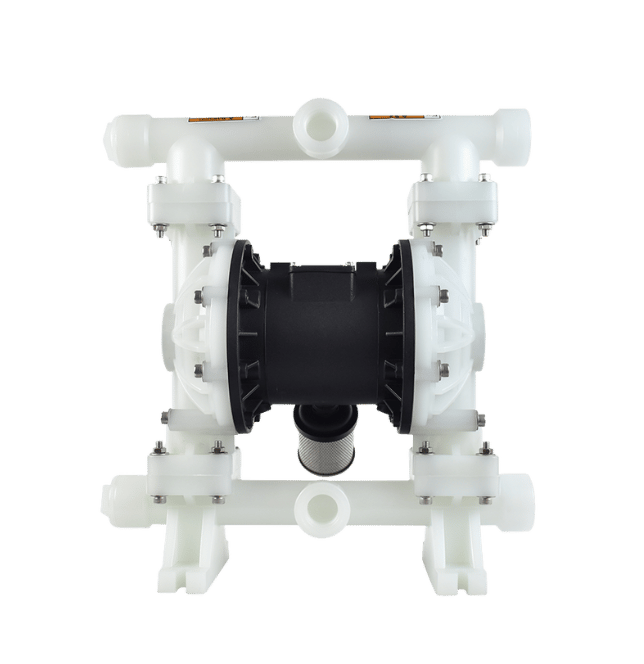

HyperFluid™ PPFF

Built for Chemicals. Trusted for Control.

Engineered for reliable chemical transfer, HyperFluid™ PPFF is ideal for low-to-medium concentration chemical applications. With a polypropylene (PP) body and PTFE internals, it offers solid resistance to corrosive fluids at room temperature.

Material Configuration:

• Body: Polypropylene (PP)

• Valve Seat: Polypropylene (PP)

• Ball & Diaphragm: PTFE

• Center Block: PP (for ≤1″), Aluminum (for ≥1.5″)

Size & Options:

• Inlet/Outlet Range: From 0.375″ to 3″

• Connection Type: BSP Thread, DIN Flange for 3″

• Max Pressure: 100–120 psi (7–8.4 bar)

• Solid Handling: Up to 9.4 mm (0.37 inch)

Ideal For:
Mild chemical solutions (10–30% concentration), cleaning agents, water treatment additives, and general chemical handling under 40°C.

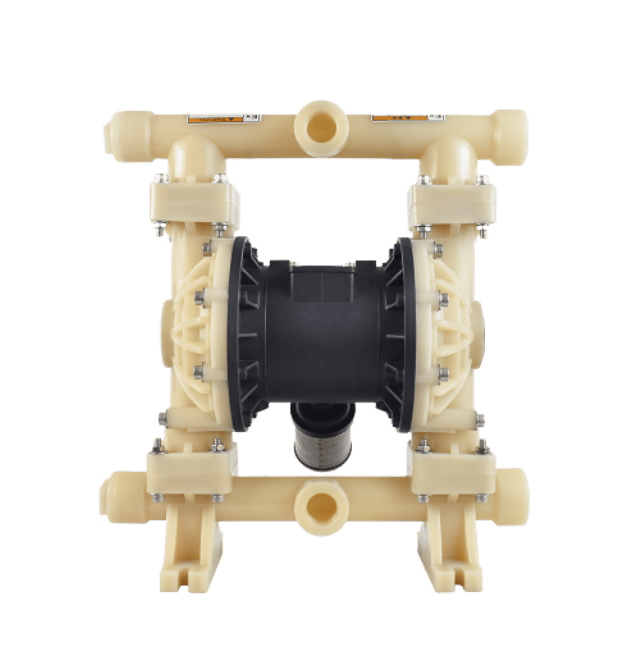

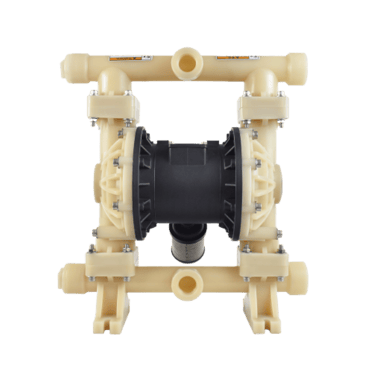

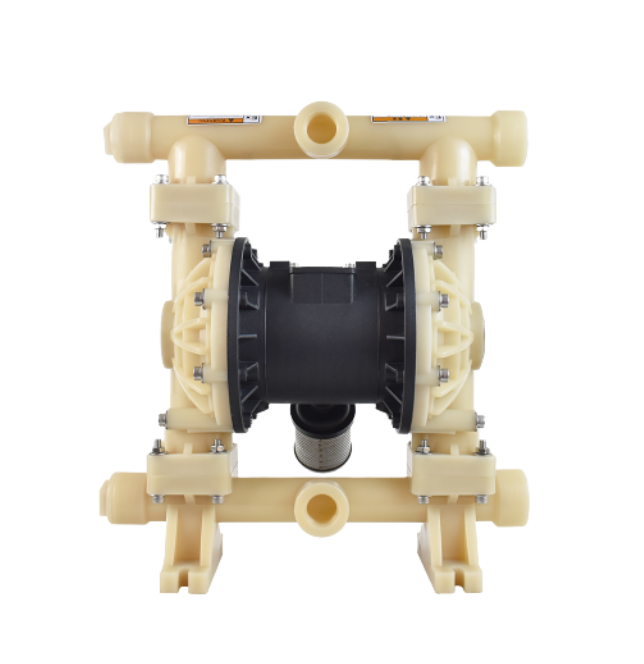

HyperFluid™ KKFF

Built for Extremes. Ready for the Unforgiving.

When chemicals get hotter and harsher, HyperFluid™ KKFF rises to the challenge. Constructed with premium PVDF and PTFE materials, it’s designed for highly aggressive media, concentrated acids/alkalis, and elevated temperatures.

Material Configuration:

• Body: PVDF

• Valve Seat: PVDF

• Ball & Diaphragm: PTFE

• Center Block: PVDF (for ≤0.5″), Aluminum (for ≥1″)

Size & Options:

• Inlet/Outlet Sizes: 0.5” to 3″

• Connection Types: BSP Thread, 3″ DIN Flange

• Maximum Pressure: 100–120 psi (7–8.4 bar)

• Solid Handling Capability: Up to 9.4 mm (0.37 inch)

Ideal For:
Highly acidic or alkaline solutions (>50% concentration), high-temperature fluids (50°C+), plating chemicals, aggressive solvents, and specialty chemical transfer in corrosive environments.

Sizing Guide

Choosing the right diaphragm pump starts with understanding your flow rate, pressure, and energy requirements. Each HyperFluid™ model is clearly labeled to simplify the selection process.

Model Breakdown: HyperFluid™ H50 570-8.4-11

• H50 – Indicates a DN50 BSP-threaded outlet (2").
  Note: For 3" models, the connection is upgraded to a DIN flange instead of BSP.

• 570 – Refers to the maximum flow rate of 570 liters per minute (LPM), ensuring high-throughput chemical or sanitary transfer.

• 8.4 – Represents the maximum working pressure of 8.4 bar, suitable for medium-pressure pneumatic systems.

• 11 – Suggests a recommended compressor power of 11 kW, typically fulfilled by an industrial screw compressor for continuous operation.

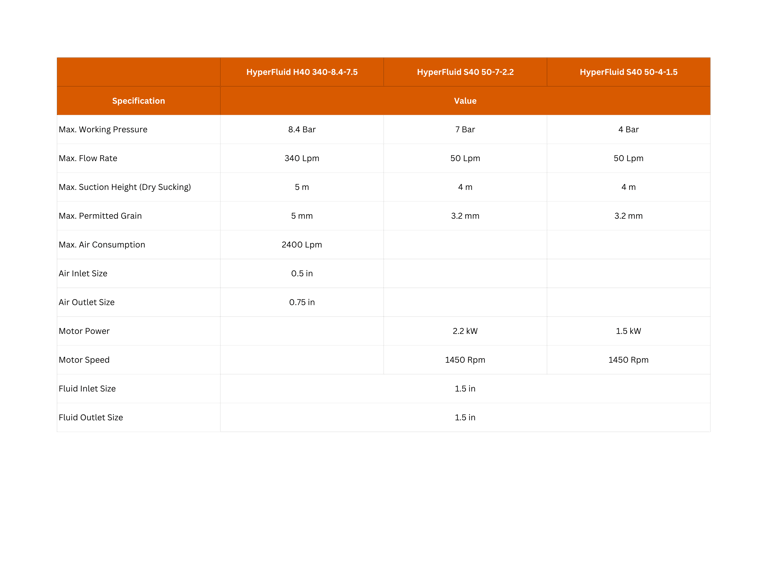

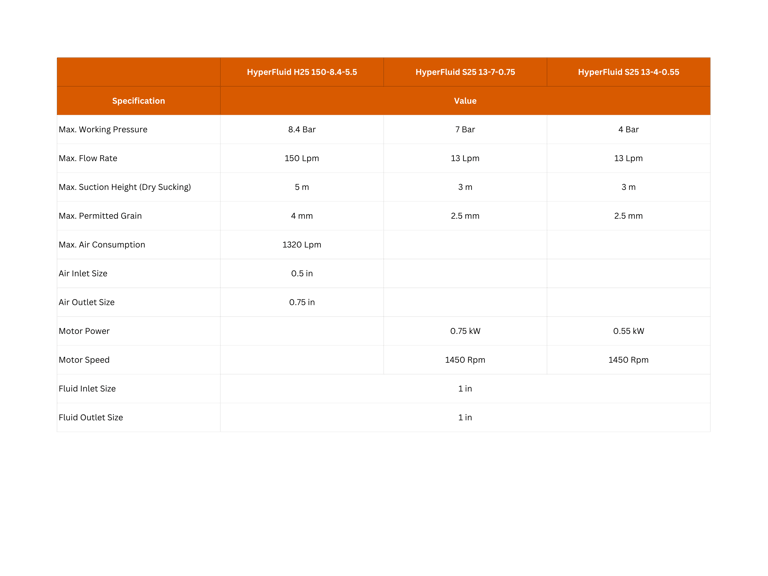

Models Overview

Explore our most commonly supplied HyperFluid™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.
