Sewrion™ | Best for Wastewater Reliability

Durable. Relentless.

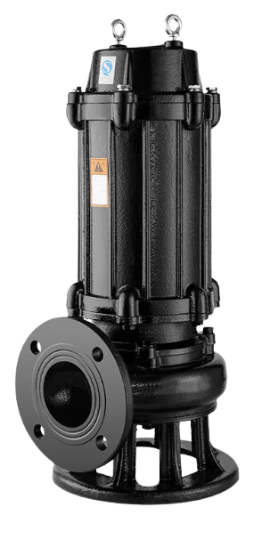

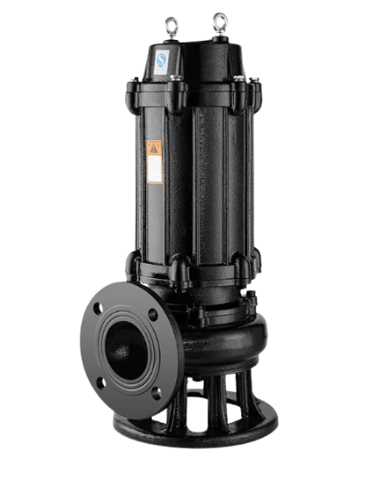

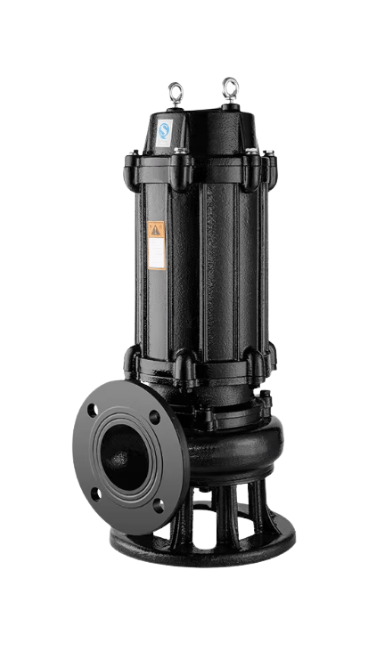

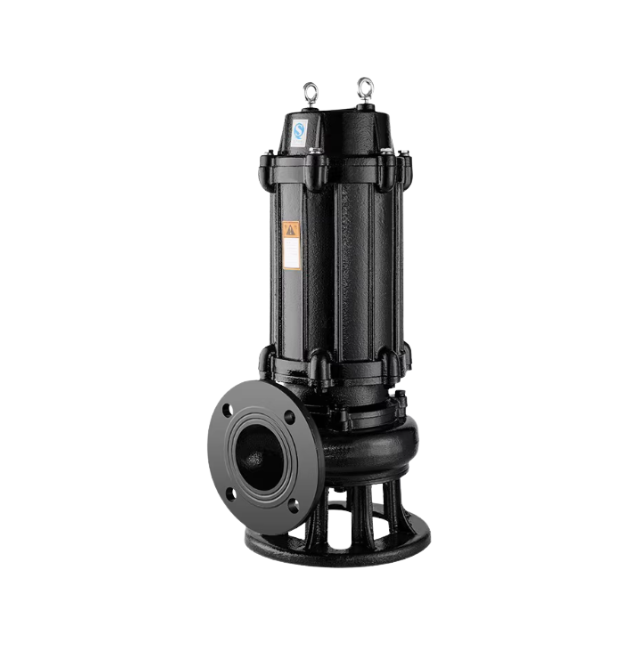

Sewrion™ by Hanstens delivers dependable performance in wastewater and sewage management. Designed for environments requiring robust solids handling, Sewrion™ combines durable construction with efficient operation to ensure uninterrupted service in challenging conditions.

Key Specifications

• Flow Capacity

  Handles flow rates up to 220 m³/h, accommodating a broad range of wastewater system demands.

• Head Range

  Delivers pumping heads up to 30 meters, suited for varied elevation and backpressure conditions.

• Motor Power Options

  Available in 0.75 kW to 15 kW configurations to suit light to heavy-duty applications.

• Solids Handling

  Equipped with a non-clogging impeller capable of passing large solids and fibrous materials, minimizing the risk of blockage.

• Monitoring Protection

  Optional thermal protection sensors and leakage probes for enhanced operational safety.

• Installation Flexibility

  Compatible with both free-standing and guide rail mounting for efficient on-site integration.

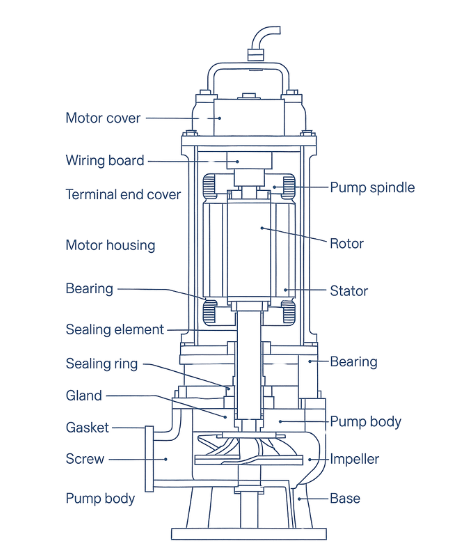

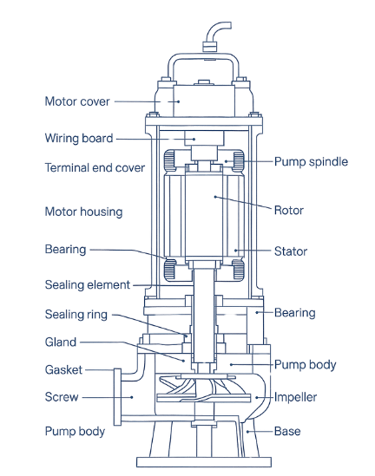

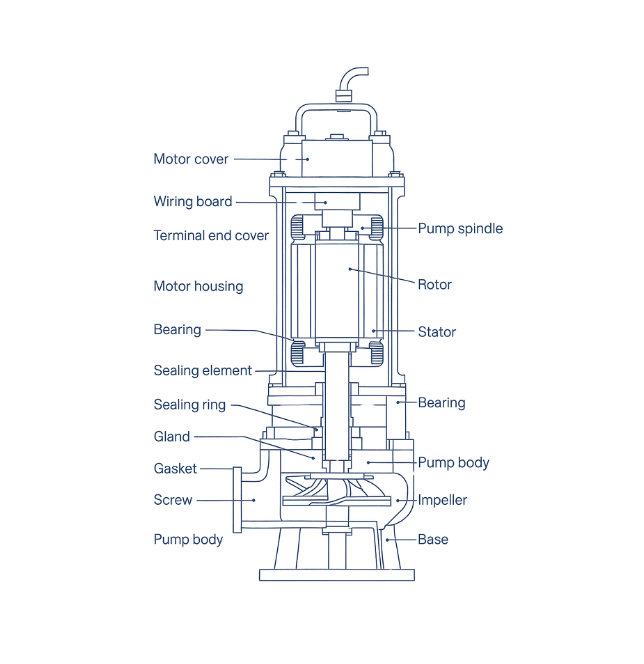

Materials of Construction

• Pump Casing

  Robust cast iron body ensures durability and corrosion resistance in harsh wastewater environments.

• Impeller

  Open-channel cast iron impeller optimized for clog-resistant performance and handling of solids.

• Shaft

  Constructed from corrosion-resistant stainless steel for extended operational life.

• Seals

  Dual-end mechanical seals with silicon carbide faces for secure sealing and minimal maintenance.

• Motor Housing

  Sealed cast iron motor enclosure with integrated thermal protection system.

• Wear Ring

  Replaceable wear ring located between impeller and pump body enhances efficiency and extends service life.

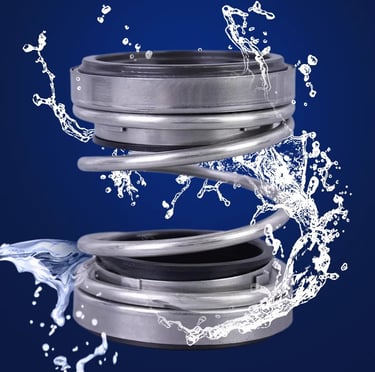

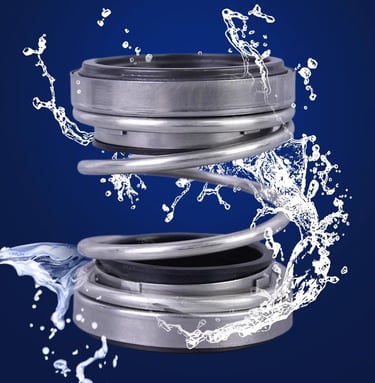

Heavy-Duty Shaft Seal
Precision mechanical seal design effectively prevents slurry ingress into the motor, improving protection and sealing strength.

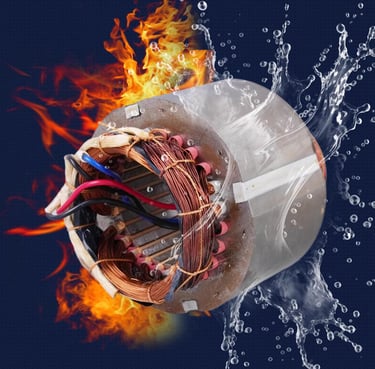

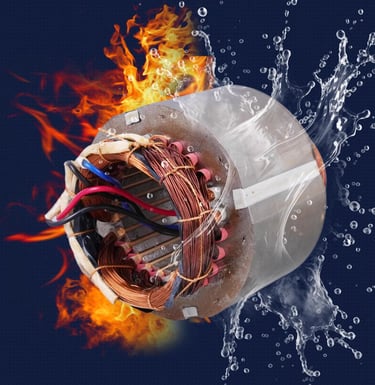

High Efficiency Motor
Equipped with a pure copper motor, triple insulation, and sealed rotor, ensuring consistent performance and long lifespan.

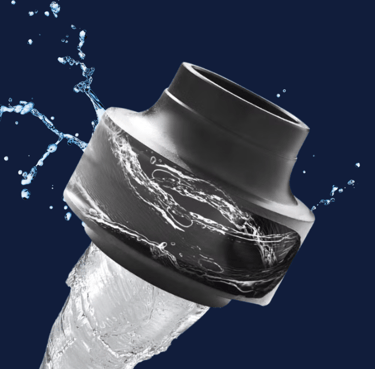

Enhanced Abrasion Resistance

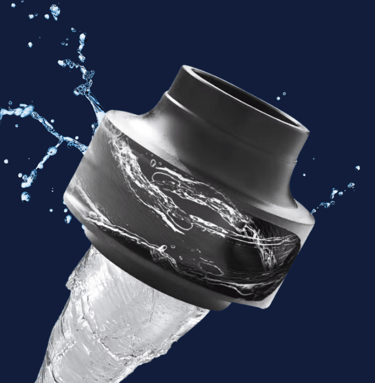

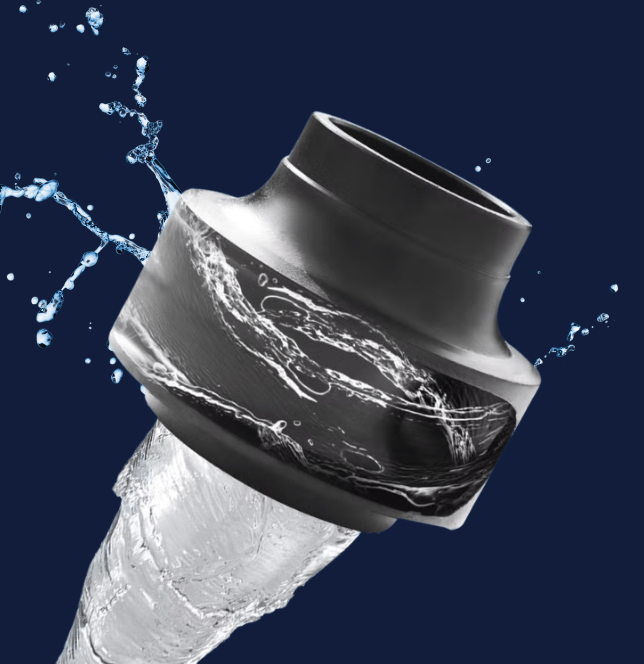

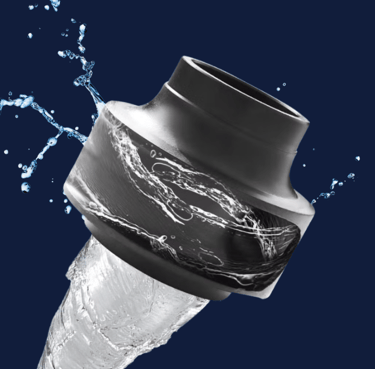

Features a cast iron open channel impeller with wide passageways to reduce clogging and tolerate fibrous solids in wastewater systems.

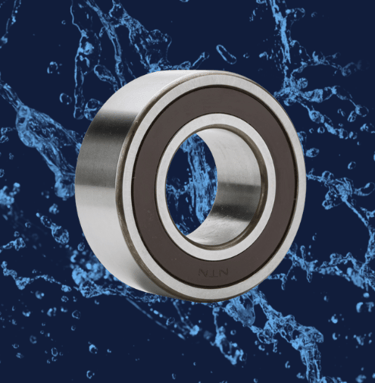

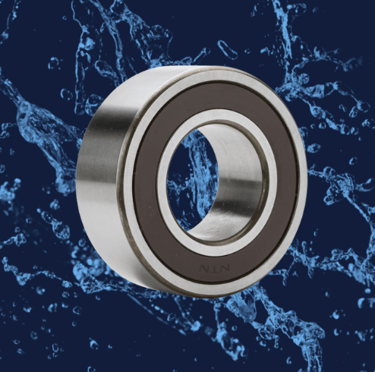

Precision Bearing
Equipped with low-noise, high-precision bearings for smooth, stable operation. Built to extend service life under continuous load.

Key Feautures

Sizing Guide

Choosing the right Sewrion™ pump starts with understanding your required flow rate, system head, and motor capacity. Each model is clearly labeled for fast selection.

Model Breakdown: Sewrion™ H65 25-15-2.2

• H65 – Indicates a DN65 (2.5-inch) outlet diameter, suitable for small-capacity discharge systems.

• 25 – Refers to the nominal flow rate of 25 m³/h, ensuring stable performance in small-volume operations.

• 15 – Indicates the nominal head of 15 meters, ideal for sites with low vertical lift or pressure requirements.

• 2.2 – Denotes a 2.2 kW motor, delivering the power needed for continuous small wastewater handling in tough environments.

Model Overview

Explore our most commonly supplied Sewrion™ pump configurations, engineered to deliver reliable sewage and wastewater management across a wide range of applications. From compact drainage units to heavy-duty transfer systems, each model offers optimized flow, head, and solids handling capacity for specific operational needs.

Solids Handling:

• Sewrion H50 10-10-0.75

• Sewrion H50 15-15-1.5

• Sewrion H65 25-15-2.2

• Sewrion H80 43-13-3

• Sewrion H80 40-17-4

• Sewrion H80 30-30-5.5

• Sewrion H80 45-40-11

• Sewrion H100 60-13-4

• Sewrion H100 65-18-5.5

• Sewrion H100 80-20-7.5

• Sewrion H100 65-30-11

• Sewrion H150 100-13-7.5

• Sewrion H150 100-30-15

• Sewrion H200 220-12-15

Model List:

• H50 – up to 25 mm

• H65 – up to 25 mm

• H80 – up to 30 mm

• H100 – up to 30 mm

• H150 – up to 35 mm

• H200 – up to 40 mm
