QuantaFlux™ | Built for Harsh Chemicals

Sealed for Safety. Built for Chemistry.

QuantaFlux™ by Hanstens is a heavy-duty magnetic drive pump engineered for the safe and efficient transfer of corrosive and high-viscosity chemicals.

Designed with a fully seal-less construction, it eliminates the need for mechanical seals and external welds. Offering exceptional leak prevention and reduced maintenance. Ideal for chemical processing, wastewater treatment, and industrial applications where durability, purity, and reliability are critical.

Key Specifications

• Flow Rate
  Wide capacity range from 100 to 1100 L/min, suitable for high-volume chemical transfer operations.

• Head Range
  Delivers up to 30 meters of head, ensuring efficient delivery across various system heights.

• Power Output
  Available from 0.37 kW to 4 kW, with options in 50Hz and 60Hz for flexible integration.

• Seal-Less Design
  Equipped with high-strength neodymium magnets for efficient torque transmission and long-lasting, seal-less operation.

Materials of Constructions

• Pump Body & Wetted Parts

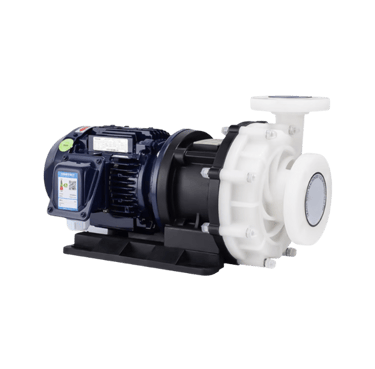

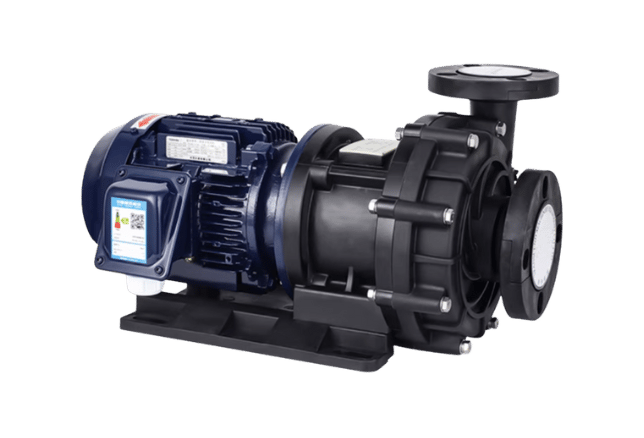

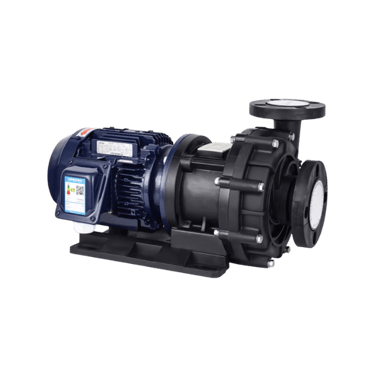

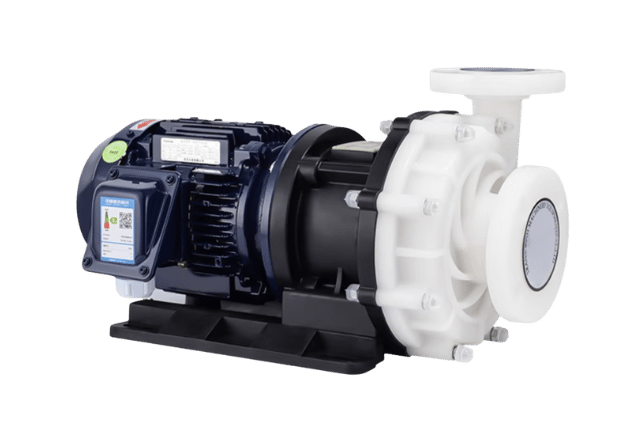

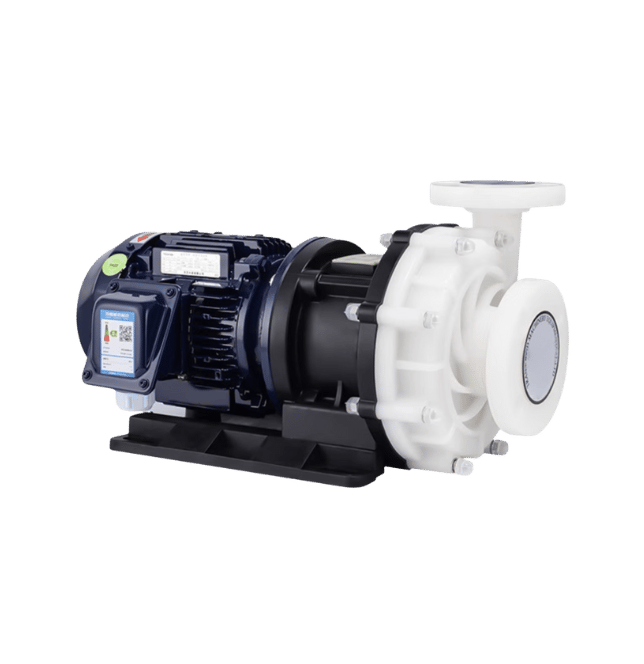

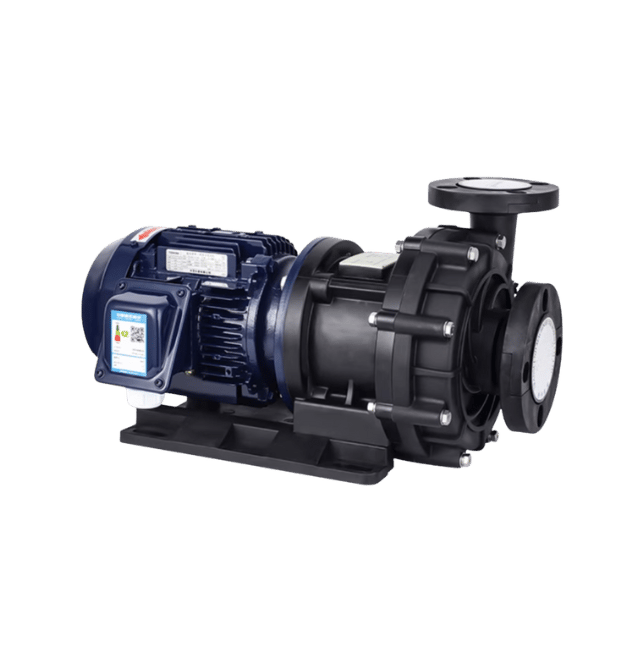

  All wetted components, including the casing and impeller, are constructed from FRPP or PVDF, chosen for their outstanding resistance to corrosion, aggressive chemicals, and elevated temperatures.

• Shaft & Axis Materials
  Engineered with a ceramic shaft and carbon axis material to ensure excellent durability, chemical compatibility, and stable performance under high mechanical stress.

• O-Rings & Elastomers
  Sealed using Viton rubber, delivering dependable sealing performance across a wide range of chemically demanding applications.

Sizing Guide

Selecting the right chemical transfer pump starts with understanding flow rate, head pressure, and motor capacity. Each QuantaFlux™ model is clearly labeled to simplify your selection process.

Model Breakdown: QuantaFlux H40 500-30-4

• H40 – Indicates a DN40 flange connection, suitable for general chemical transfer or water treatment systems.
  Note: Larger H40 models use DN50 inlet flanges.

• 500 – Denotes the maximum flow rate of 500 liters per minute (LPM), supporting efficient fluid handling in medium-scale applications.

  30 – Refers to the maximum head of 30 meters, allowing for moderate system pressure requirements.

• 4 – Specifies a 4-kilowatt motor, ensuring robust and continuous operation across industrial environments.

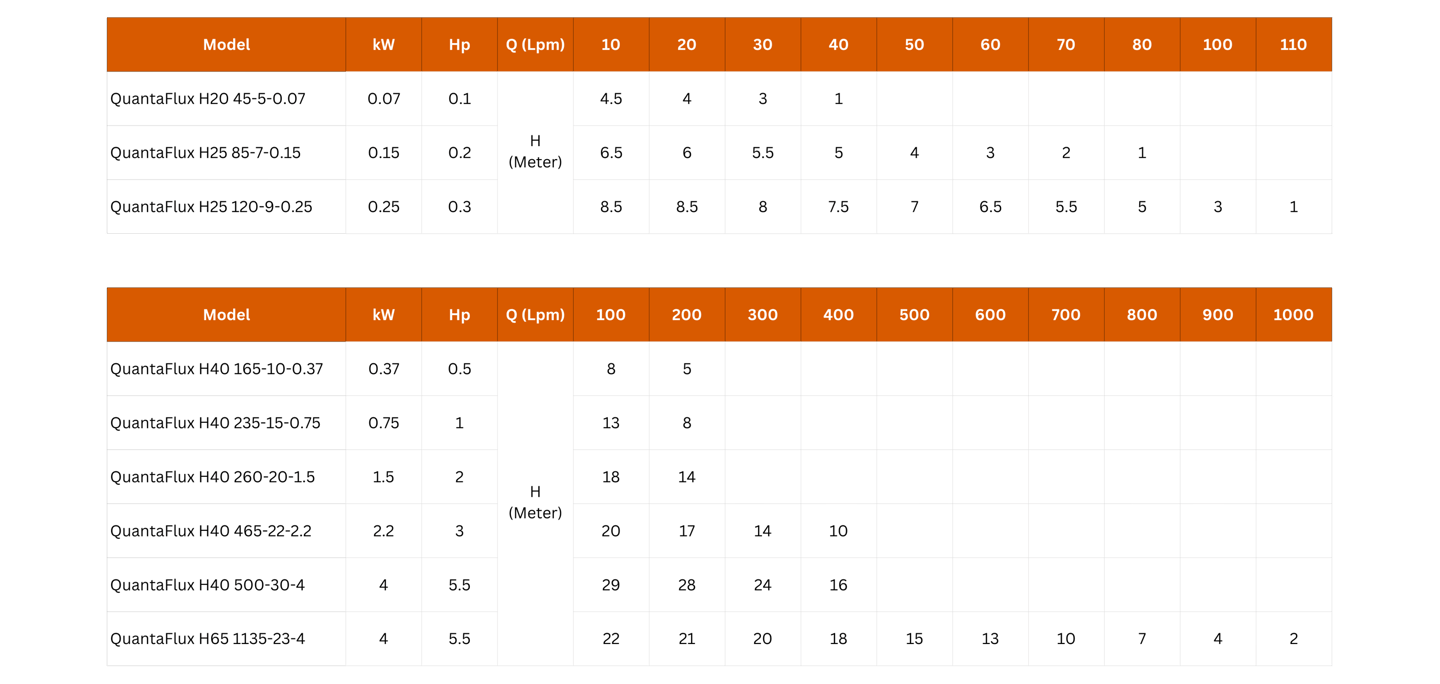

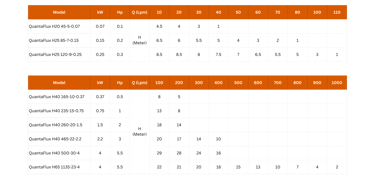

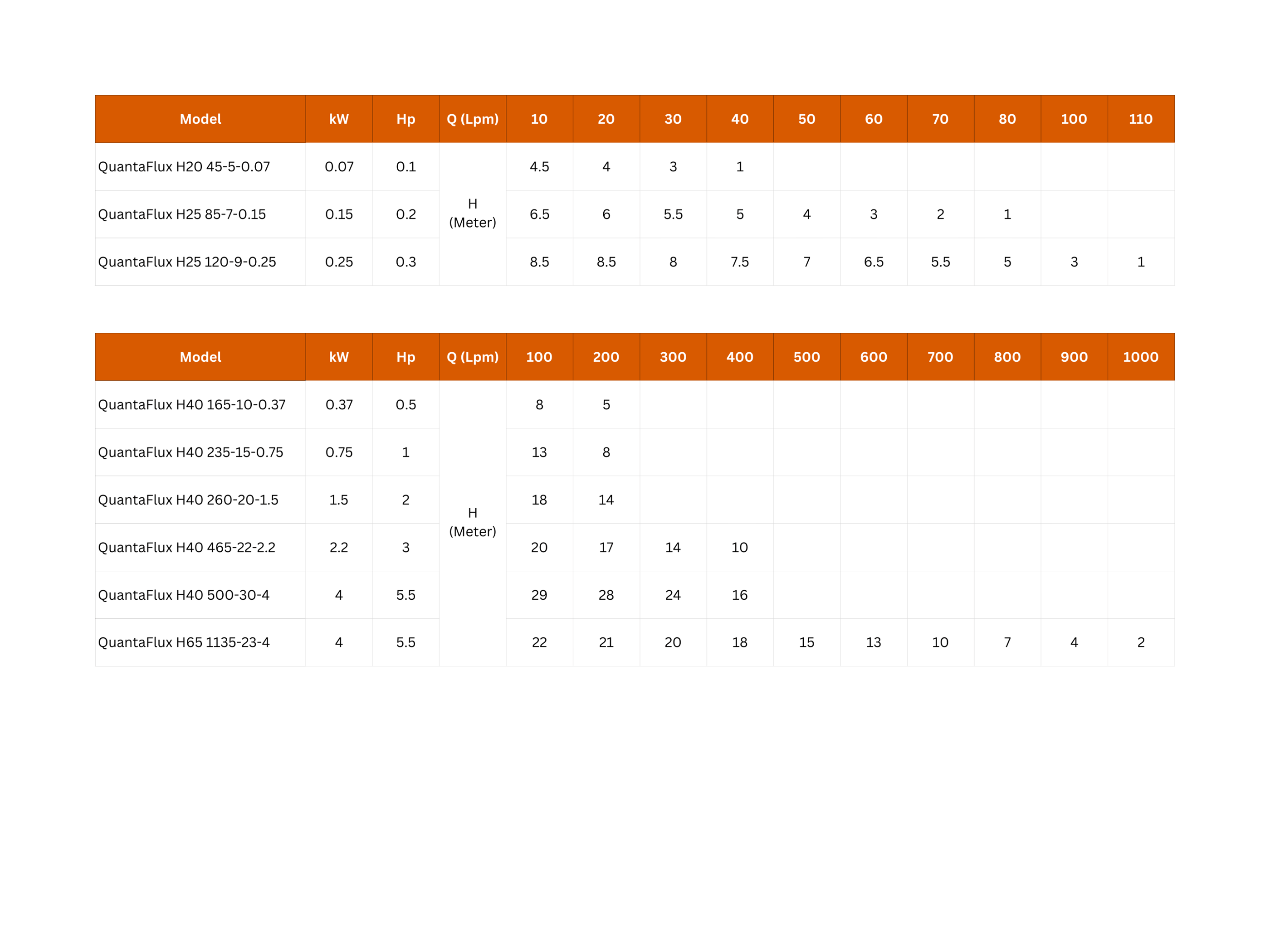

Models Overview

Explore our most commonly supplied QuantaFlux™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.

Instalations and Limitations

• Priming Requirement:
  QuantaFlux™ is not self-priming. The pump casing and suction line must be completely filled with fluid before startup. A flooded suction setup or external priming system is recommended.

• Dry Run Limitation:
  Running the pump dry can cause severe damage to the bearings and magnetic drive. Always ensure the pump is fully primed before operation and protected with a dry-run protection device if necessary.

• Backpressure Considerations:
  Ensure discharge pressure does not exceed the pump’s rated head. Overpressurizing may lead to shaft misalignment or magnet decoupling.

• Ambient and Fluid Temperature:
  Follow manufacturer guidelines for maximum fluid and ambient temperatures. Excessive heat may demagnetize the magnets or degrade plastic parts over time.
