QuantaFlow™ | The Flow That Holds

Reliable Pressure. Lasting Power.

QuantaFlow™ by Hanstens represents a premium line of multistage centrifugal pumps, meticulously designed to deliver consistent pressure and flow in demanding applications. Whether it's for water supply, industrial processes, or HVAC systems, QuantaFlow™ ensures efficient and reliable operation.

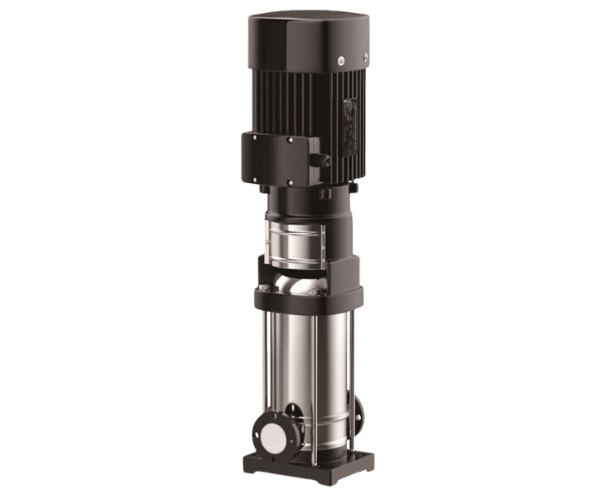

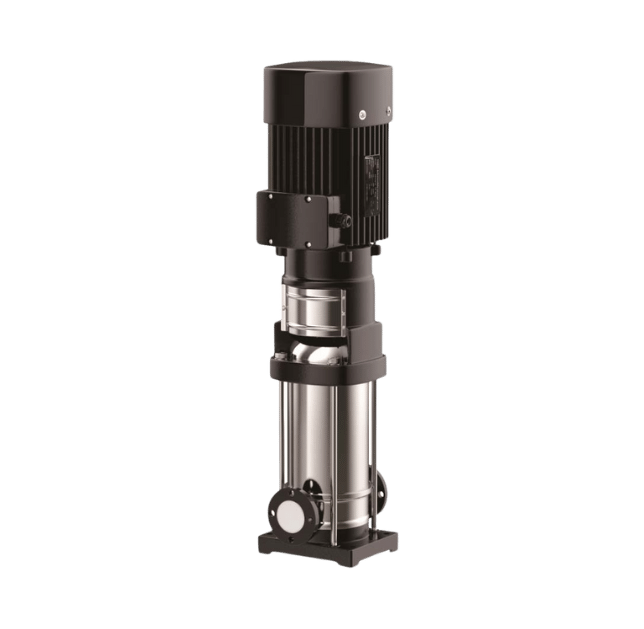

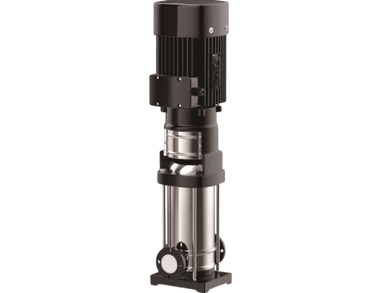

QuantaFlow™ V-Series

Vertical Multistage Pumps

The V-Series features a space-saving vertical design, ideal for installations where floor space is limited. Constructed with stainless steel internals and equipped with high-efficiency motors, these pumps are perfect for applications requiring high pressure and flow rates.

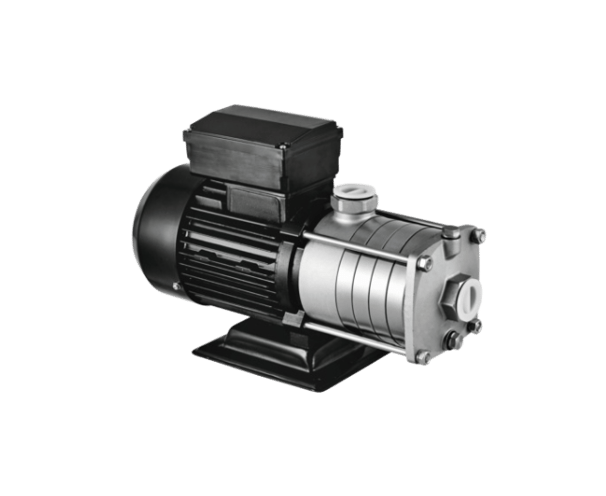

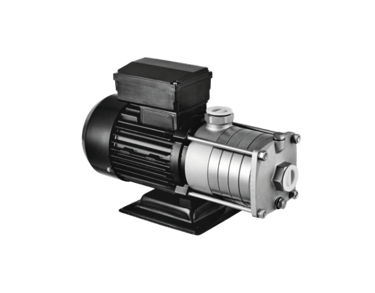

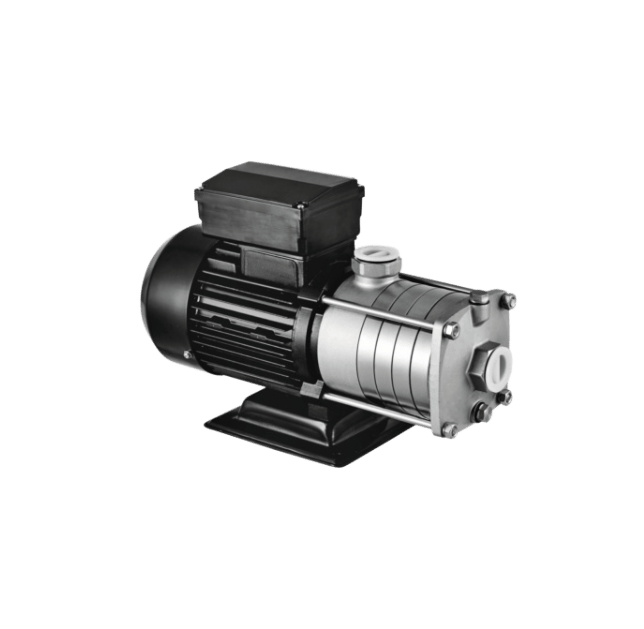

QuantaFlow™ H-Series

Horizontal Multistage Pumps

The upcoming H-Series is designed for applications requiring horizontal installation. These pumps offer robust construction and are suitable for a wide range of industrial processes.

Key Specifications

• Multistage centrifugal design available in vertical (V-Series) and horizontal (H-Series) configurations

• Stainless steel wetted components for corrosion resistance and hygiene

• Compact form factor ideal for both space-saving vertical setups and inline horizontal installations

• Powered by Hanstens IE3 high-efficiency motors for reliable, energy-saving performance

• Operating temperature range: –20°C to +120°C

• Maximum working pressure: up to 25 bar

• BSPT (V-Series) and DIN flange (H-Series) connection standards for easy system integration

Sizing Guide

Choosing the right dosing pump starts with understanding your flow rate, pressure, and motor requirements. Each QuantaFlow™ model is clearly labeled to simplify the selection process.

Model Breakdown: QuantaFlow™ V40 10-12-0.75

• V/H – Indicates a vertical (V) or horizontal (H) Configurations

• 40 - Indicates a DN40 (1.5-inch) outlet diameter

• 10 – Refers to the nominal flow rate of 10 m³/h

• 12 – Represents the nominal head of 12 meters

• 0.75 – Denotes the motor power of 0.75 kW

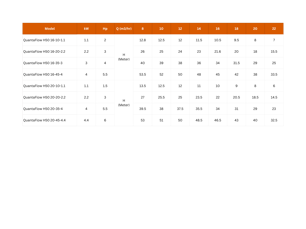

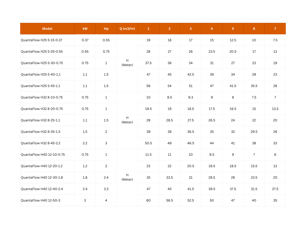

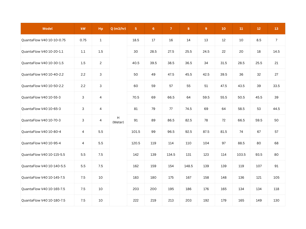

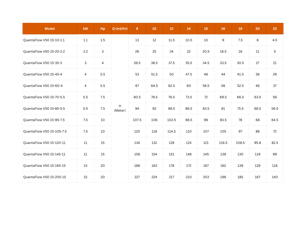

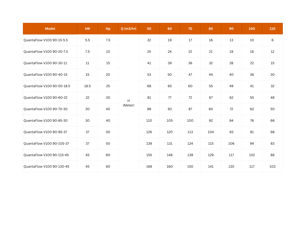

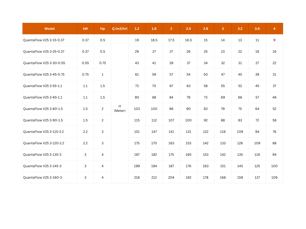

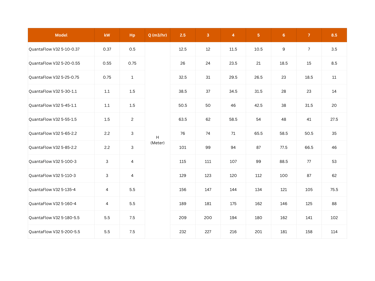

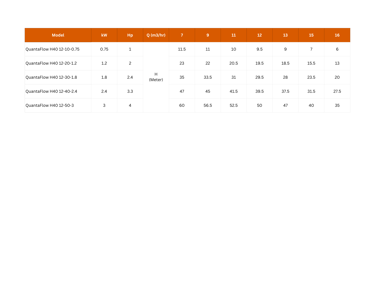

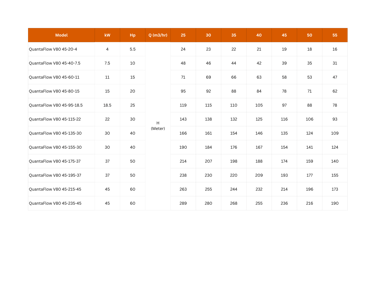

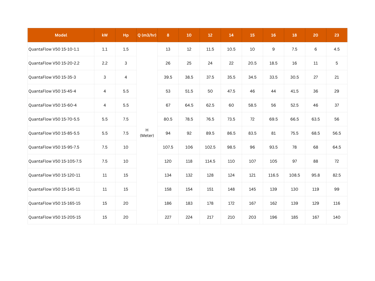

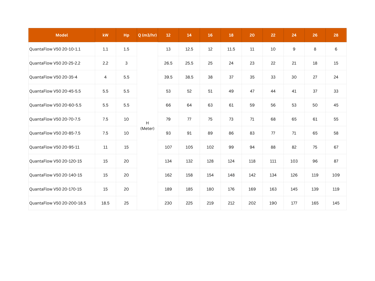

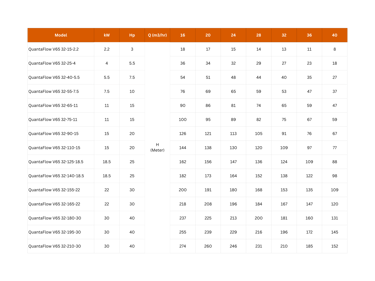

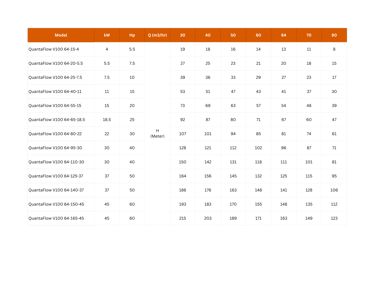

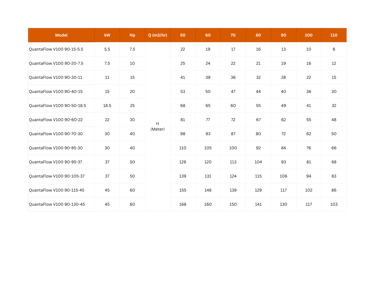

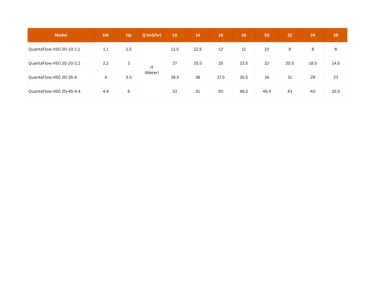

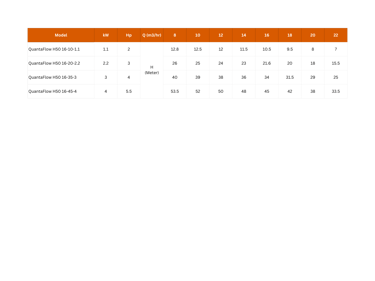

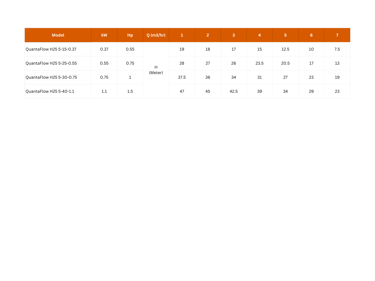

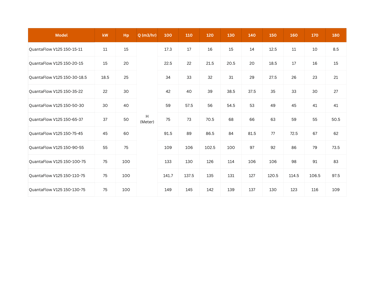

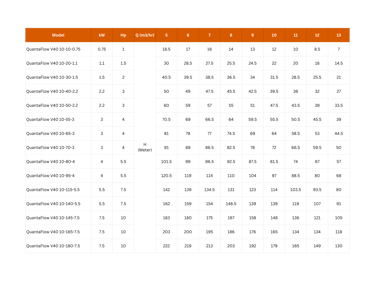

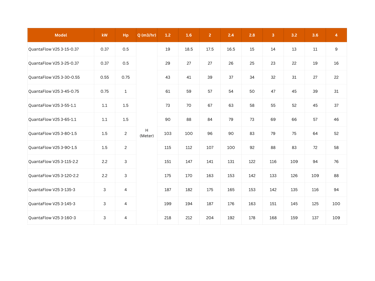

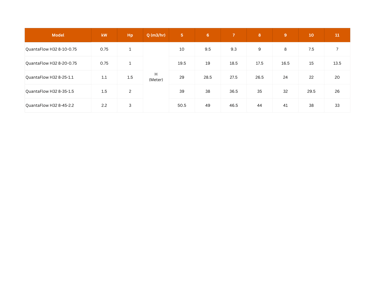

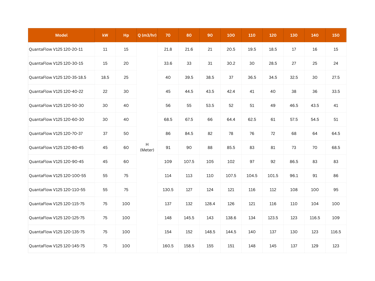

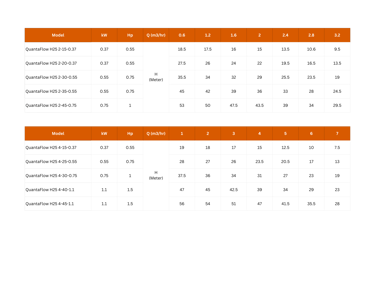

Models Overview

Explore our most commonly supplied QuantaFlow™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.
