Materra™ | Precision Without Intrusion

Measure Smarter, Flow Smoother

Meterra™ by Hanstens is a bi-directional ultrasonic flowmeter system designed to deliver accurate, non-invasive flow measurement without disrupting your pipeline.

Using clamp-on transducers and digital signal processing, Meterra ensures high precision across a wide range of common piping materials, linings and stable liquids.

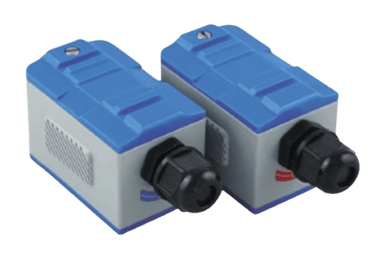

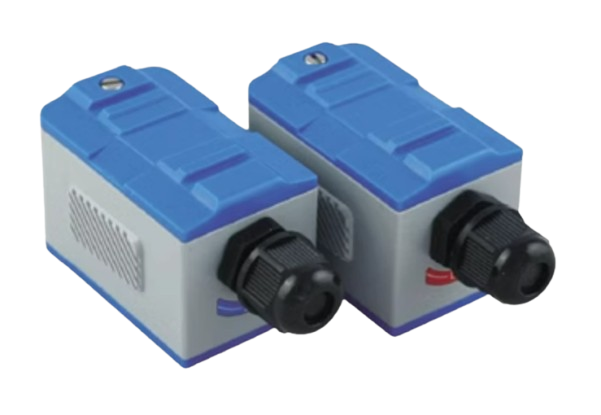

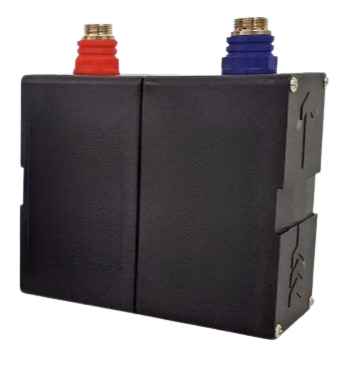

Transducer Options

Meterra™ offers two transducer series tailored to suit varying application needs. The T1 Series ensures dependable performance over a wide pipe size range, ideal for general-purpose use. For more demanding environments, the T2 Series offers enhanced precision with accuracy up to ±10% and supports higher temperatures up to 160°C.

T2 Series | High-Precision & High-Temp

• Pipe Size Range: DN15–3000
• Accuracy: ±10%
• Temperature Range: 0°C to 160°C
• IP Rating: IP65

T1 Series | General Purpose Performance

• Pipe Size Range: DN15–6000
• Accuracy: ±15%
• Temperature Range: –30°C to 90°C
• IP Rating: IP54

Available Models

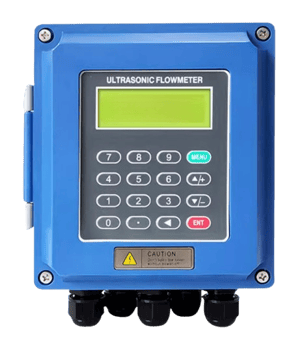

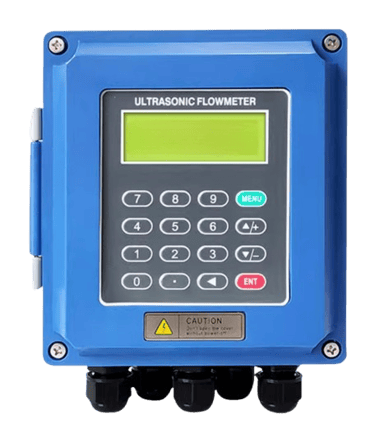

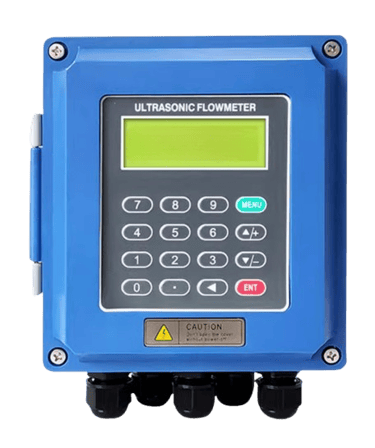

Meterra H1 – Wall-Mounted Ultrasonic Flowmeter

Fixed-type ultrasonic flowmeter designed for continuous monitoring. Ideal for permanent installations across various industrial pipelines.

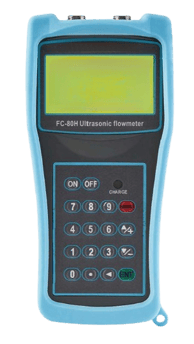

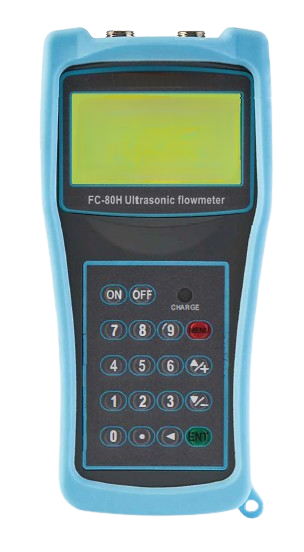

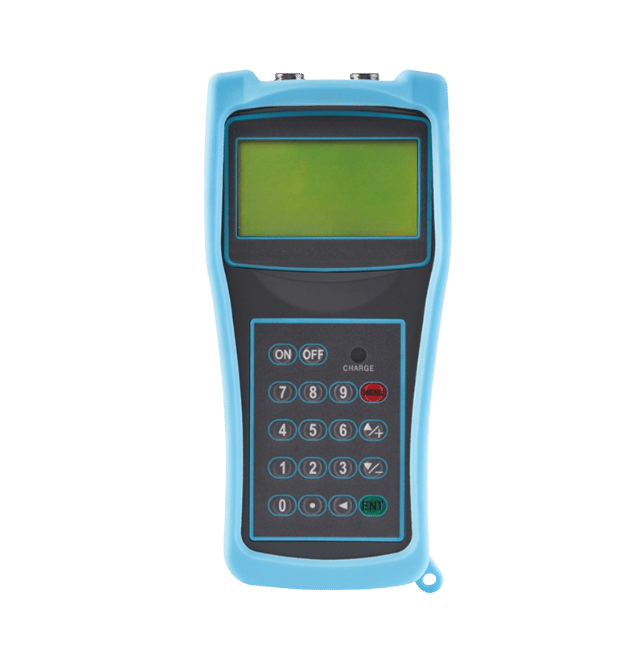

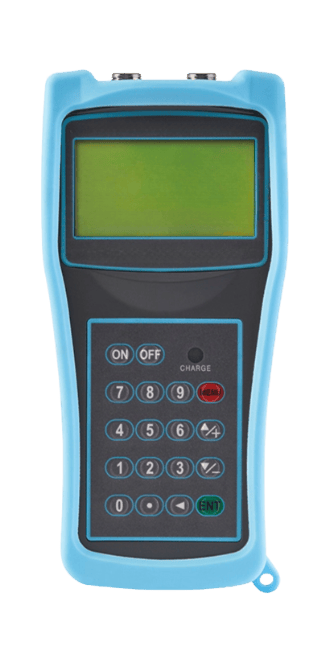

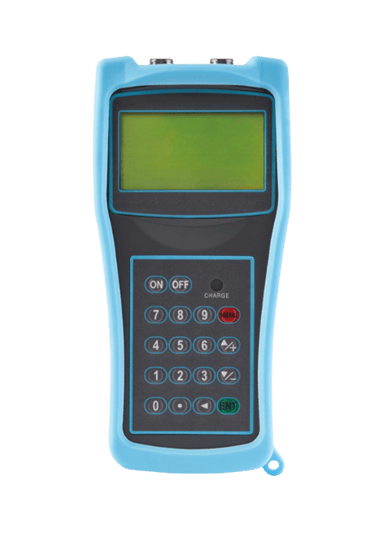

Meterra H2 – Portable Ultrasonic Flowmeter

Compact and mobile solution for on-the-go diagnostics. Ideal for temporary flow checks, maintenance tasks, or environments where installation is not feasible.

Key Specifications

• Fluid Compatibility

  Suitable for measuring a variety of stable liquids, including water, chemicals, alcohol, gasoline, and other compatible fluids across multiple industries.

• Signal Output & Integration

  Offers versatile connectivity through standard industrial outputs such as 4–20 mA, RS485, and Modbus, ensuring smooth integration with existing monitoring and control systems.

• Environmental Durability

  Built to withstand different environmental conditions, with an IP54 rating for general-purpose use (Meterra™ H1) and an enhanced IP65 rating for more demanding environments (Meterra™ H2).

• Display & Interface

  Equipped with a user-friendly wall-mounted panel and keypad interface for fixed installations (Meterra™ H1), and a portable handheld device with a keypad interface for flexible, on-site measurements (Meterra™ H2).

• Power Options

  Powered via a stable AC220V supply for continuous operation in fixed setups (Meterra™ H1), or by a rechargeable battery for convenient, untethered field use (Meterra™ H2).

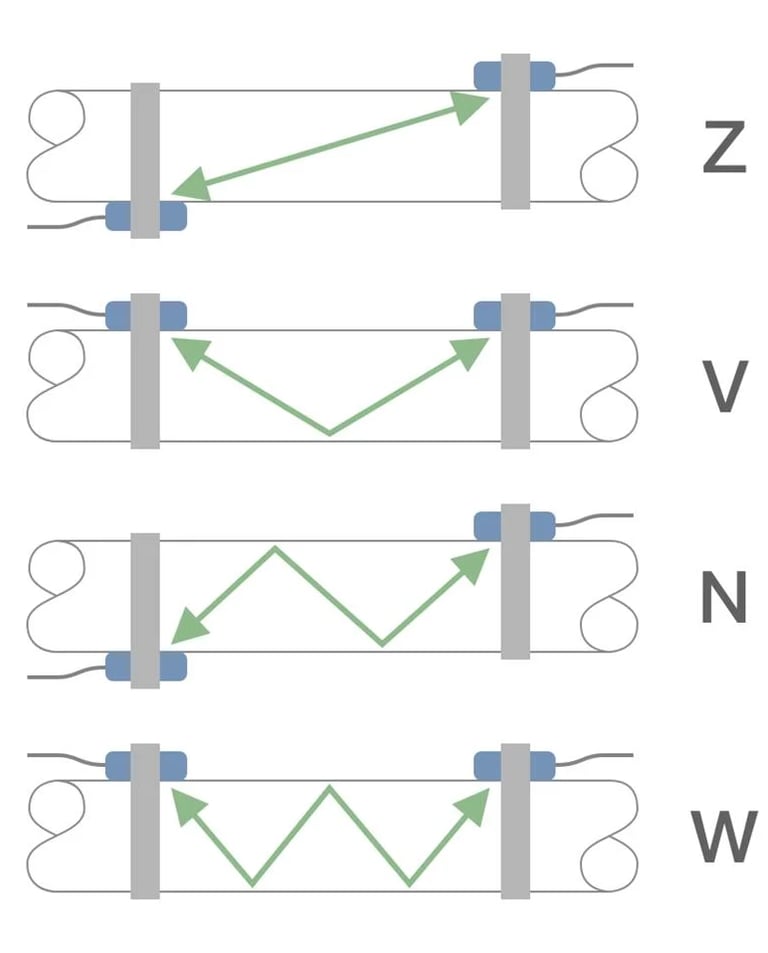

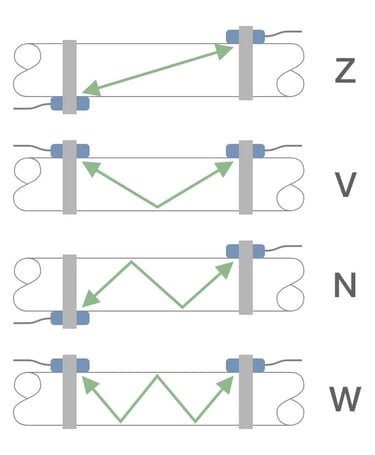

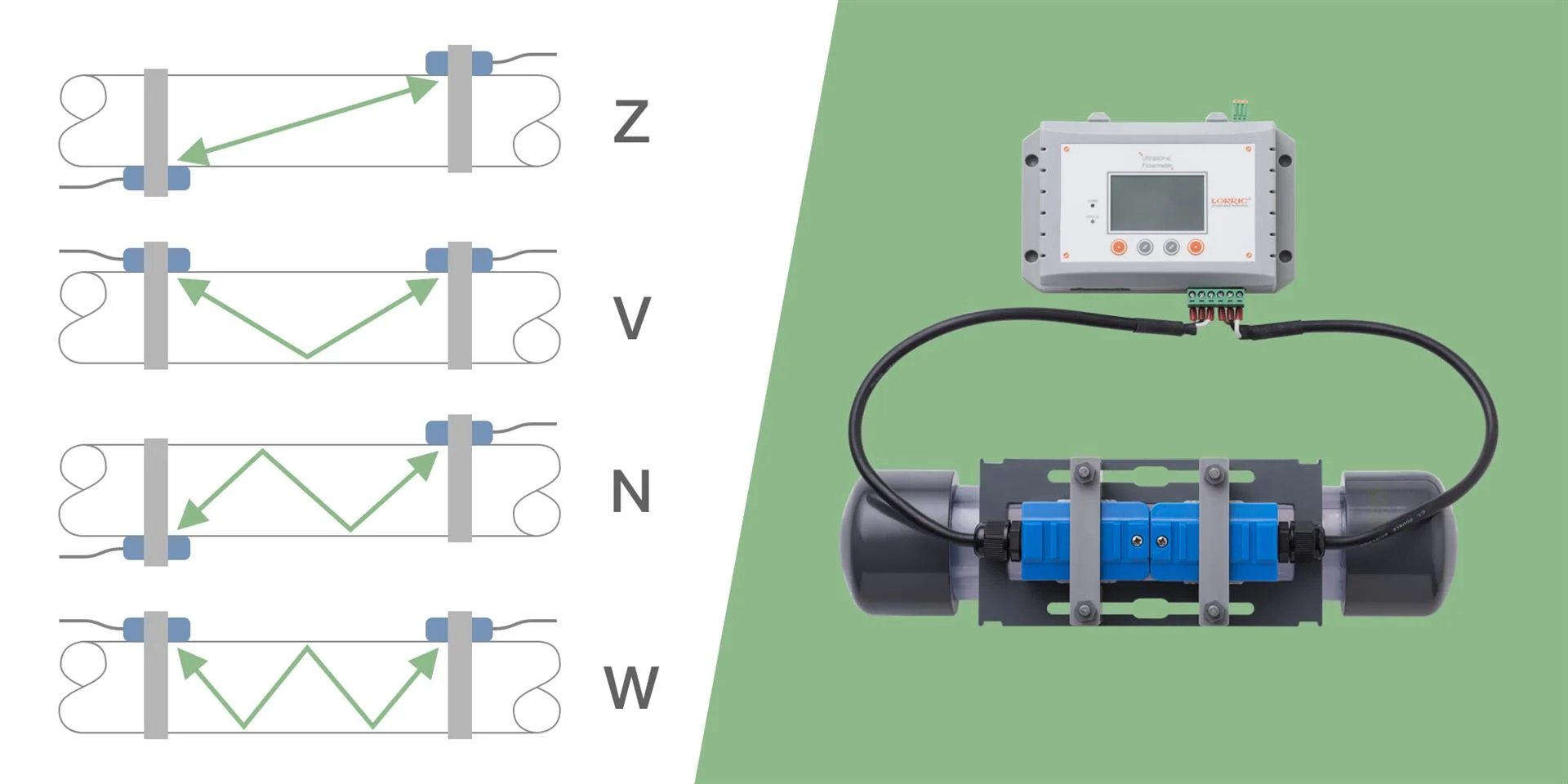

Probe Installation Methods

Ultrasonic flowmeter probe installation is critical to achieving accurate measurements. The method chosen Z, V, N, or W. depends on the pipe size and operating conditions.

• Z and V methods are ideal for larger pipes due to stronger signal retention and easier probe alignment.

• N and W methods suit smaller pipes, increasing signal path length for improved precision, but with weaker signal strength.

• Signal performance is influenced by pipe diameter, material, fluid characteristics, and environmental factors.

• Probe positioning and accurate distance measurement are essential for clear and stable signal transmission.
