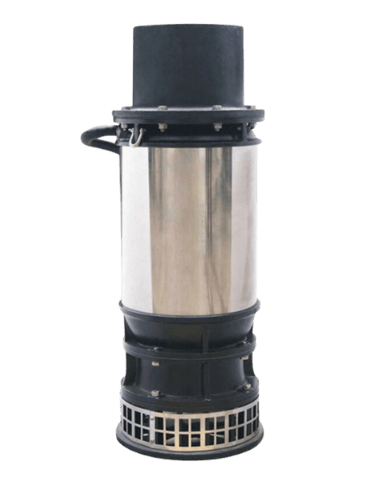

Exiflion™ | Best for Drain water

Durable. Relentless.

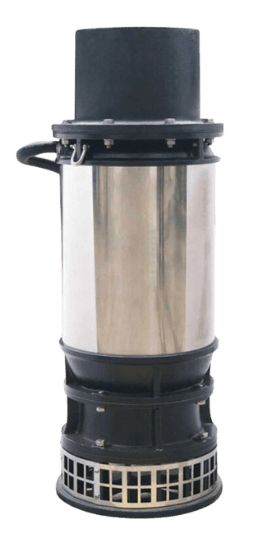

Sewrion™ by Hanstens delivers dependable performance in wastewater and sewage management. Designed for environments requiring robust solids handling, Sewrion™ combines durable construction with efficient operation to ensure uninterrupted service in challenging conditions.

Key Specifications

Flow Capacity
Handles flow rates up to 220 m³/h, accommodating a broad range of wastewater system demands.
Head Range
Delivers pumping heads up to 30 meters, suited for varied elevation and backpressure conditions.
Motor Power Options
Available in 0.75 kW to 15 kW configurations to suit light to heavy-duty applications.
Solids Handling
Equipped with a non-clogging impeller capable of passing large solids and fibrous materials, minimizing the risk of blockage.
Monitoring Protection
Optional thermal protection sensors and leakage probes for enhanced operational safety.
Installation Flexibility
Compatible with both free-standing and guide rail mounting for efficient on-site integration.

Materials of Construction

Pump Casing
Robust cast iron body ensures durability and corrosion resistance in harsh wastewater environments.

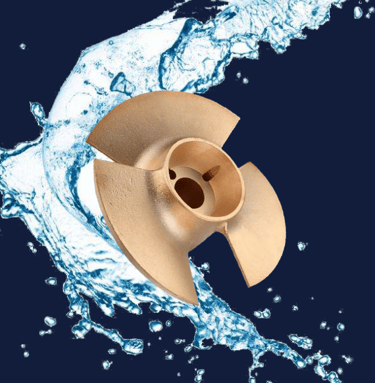

Impeller
Open-channel cast iron impeller optimized for clog-resistant performance and handling of solids.
Shaft
Constructed from corrosion-resistant stainless steel for extended operational life.
Seals
Dual-end mechanical seals with silicon carbide faces for secure sealing and minimal maintenance.
Motor Housing
Sealed cast iron motor enclosure with integrated thermal protection system.
Wear Ring
Replaceable wear ring located between impeller and pump body enhances efficiency and extends service life.

Heavy-Duty Shaft Seal
Precision mechanical seal design effectively prevents slurry ingress into the motor, improving protection and sealing strength.

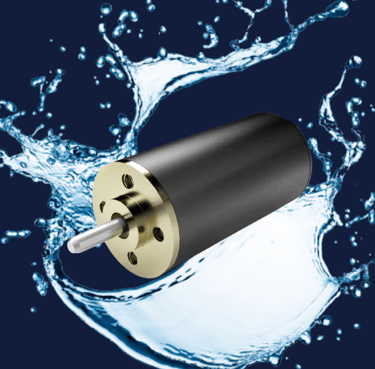

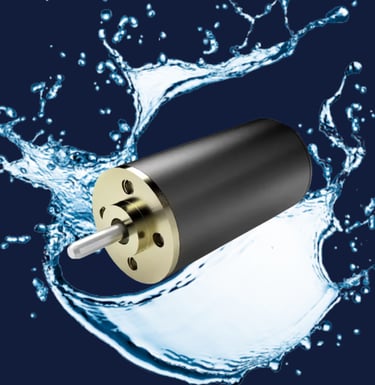

High Efficiency Motor
Equipped with a pure copper motor, triple insulation, and sealed rotor, ensuring consistent performance and long lifespan.

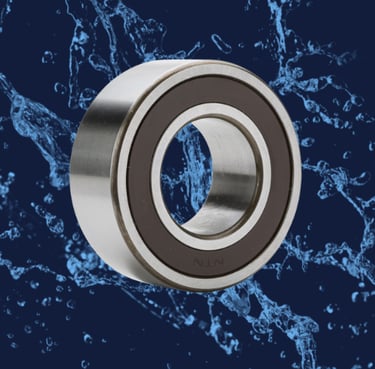

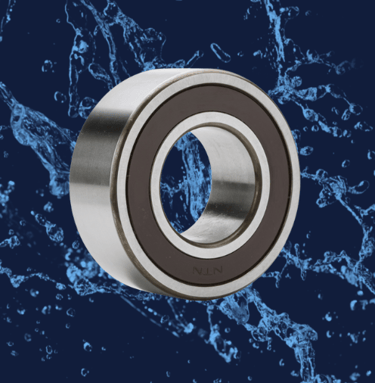

Precision Bearing
Equipped with low-noise, high-precision bearings for smooth, stable operation. Built to extend service life under continuous load.

Key Feautures

Sizing Guide

Choosing the right Sewrion™ pump starts with understanding your required flow rate, system head, and motor capacity. Each model is clearly labeled for fast selection.

Model Breakdown: Sewrion™ H65 25-15-2.2

H65 – Indicates a DN65 (2.5-inch) outlet diameter, suitable for small-capacity discharge systems.
25 – Refers to the nominal flow rate of 25 m³/h, ensuring stable performance in small-volume operations.
15 – Indicates the nominal head of 15 meters, ideal for sites with low vertical lift or pressure requirements.
2.2 – Denotes a 2.2 kW motor, delivering the power needed for continuous small wastewater handling in tough environments.

Model Overview

Explore our most commonly supplied Sewrion™ pump configurations, engineered to deliver reliable sewage and wastewater management across a wide range of applications. From compact drainage units to heavy-duty transfer systems, each model offers optimized flow, head, and solids handling capacity for specific operational needs.

Solids Handling:

Exiflion H150 120-5-3.7
Exiflion H200 210-4-5.5

Exiflion H250 330-4-7.5
Exiflion H300 420-5-11

Model List:

H150 – up to 20 mm
H200 – up to 22 mm

H250 – up to 23 mm
H300 – up to 23 mm
