Connexta™ | Every Connection Counts

Lock Securely, Transfer Faster

Connexta™ by Hanstens delivers a modular range of connection systems built for industrial fluid and gas handling. From quick couplers to camlock accessories. Connexta™ ensures secure, leak-free performance across demanding environments.

Designed for durability, compatibility, and ease of integration, each Connexta™ component is engineered to meet the needs of fueling systems, automation lines, chemical processing, and mobile transfer units. Bridging reliability with operational flexibility.

General Configurations

Connexta™ is a versatile family of fluid handling components—from quick couplers and sight‑glass fittings, to hose systems, valves, and dispenser modules—designed to work together in fueling, industrial, and automation environments.

• Materials: Stainless steel (SS316) and aluminum alloys for durability and chemical resistance

• Connection Standards: BSP or NPT threads, camlock interfaces, and industrial flanged connections ensure global system compatibility

• Functional Consistency: Each series is hot-swappable and standardized to integrate into broader fluid systems, simplifying installation, maintenance, and expansion

Understanding the Model Breakdown: Connexta™ H25 80-NPT-M

• H25 – Refers to the series and nominal diameter, indicating a DN25 (0.5-inch) connection

• 80 – Indicates the maximum working pressure in bar

• NPT – Refers to the standard connection format

• M / F – Specifies the fitting end type: Male or Female

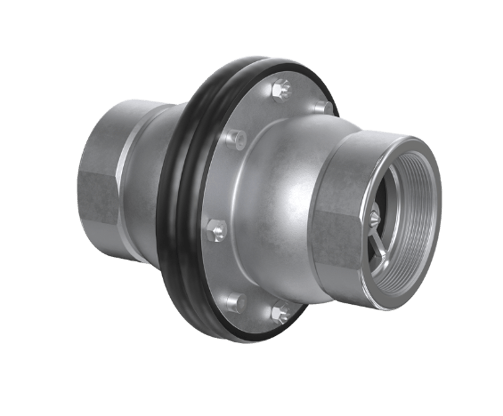

Connexta™ B-Series

Threaded Breakaway Couplers

• Application: Emergency disconnection in fuel and chemical lines, refueling safety

• Material: SS316 Stainless Steel

• Operating Temperature Range: –40°C to +80°C

• Connection Type: Threaded or Flanged (1" to 3")

• Sealing: FKM

• Features: Automatic dual-shutoff, low torque separation, DNV CCS certified, explosion-safe.

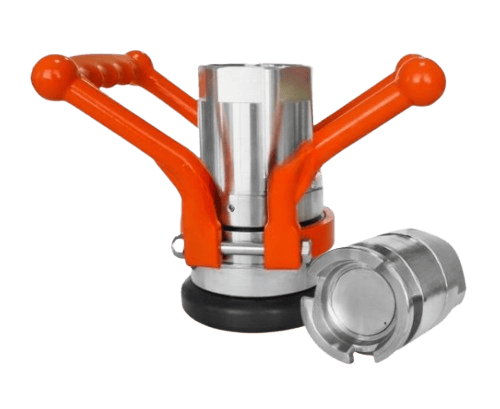

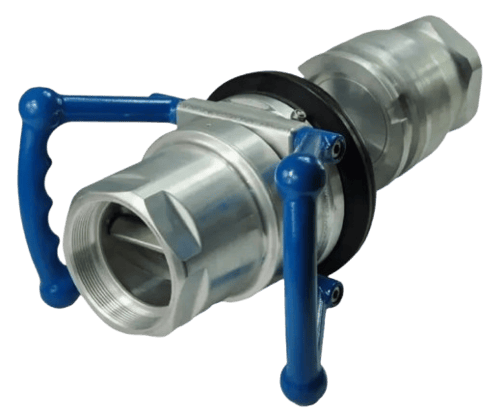

Connexta™ D-Series

NATO STANAG 3756 Dry-Break Coupler

• Application: Fuel transfer operations, chemical loading, industrial fluid handling

• Material: SS316 Stainless Steel

• Working Pressure: Up to 25 bar

• Operating Temperature Range: –20°C to +90°C

• Connection Type: Threaded or Flanged (1" to 6")

• Sealing: FKM

• Features: Snap-lock coupling system, rapid spill-free connection, compliant with NATO STANAG 3756

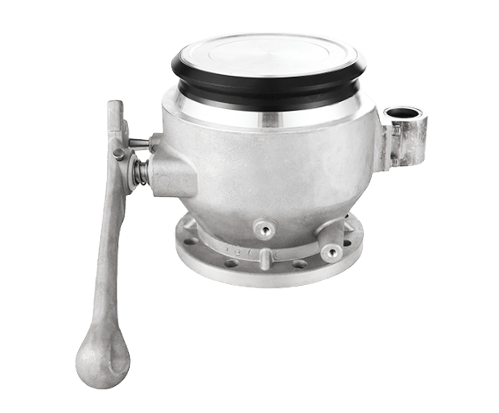

Connexta™ K-Series

Bottom Loading API Shut-Off Valve

• Application: Bottom-loading systems for tankers, optimized fluid dynamics

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: Flanged (4")

• Sealing: FKM

• Features: Compact valve body, low resistance, minimal residual volume, meets API RP1004 and EN13083 standards.

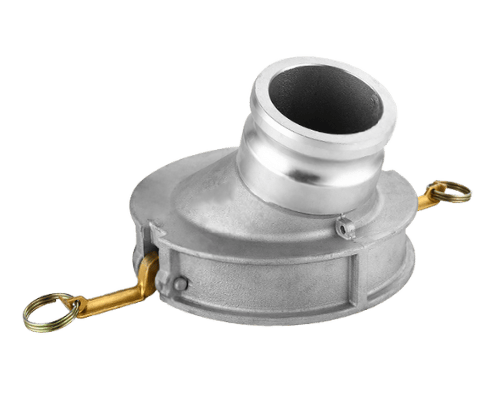

Connexta™ T-Series

API Camlock Adaptors

• Application: Enables quick connection from standard API bottom valves to camlock hose fittings, ideal for tanker offloading operations.

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: API (4") × Camlock (3" or 4")

• Sealing: FKM

• Features: API RP1004 compliant, fast camlock compatibility, includes color-coded identification for warehouse and field use

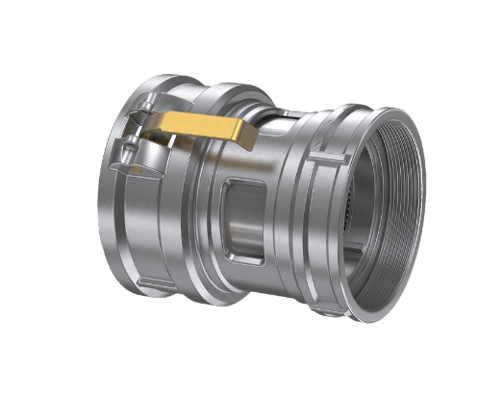

Connexta™ G-Series

Camlock Sight Glass

• Application: Inline visual inspection for fuel, oil, and chemical transfer in camlock coupling systems

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: BSP Threaded (2.5" to 4")

• Sealing: FKM

• Features: Integrated visual window, high flow visibility.

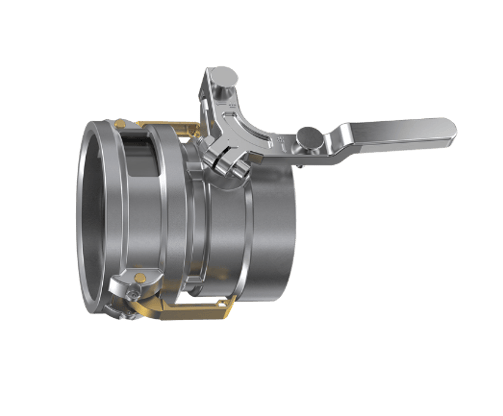

Connexta™ I-Series

Camlock Isolation Valves

• Application: Inline shut-off for fuel, oil, and chemical transfer in camlock coupling systems

• Material: Aluminum Alloy

• Working Pressure: Up to 16 bar

• Operating Temperature Range: –20°C to +80°C

• Connection Type: BSP Threaded (3")

• Sealing: FKM

• Features: Integrated quarter-turn valve for instant isolation

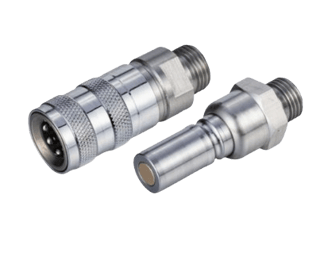

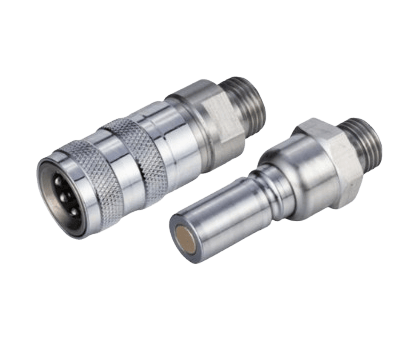

Connexta™ Q-Series

Precision Quick Connect Coupler

• Application: Industrial automation, compressed air, coolant, fluid handling

• Material: SUS440C Hardened Stainless Steel

• Working Pressure: Up to 80 bar

• Operating Temperature Range: –20°C to +240°C

• Connection Type: BSP or NPT Thread (1/4", 3/8", 1/2")

• Sealing: FPM (Viton®)

• Features: High-precision coupling, fast push-to-connect, extreme durability

Final Assurance

Reliability Engineered. Performance Guaranteed.

At Hanstens, we believe that the strength of your operation starts at every connection point.
Connexta™ represents our commitment to delivering the most reliable, secure, and efficient coupling solutions.
