Clarion™ by Hanstens represents a new generation of stainless-steel submersible deep well pumps engineered for long-term water supply reliability. Precision-crafted from stainless steel, it ensures superior corrosion resistance and consistent hydraulic performance even under deep submersion.

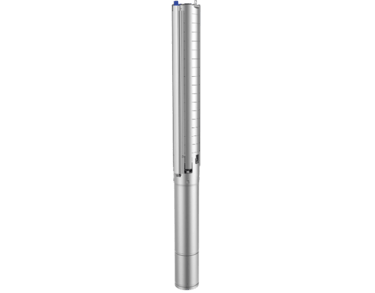

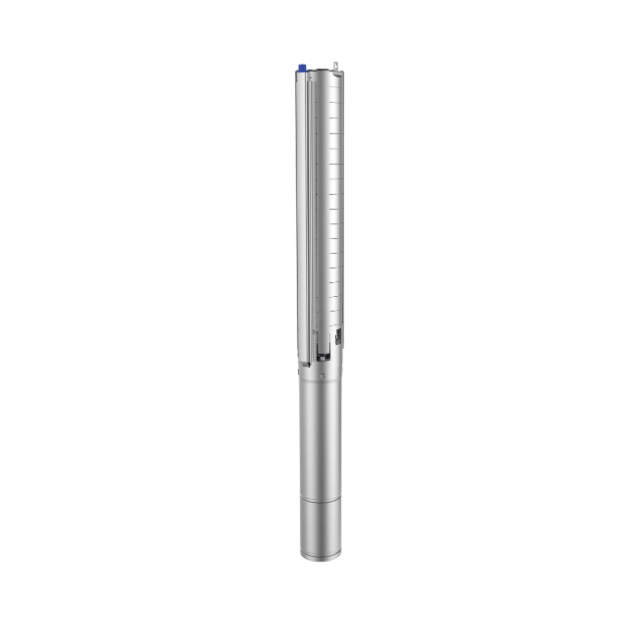

Clarion™ H-Series

Deep Well Submersible Pump

The Clarion™ series is Available in both oil-filled and water-filled configurations, the Clarion™ series covers power capacities from 0.37 kW to 90 kW, offering flexible solutions for a wide range of pumping depths. Whether for irrigation, municipal distribution, or clean water transfer, Clarion™ provides precision engineering and lasting performance in every drop.

Key Specifications

• Casing Diameter

  Designed to fit 4-inch to 10-inch well casings, adaptable for various depth and flow requirements.

• Flow Rate

  Handles capacities from 2 m³/h to 160 m³/h, ensuring reliable water delivery across residential, agricultural, and industrial systems.

• Pump Pressure

  Delivers up to 300 meters of head, making it suitable for deep well and high-pressure applications.

• Material Construction

  All hydraulic components, including impeller, diffuser, and shaft are made from SS304 stainless steel for superior corrosion resistance and durability.

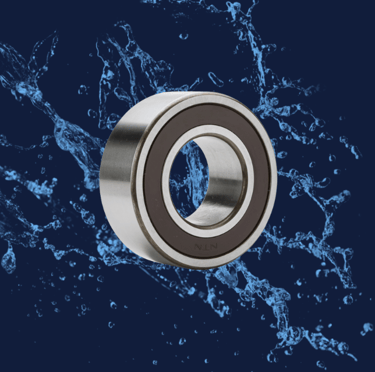

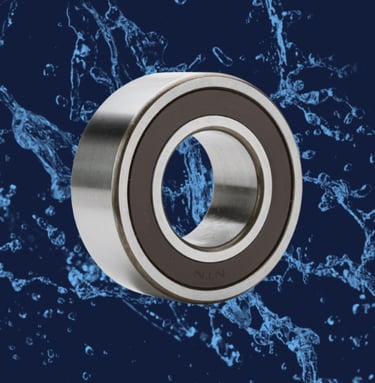

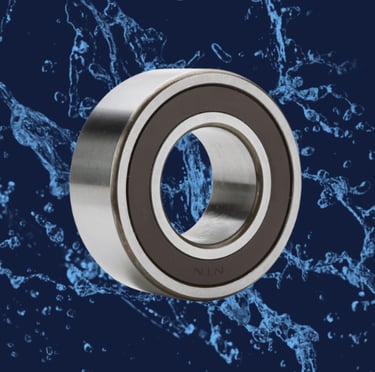

Precision Bearing
Equipped with low-noise, high-precision bearings for smooth, stable operation. Built to extend service life under continuous load.

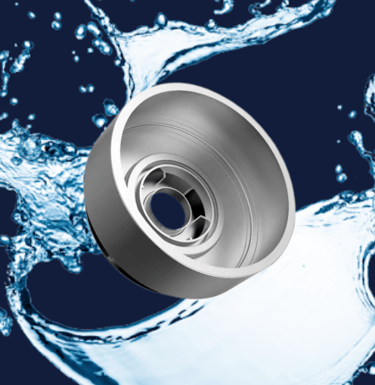

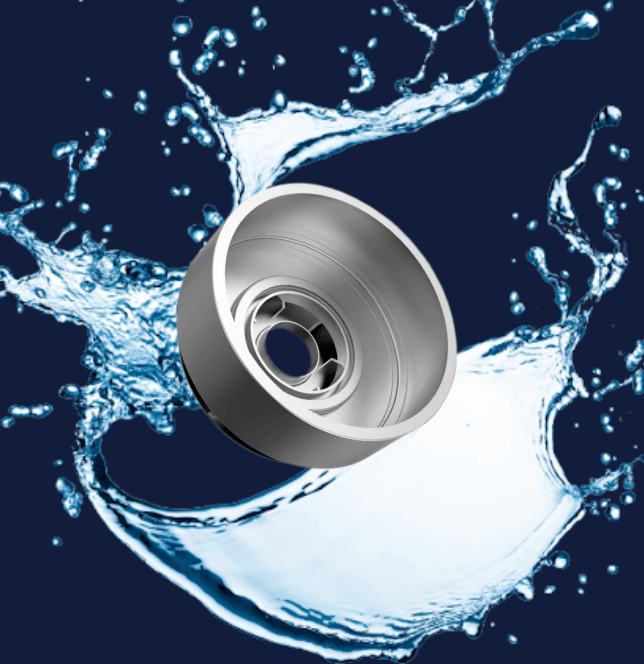

Stainless Diffuser Assembly
Built entirely from SS304 stainless steel, the diffuser ensures efficient hydraulic performance while resisting corrosion and erosion.

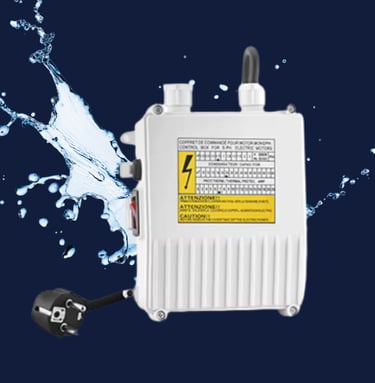

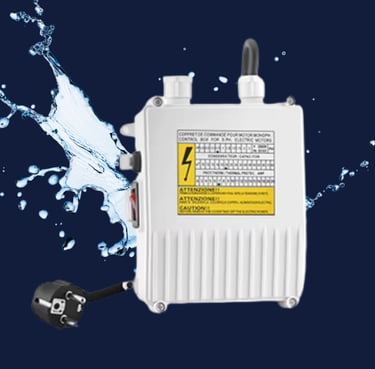

Weather Sealed Control Panel
Equipped with a water-resistant single-phase control panel, designed for enhanced safety and longevity in outdoor environments.

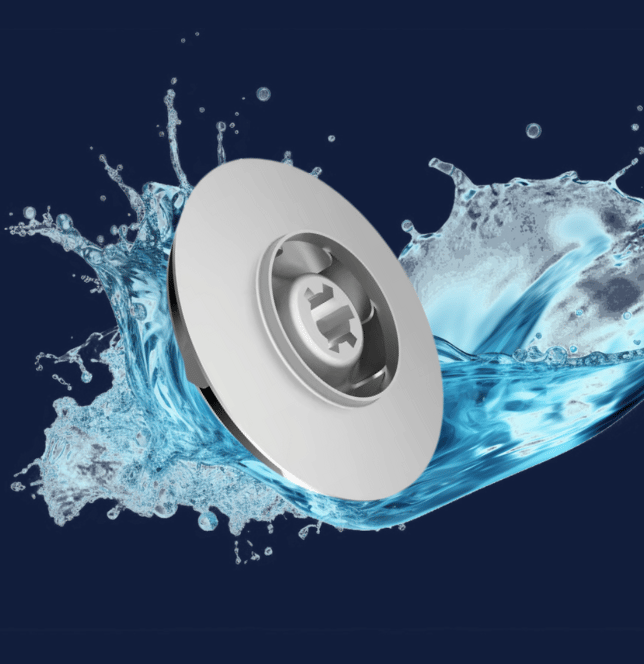

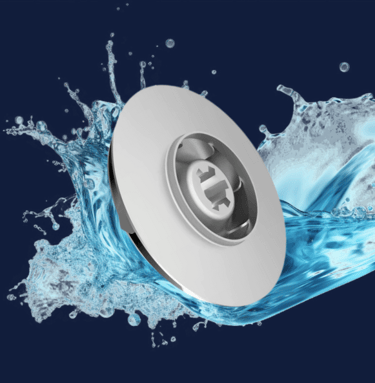

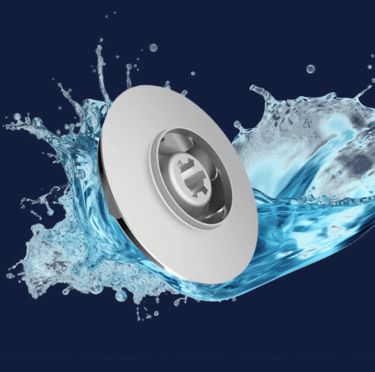

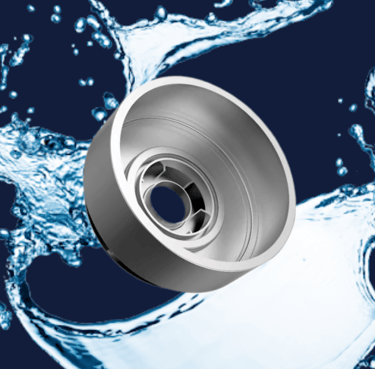

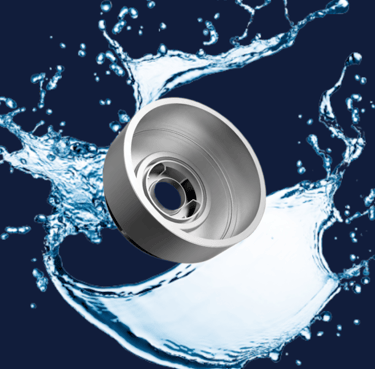

Stainless Steel Impeller
Engineered from SS304 stainless steel, the impeller offers superior balance, wear resistance, and energy efficiency.

Key Feautures

Sizing Guide

Choosing the right pump starts with understanding your flow rate, pressure, and motor requirements. Each Clarion™ model is clearly labeled to simplify the selection process.

Model Breakdown: Clarion H50 8-95-4

• H50 - Indicates a DN50 (2-inch) outlet diameter

• 8 – Refers to the nominal flow rate of 8 m³/h

• 95 – Represents the nominal head of 95 meters

• 4 – Denotes the motor power of 4 kW

Model Overview

Outside Diameter:

• H32 – 96 mm

• H40 – 96 mm

• H50 – 96 mm

• H65 – 143 mm

• H80 – 143 mm

• H100 – 143 mm

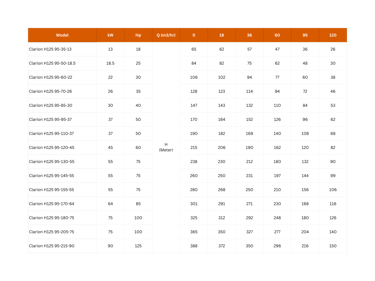

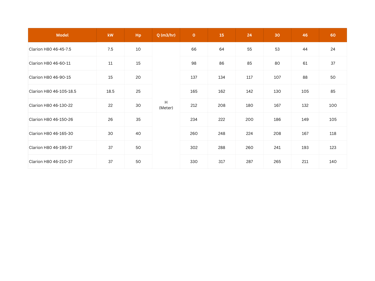

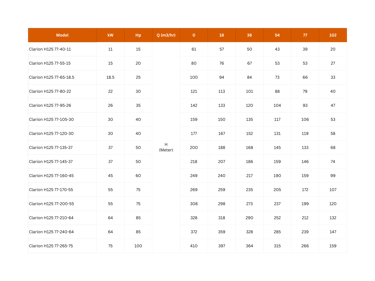

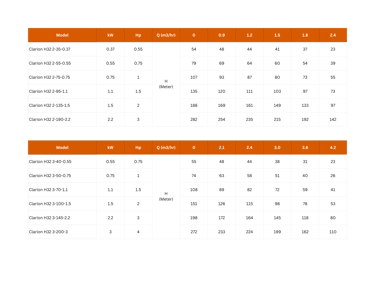

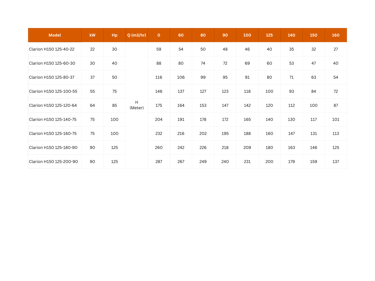

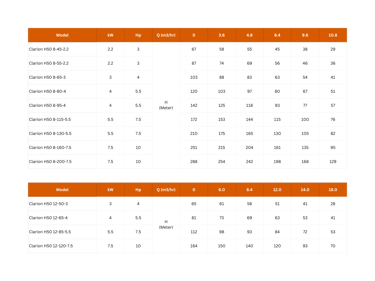

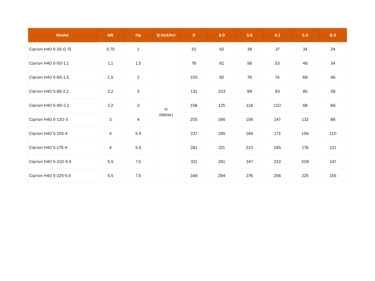

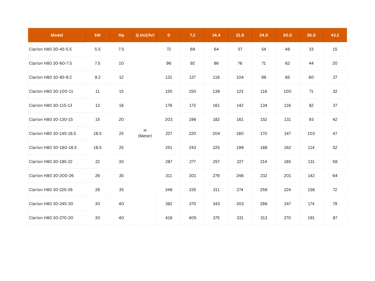

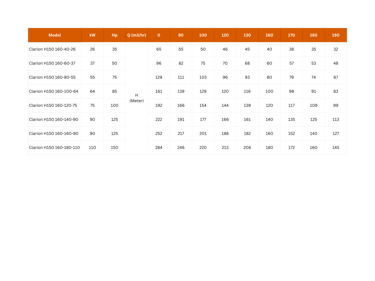

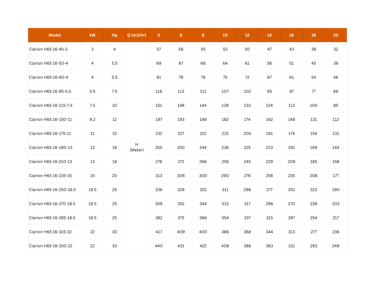

Explore our most commonly supplied Clarion™ pump configurations. Each model is engineered for optimal performance across specific flow and head requirements.

• H125 – 192 mm

• H150 – 236 mm
